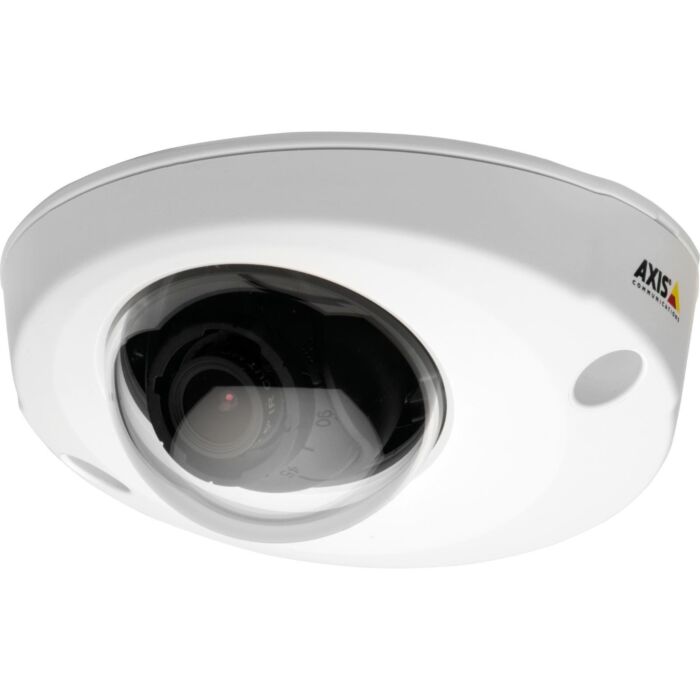

AXIS P3904-R Mk II Network Camera
Unlocking Precision and Durability: AXIS P3904-R Mk II Network Camera
In the realm of industrial security cameras, the AXIS P3904-R Mk II stands out as a pinnacle of innovation, specifically tailored for mobile video surveillance in vehicles like buses, trains, and emergency vehicles. This compact and rugged network camera doesn't just meet industry standards; it exceeds them. Built to comply with EN50155:2017 Class OT2/ST2 standards, the camera ensures reliability in challenging environments, withstanding vibrations, shocks, temperature fluctuations, and even dust and water.
The AXIS P3904-R Mk II goes beyond durability; it delivers exceptional image quality. With onboard HDTV 720p surveillance, WDR – Forensic Capture, and Lightfinder technology, it excels in capturing clear images in dynamic lighting conditions, even in near darkness. The inclusion of Traffic Light mode enhances color delineation in challenging scenes. Moreover, Axis Zipstream technology reduces storage and bandwidth requirements by up to 50%, without compromising forensic detail.
Installation is a breeze with the camera's user-friendly design and a lens tool for achieving the desired field of view. The versatility of optional outdoor housing, M12 or RJ45 connectors, and compatibility with various lens options make it adaptable to diverse configurations. Upgradeable from earlier versions, the AXIS P3904-R Mk II represents the cutting edge of industrial security cameras, ensuring optimal performance in demanding onboard conditions.
Features:
- EN50155 Compliance
- Onboard HDTV 720p
- WDR and Lightfinder Technology
- Traffic Light Mode
- Rugged and Compact Design
- Axis Zipstream for Storage Efficiency
- Vibration and Shock Resistance
- Easy Installation and Upgrades
Applications:
|
Models |
AXIS P3904-R Mk II RJ45 |
|
Image Sensor |
1/2.9" progressive scan RGB CMOS |
|
Lens |
3.6 mm, F2.0 |
|
Light Sensitivity |
HDTV 720p 25/30 fps with Lightfinder |
|
Shutter Speed |
1/32500 s to 2 s |
|
Camera Angle Adjustment |
Pan ±30°, tilt 15 - 90°, rotation ±175° |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles Motion JPEG |
|
Resolutions |
1280x720 to 160x90 |
|
Frame Rate |
25/30 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264 and Motion JPEG |
|
Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, exposure zones, fine tuning of behavior at low light, rotation: 0°, 90°, 180°, 270° including Corridor Format, text and image overlay, 20 individual privacy mask, mirroring of images, Traffic Light mode |
|
Pan/Tilt/Zoom |
Digital PTZ, preset positions, guard tour, control queue |
|
Security |
Password protection, IP address filtering, HTTPSa encryption, network access control, digest authentication, user access log, centralized certificate management |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPSa, SSL/TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org |
|
Event Conditions |
Analytics, time scheduled, edge storage events |
|
Event Actions |
Record video: SD card and network share |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Pixel counter |
|
Applications |
Included |
|
Casing |
Aluminum and polycarbonate casing |
|
Mounting |
Inside vehicles and rolling stock |
|
Memory |
512 MB RAM, 256 MB Flash |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 2.9 W, max 3.6 W |
|
Connectors |
RJ45: male, 10BASE-T/100BASE-TX |
|
Storage |
Support for microSD/microSDHC/microSDXC card and encryption Support for recording to network-attached storage (NAS) |
|
Operating Conditions |
Normal: -40 °C to 60 °C (-40 °F to 140 °F) Maximum (intermittent): 70 °C (158 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, IEC/EN/UL 62368-1, EN 45545, UN ECE R118, parts of NFPA 130d, IS 13252 Environment IEC/EN 61373 Category 1 Class B, IEC/EN 60529 IP66/67, NEMA 250 Type 4X, IEC/EN 62262 IK08, Network NIST SP500–267 |
|
Dimensions |
Height: 49 mm (1 15/16 in) ø 109 mm (4 3/16 in) |
|
Weight |
RJ45: 241 g (0.53 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, top cover tool, lens tool, Allen key Resistorx® |
|
Optional Accessories |
AXIS TP3201-E Recessed Mount, AXIS TP3103-E Pendant Kit, AXIS T8355 Digital Microphone 3.5 mm, AXIS TP3824-E Dome Clear/Smoked, AXIS TP3821-E Casing Black/White, |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
