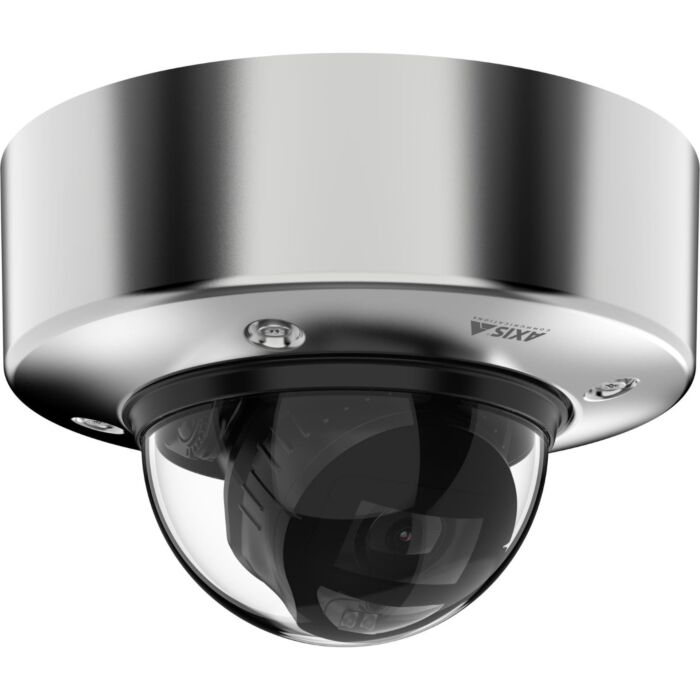

AXIS P3268-SLVE Dome Camera
AXIS P3268-SLVE Dome Camera: Robust Security with Deep Learning Analytics
Unveil the power of the AXIS P3268-SLVE Dome Camera, a cutting-edge solution in the industrial security camera domain. Enclosed in a marine-grade stainless steel (SS 316L) casing, this camera is not only DNV-certified for maritime environments but also NSF/ANSI Standard 169 certified for use in food processing facilities. Its robust construction withstands the corrosive effects of seawater and cleaning chemicals, making it ideal for challenging environments.
This maintenance-friendly camera offers excellent image quality in 4K with deep learning analytics support. Featuring an 8 MP resolution at up to 30 fps, a wide 100° field of view, Lightfinder 2.0, Forensic WDR, and OptimizedIR technologies ensure optimal performance in various lighting conditions, even complete darkness.
Built on ARTPEC-8 with a deep learning processing unit (DLPU), this high-performance camera enables edge analytics, allowing for improved data collection and analysis on the edge. Supporting ACAP version 4, it provides customization with tailor-made applications based on deep learning. Axis Edge Vault, a hardware-based cybersecurity platform, ensures device integrity and protection against unauthorized access.
Features:
- 8 MP Resolution
- Marine-grade Stainless Steel Casing
- Forensic WDR and OptimizedIR
- Deep Learning Analytics (DLPU)
- NSF/ANSI Standard 169 and DNV Certified
- Weather-proof (IP66/67/68) and Impact-resistant (IK11-rated)
- Wide 100° Field of View
- AXIS Edge Vault Cybersecurity Platform
Applications:
|
Image Sensor |
1/1.8" progressive scan RGB CMOS |
|
Lens |
Varifocal, 4.3–8.6 mm, F1.5 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Forensic WDR and Lightfinder 2.0: |
|
Shutter Time |
1/8500 s to 1/5 s |
|
Camera Angle Adjustment |
Pan ±190°, tilt -10 to +80°, rotation ±190° |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8192 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
3840x2160 to 160x90 |
|
Frame Rate |
25/30 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264 and Motion JPEG |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask |
|
Pan/Tilt/Zoom |
Digital PTZ, Preset positions |
|
Audio Streaming |
Audio in, simplex, two-way audio via edge-to-edge technology |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, automatic gain control, network speaker pairing |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
|
Onscreen Controls |
Day/night shift |
|
Event Conditions |
Analytics, external input, supervised external input, virtual inputs through API Call: state, state change |
|
Event Actions |
Overlay text, external output activation, zoom preset, day/night mode, flash status LED, use lights, set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call |
|
Built-in installation aids |
Remote zoom and focus, straighten image, pixel counter, level grid |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios Metadata visualized with trajectories and color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Documentation |
AXIS OS Hardening Guide |
|
Casing |
IP66-, NEMA 4X- and IK10-rated |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount |
|
Sustainability |
PVC free, BFR/CFR free, 6.4% bioplastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 5.5 W, max 11.2 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
-40 °C to 50 °C (-40 °F to 122 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10 Network NIST SP500–267 |
|
Dimensions |
Height: 107 mm (4.21 in) ø 149 mm (5.87 in) |
|
Weight |
900 g (2.0 lb.) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 screw bit, terminal block connectors, cable gaskets, connector guard, weathershield |
|
Optional Accessories |
AXIS TP3201-E Recessed Mount, AXIS TP3103-E Pendant Kit, AXIS T8355 Digital Microphone 3.5 mm, AXIS TP3824-E Dome Clear/Smoked, AXIS TP3821-E Casing Black/White, |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
