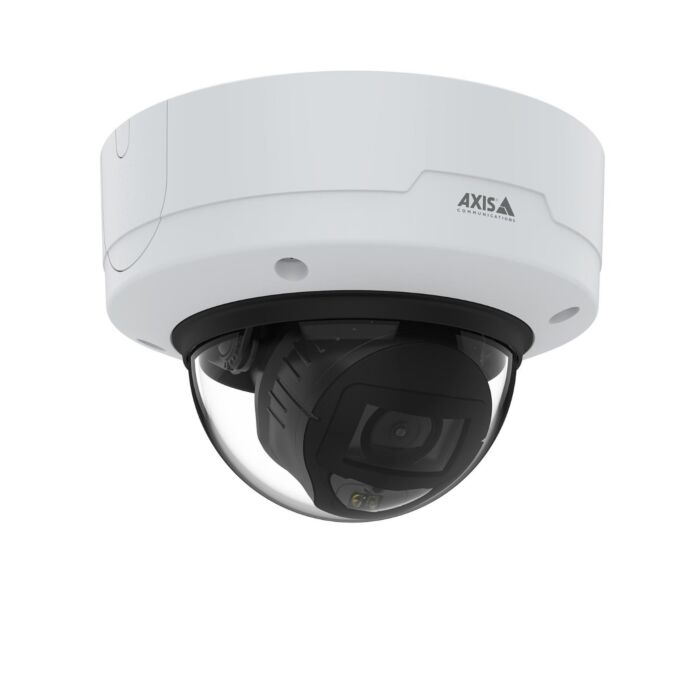

AXIS P3268-LV Ceiling Angled Right

AXIS P3268-LV Dome Camera

AXIS P3268-SLVE Ceiling Angled Right

AXIS P3268-SLVE Dome Camera

AXIS P3268-LVE Dome Camera

Elevate your surveillance with AXIS P3268-LVE. Experience 8 MP brilliance, 4K clarity, and advanced deep learning analytics. Maximize security with built-in cybersecurity features. Upgrade your industrial surveillance today.
SKU
P3268-LVE

Discover the Power of AXIS P3268-LVE Dome Camera

In the realm of industrial security cameras, the AXIS P3268-LVE stands as a pinnacle of excellence. Boasting an 8 MP resolution, this outdoor dome camera is equipped with IR capabilities and advanced deep learning analytics. The camera's 4K image quality, enhanced by Lightfinder 2.0 and Forensic WDR, ensures impeccable footage even in challenging lighting conditions or near darkness. With OptimizedIR, it delivers clear visuals in complete darkness up to 40 meters.

Powered by the latest Axis system-on-chip (SoC), the AXIS P3268-LVE incorporates a deep learning processing unit for on-the-edge analytics. The camera's versatility shines with a varifocal lens, remote zoom, and auto-focus capabilities for adaptable surveillance. Audio and I/O connectivity facilitate integration with peripheral equipment, extending the camera's value. Robust and outdoor-ready, this IK10-rated camera prioritizes cybersecurity, featuring built-in measures like Axis Edge Vault to protect against unauthorized access.

Features:

  • 8 MP Resolution
  • 4K Image Quality with Lightfinder 2.0 and Forensic WDR
  • OptimizedIR Technology for Clear Footage in Darkness
  • Deep Learning Analytics with ARTPEC-8 SoC
  • Varifocal Lens with Remote Zoom and Auto-focus
  • Audio and I/O Connectivity
  • Built-in Cybersecurity Features

Applications:

  • Industrial Surveillance
  • Machine Vision
  • Outdoor Security
  • Deep Learning Analytics
  • Perimeter Monitoring
  • Critical Infrastructure Protection


Image Sensor

1/1.8" progressive scan RGB CMOS

Lens

Varifocal, 4.3–8.6 mm, F1.5
Horizontal field of view: 100°–53°
Vertical field of view: 54°–30°
Minimum focus distance: 50 cm (20 in)
IR corrected, remote zoom and focus, P-Iris control

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

With Forensic WDR and Lightfinder 2.0:
Color: 0.14 lux at 50 IRE, F1.5
B/W: 0 lux at 50 IRE, F1.5

Shutter Time

1/8500 s to 1/5 s

Camera Angle Adjustment

Pan ±190°, tilt -10 to +80°, rotation ±190°

Model

ARTPEC-8

Memory

2048 MB RAM, 8192 MB Flash

Compute Capabilities

Deep learning processing unit (DLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG

Resolutions

3840x2160 to 160x90

Frame Rate

25/30 fps with power line frequency 50/60 Hz

Video Streaming

Multiple, individually configurable streams in H.264 and Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Low latency mode
Video streaming indicator

Multi-view Streaming

Up to 2 individually cropped out view areas in full frame rate

Image Settings

Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask

Pan/Tilt/Zoom

Digital PTZ, Preset positions

Audio Streaming

Audio in, simplex, two-way audio via edge-to-edge technology

Audio Encoding

24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate

Audio Input/Output

External microphone input, line input, digital input with ring power, automatic gain control, network speaker pairing

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org

Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX

Onscreen Controls

Day/night shift
Defogging
Wide dynamic range
Video streaming indicator
IR Illumination

Event Conditions

Analytics, external input, supervised external input, virtual inputs through API

Call: state, state change
Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active, casing open
Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected
I/O: digital input, manual trigger, virtual input
MQTT: subcribe
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, live stream open, tampering

Event Actions

Overlay text, external output activation, zoom preset, day/night mode, flash status LED, use lights, set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call
I/O: toggle I/O once, toggle I/O while the rule is active
MQTT: publish
Notification: email, HTTP, HTTPS, TCP, and SNMP trap
Pre- and post-alarm video or image buffering for recording or upload
Record video: SD card and network share
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email

Built-in installation aids

Remote zoom and focus, straighten image, pixel counter, level grid

AXIS Object Analytics

Object classes: humans, vehicles (types: cars, buses, trucks, bikes)

Trigger conditions: line crossing, object in area, time in areaBETA

Up to 10 scenarios

Metadata visualized with trajectories and color-coded bounding boxes

Polygon include/exclude areas

Perspective configuration

ONVIF Motion Alarm event

Metadata

Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Attributes: Vehicle color, upper/lower clothing color, confidence, position
Event data: Producer reference, scenarios, trigger conditions

Applications

Included
AXIS Object Analytics
AXIS Live Privacy Shield
AXIS Video Motion Detection, active tampering alarm, audio detection

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)

Network Security

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Documentation

AXIS OS Hardening Guide
Axis Vulnerability Management Policy
Axis Security Development Model
AXIS OS Software Bill of Material (SBOM)

Casing

IP66-, NEMA 4X- and IK10-rated
Polycarbonate hard coated dome
Polycarbonate casing and weathershield
Color: white NCS S 1002-B
For repainting instructions, go to the product’s support page

Mounting

Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount

Sustainability

PVC free, BFR/CFR free, 6.4% bioplastics

Power

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 5.5 W, max 11.2 W

Connectors

RJ45 10BASE-T/100BASE-TX PoE
I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA)
Audio: 3.5 mm mic/line in

IR Illumination

OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene

Storage

Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS)

Operating Conditions

-40 °C to 50 °C (-40 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F)
Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Humidity 10–100% RH (condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)

Approvals

EMC

EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KC KN32 Class A, KC KN35
USA: FCC Part 15 Subpart B Class A
Railway: IEC 62236-4

Safety

CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252

Environment

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10

Network

NIST SP500–267

Dimensions

Height: 107 mm (4.21 in)

ø 149 mm (5.87 in)

Weight

900 g (2.0 lb.)

Included Accessories

Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 screw bit, terminal block connectors, cable gaskets, connector guard, weathershield

Optional Accessories

AXIS TP3201-E Recessed Mount, AXIS TP3103-E Pendant Kit, AXIS T8355 Digital Microphone 3.5 mm, AXIS TP3824-E Dome Clear/Smoked, AXIS TP3821-E Casing Black/White,
AXIS Surveillance Cards

Video Management Software

AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Warranty

5–year warranty
