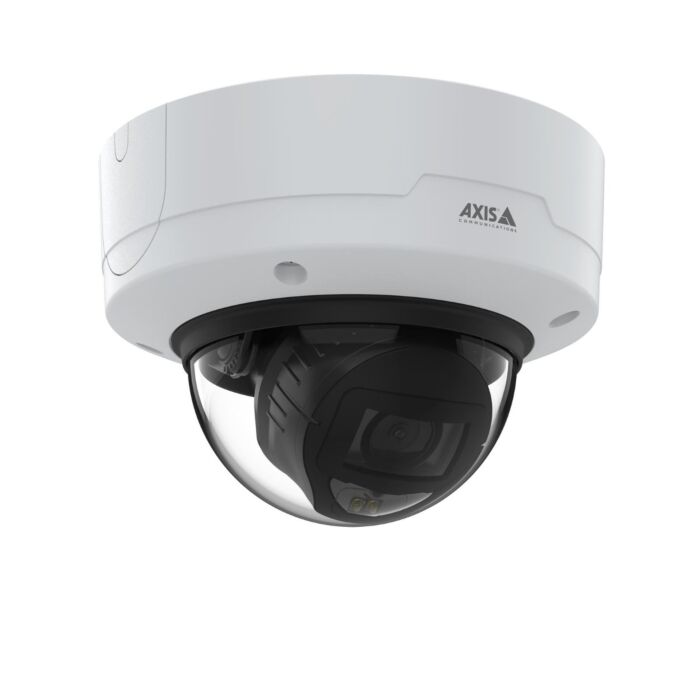

AXIS P3268-LV Dome Camera
Unleashing the Power of AXIS P3268-LV Dome Camera
Discover the pinnacle of industrial surveillance with the AXIS P3268-LV Dome Camera. Boasting exceptional 4K image quality, this camera redefines clarity and detail in challenging environments. Equipped with Lightfinder 2.0 and Forensic WDR, it captures true colors and sharp details even in low light conditions. The OptimizedIR feature ensures clear footage in complete darkness up to 40 meters.
Powered by the latest Axis system-on-chip (SoC), the P3268-LV integrates deep learning analytics on the edge. The deep learning processing unit (DLPU) enables enhanced data processing and storage capabilities, facilitating detection and classification of humans, vehicles, and specific vehicle types through AXIS Object Analytics. With support for ACAP Version 4, you can customize applications based on deep learning.
Installation is a breeze with the varifocal lens offering remote zoom and auto focus. Audio and I/O connectivity allow seamless integration of peripheral equipment. Cybersecurity features, including Axis Edge Vault, fortify the system against unauthorized access. Versatile, high-performance, and secure – AXIS P3268-LV is the ultimate choice for industrial and machine vision applications.
Features:
- Brilliant 4K Image Quality
- Forensic WDR and OptimizedIR
- Deep Learning Analytics (DLPU)
- Audio and I/O Connectivity
- Varifocal Lens with Remote Zoom
- AXIS Object Analytics
- Cybersecurity Features (Axis Edge Vault)
Applications:
|
Image Sensor |
1/1.8" progressive scan RGB CMOS |
|
Lens |
Varifocal, 4.3–8.6 mm, F1.5 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Forensic WDR and Lightfinder 2.0: |
|
Shutter Time |
1/8500 s to 1/5 s |
|
Camera Angle Adjustment |
Pan ±190°, tilt -10 to +80°, rotation ±190° |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8192 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
3840x2160 to 160x90 |
|
Frame Rate |
25/30 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264 and Motion JPEG |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask |
|
Pan/Tilt/Zoom |
Digital PTZ, Preset positions |
|
Audio Streaming |
Audio in, simplex, two-way audio via edge-to-edge technology |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, automatic gain control, network speaker pairing |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
|
Onscreen Controls |
Day/night shift |
|
Event Conditions |
Analytics, external input, supervised external input, virtual inputs through API ACall: state, state change |
|
Event Actions |
Overlay text, external output activation, zoom preset, day/night mode, flash status LED, use lights, set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call |
|
Built-in installation aids |
Remote zoom and focus, straighten image, pixel counter, level grid |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios Metadata visualized with trajectories and color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP52- and IK10-rated |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount |
|
Sustainability |
PVC free, BFR/CFR free, 7% recycled plastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 5.5 W, max 10.0 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
0 °C to 50 °C (32 °F to 122 °F) Humidity 5–95% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
|
Approvals |
EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10 Network NIST SP500–267 |
|
Dimensions |
Height: 107 mm (4.21 in) ø 149 mm (5.87 in) |
|
Weight |
800 g (1.8 lb.) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key, terminal block connectors, cable gaskets, connector guard |
|
Optional Accessories |
AXIS TP3201 Recessed Mount, AXIS TP3203 Recessed Mount, AXIS TP3906 Microphone Kit, AXIS T8355 Digital Microphone 3.5 mm, AXIS TP3824-E Dome Clear/Smoked, AXIS TP3821-E Casing Black/White, AXIS Surveillance Cards |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
