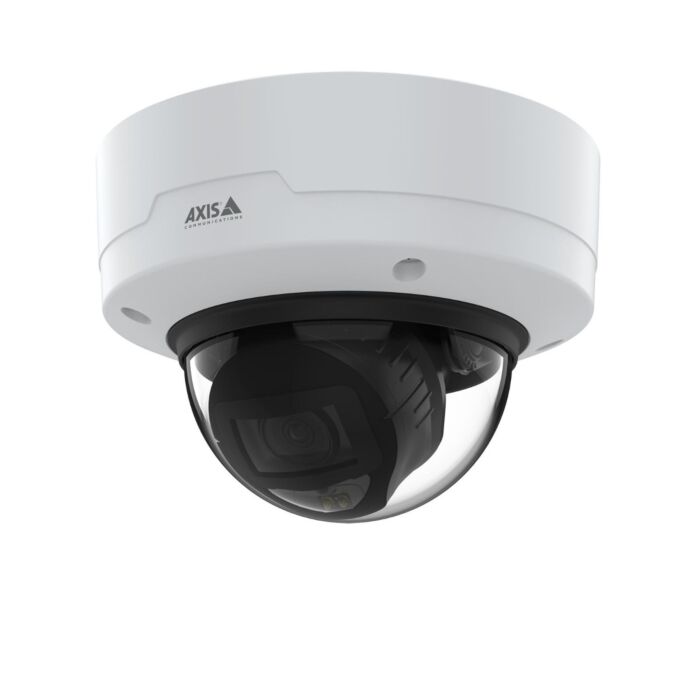

AXIS P3267-LV Dome Camera
Unveiling the Power of AXIS P3267-LV Dome Camera
In the realm of industrial security cameras, the AXIS P3267-LV stands as a technological marvel. This 5 MP dome camera, driven by the latest Axis system-on-chip, delivers exceptional image quality with features like Lightfinder 2.0 and Forensic WDR, ensuring true colors and intricate details even in challenging lighting conditions. Its OptimizedIR extends visibility up to 40 meters in complete darkness.
What sets this camera apart is its deep learning analytics on the edge, thanks to the incorporated deep learning processing unit (DLPU). With AXIS Object Analytics, it offers precise detection and classification of humans and vehicles, customized to specific needs. The camera's versatility shines through its varifocal lens, audio connectivity, and easy integration of peripheral equipment.
As a testament to its commitment to security, AXIS P3267-LV boasts built-in cybersecurity features like Axis Edge Vault, safeguarding against unauthorized access. This dome camera is not just a surveillance tool; it's a comprehensive solution for industrial and machine vision applications, empowering businesses with unparalleled surveillance capabilities.
Features:
- 5 MP Image Quality
- Deep Learning Analytics
- Varifocal Lens with Remote Zoom
- Lightfinder 2.0 and Forensic WDR
- OptimizedIR for Low-Light Conditions
- Audio and I/O Connectivity
- Built-in Cybersecurity Features
Applications:
- Industrial Surveillance
- Machine Vision Systems
- Perimeter Security
- Critical Infrastructure Monitoring
- Access Control
- Intrusion Detection
- Traffic Management
- Custom Deep Learning Applications
|
Image Sensor |
1/2.7" progressive scan RGB CMOS |
|
Lens |
Varifocal, 3–8 mm, F1.3 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Forensic WDR and Lightfinder 2.0: |
|
Shutter Time |
1/33500 s to 1/5 s |
|
Camera Angle Adjustment |
Pan ±190°, tilt -10 to +80°, rotation ±190° |
|
Model |
ARTPEC-8 |
|
Memory |
2048 MB RAM, 8192 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
2592x1944 to 160x90 |
|
Frame Rate |
25/30 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264 and Motion JPEG |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask |
|
Pan/Tilt/Zoom |
Digital PTZ, Preset positions |
|
Audio Streaming |
Audio in, simplex, two-way audio via edge-to-edge technology |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, automatic gain control, network speaker pairing |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
|
Onscreen Controls |
Day/night shift |
|
Event Conditions |
Analytics, external input, supervised external input, virtual inputs through API ACall: state, state change |
|
Event Actions |
Overlay text, external output activation, zoom preset, day/night mode, flash status LED, use lights, set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call |
|
Built-in installation aids |
Remote zoom and focus, straighten image, pixel counter, level grid |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios Metadata visualized with trajectories and color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP52- and IK10-rated |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount |
|
Sustainability |
PVC free, BFR/CFR free, 7% recycled plastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 6.4 W, max 9.0 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
0 °C to 50 °C (32 °F to 122 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
|
Approvals |
EMC EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10 Network NIST SP500–267 |
|
Dimensions |
Height: 107 mm (4.21 in) ø 149 mm (5.87 in) |
|
Weight |
800 g (1.8 lb.) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key, terminal block connectors, cable gaskets, connector guard |
|
Optional Accessories |
AXIS TP3201 Recessed Mount, AXIS TP3203 Recessed Mount, AXIS TP3906 Microphone Kit, AXIS T8355 Digital Microphone 3.5 mm, AXIS TP3824-E Dome Clear/Smoked, AXIS TP3821-E Casing Black/White, AXIS Surveillance Cards |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
