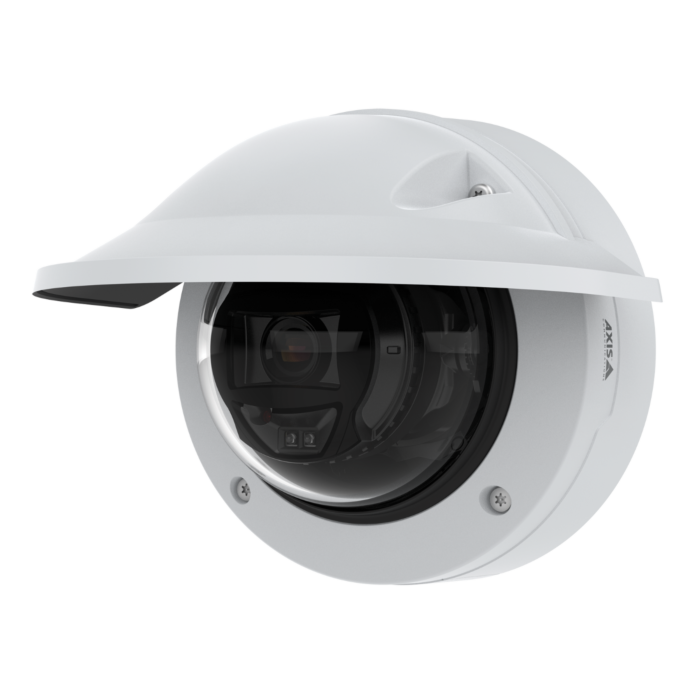

AXIS P3265-LVE Dome Camera
Based on the latest Axis system-on-chip (SoC), AXIS P3265-LVE offers excellent image quality and advanced analytics based on deep learning on the edge. Packed with cybersecurity features, this unobtrusive fixed dome is ideal for versatile surveillance.
AXIS P3265-LVE delivers outstanding image quality and forensic details in 2 MP at up to 60 fps. It’s available in two variants with a choice of lenses. The 9 mm lens offers wide-area surveillance ideal for large open areas, and the 22 mm tele lens is ideal for surveillance from a distance generating accurate images needed for advanced analytics. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. Furthermore, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting.
Based on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.
Features:
- Excellent image quality in 2 MP
- Lightfinder 2.0, Forensic WDR, and OptimizedIR
- Analytics with deep learning
- Built-in cybersecurity features
- Available with wide or tele lens
Applications:
- Industrial Surveillance
- Machine Vision Analytics
- Outdoor Security Monitoring
- Forensic Analysis
- Perimeter Protection
- Critical Infrastructure Surveillance
- Long-Distance Analytics
- Access Control Integration
- Facility Security Management
- Retail Loss Prevention
|
Models |
AXIS P3265-LVE 9 mm AXIS P3265-LVE 22 mm |
|
Image Sensor |
1/2.8" progressive scan RGB CMOS |
|
Lens |
9 mm: |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Forensic WDR and Lightfinder 2.0: |
|
Shutter Speed |
1/66500 s to 2 s |
|
Camera Angle Adjustment |
9 mm: Pan ±180°, tilt ±75°, rotation ±175° |
|
Model |
ARTPEC-8 |
|
Memory |
1024 MB RAM, 8192 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
1920x1080 to 160x90 |
|
Frame Rate |
With WDR: 25/30 fps with power line frequency 50/60 Hz Without WDR: 50/60 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask |
|
Pan/Tilt/Zoom |
Digital PTZ, Preset positions |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, line output, automatic gain control |
|
Security |
Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
|
Supported Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
|
Onscreen Controls |
Day/night shift Defogging Wide dynamic range Video streaming indicator IR illumination |
|
Event Conditions |
Analytics, external input, supervised external input, virtual inputs through API Audio: audio clip playing, audio clip currently playing Call: state, state change Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: digital input, manual trigger, virtual input MQTT: subcribe Scheduled and recurring: schedule Video: average bitrate degradation, day-night mode, live stream open, tampering |
|
Event Actions |
Overlay text, external output activation, play audio clip, zoom preset, day/night mode, flash status LED, use lights, set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call I/O: toggle I/O once, toggle I/O while the rule is active MQTT: publish Notification: email, HTTP, HTTPS, TCP, and SNMP trap Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Remote zoom and focus, straighten image, pixel counter, level grid |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios Metadata visualized with trajectories and color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
|
Applications |
Included AXIS Object Analytics AXIS Video Motion Detection, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
|
Casing |
IP66-, NEMA 4X- and IK10-rated Polycarbonate hard coated dome Polycarbonate casing and weathershield Color: white NCS S 1002-B |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount ¼”-20 UNC tripod screw thread 9 mm: ¼”-20 UNC tripod screw thread |
|
Sustainability |
9 mm: PVC free, 4.1% recycled plastics 22 mm: PVC free, BFR/CFR free, 6.5% bioplastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 4.8 W, max 10.7 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA) Audio 9 mm: 4-pin 2.5 mm (0.098 in) terminal block for audio in and out, 22 mm: 3.5 mm mic/line in |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft)/45 m (148 ft) (9 mm/22 mm) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS |
|
Operating Conditions |
-40 °C to 50 °C (-40 °F to 122 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F) Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Humidity 10–100% RH (condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
|
Approvals |
EMC EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10 Network NIST SP500–267 |
|
Dimensions |
Without weathershield: Height: 104 mm (4.09 in)/107 mm (4.21 in) (9 mm/22 mm) ø 149 mm (5.87 in) |
|
Weight |
With weathershield: 800 g (1.8 lb)/900 g (2.0 lb) (9 mm/22 mm) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key (9 mm), RESISTORX® T20 screw bit (22 mm), terminal block connectors, cable gaskets, connector guard, weathershield |
|
Optional Accessories |
AXIS TP3201 Recessed Mount, AXIS T94T01D Pendant Kit, AXIS T94M01D Pendant Kit, AXIS T8355 Digital Microphone 3.5 mm, AXIS ACI Conduit Adapters, smoked dome, black casing 9 mm: AXIS Dome Intrusion Switch C, AXIS TP3804-E Metal Casing White |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
