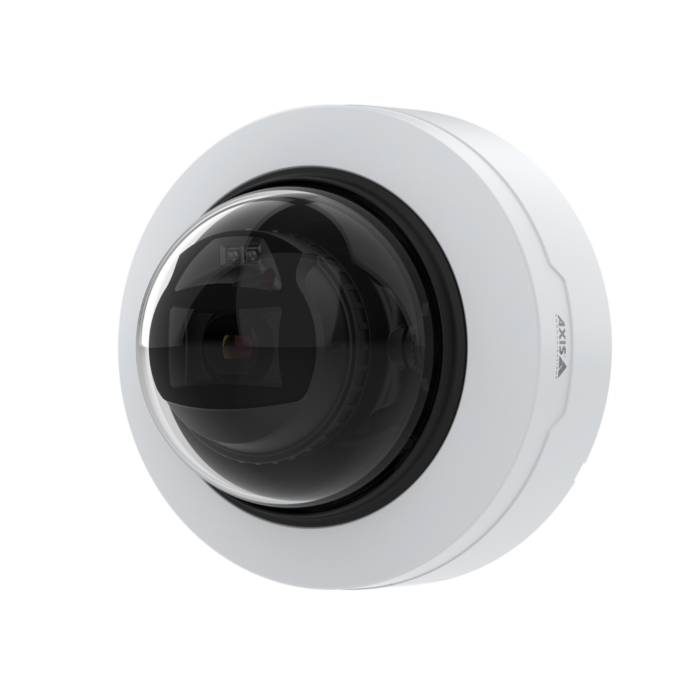

AXIS P3265-LV Dome Camera

Experience unparalleled surveillance with AXIS P3265-LV Dome Camera. Advanced analytics, 2 MP clarity, and cybersecurity features. Elevate your security now!
SKU
P3265-LV

AXIS P3265-LV delivers outstanding image quality and forensic details in 2 MP. Including a varifocal 9 mm lens for wide-area surveillance, it offers a field of view of 100-36 degrees and up to 60 fps at full frame rate. Thanks to Lightfinder 2.0 and Forensic WDR, it delivers true colors and great detail in challenging light or near darkness. And, with OptimizedIR, you’ll enjoy sharp and clear footage in complete darkness up to 40 m (130 ft) without the need for extra lighting. Furthermore, Axis Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements without compromising image quality.

Based on ARTPEC-8, the latest Axis system-on-chip (SoC), this high-performance camera includes a deep learning processing unit (DLPU). This enables improved processing and storage capabilities allowing you to collect and analyze even more data than before—on the edge. Thanks to AXIS Object Analytics, it offers detection and classification of humans, vehicles, and types of vehicles—all tailored to your specific needs. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge.

This easy-to-install dome camera is designed to blend into any environment. Featuring a varifocal lens with remote zoom and auto focus capabilities, it can be adapted for close-ups and overviews without the need for hands-on fine tuning. Featuring audio and I/O connectivity you can integrate peripheral equipment for instance a microphone to extend the value of your system. Furthermore, this powerful camera is packed with built-in cybersecurity features to prevent unauthorized access and safeguard your system. For instance, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.

Features:

  • Excellent image quality in 2 MP
  • Lightfinder 2.0, Forensic WDR, and OptimizedIR
  • Analytics with deep learning
  • Audio and I/O connectivity
  • Built-in cybersecurity features

Applications:

  • Industrial Security
  • Machine Vision Systems
  • Versatile Surveillance
  • Close-ups and Overviews
  • Challenging Lighting Conditions
  • Critical Infrastructure Protection



Image Sensor

1/2.8" progressive scan RGB CMOS

Lens

Varifocal, 3.4–8.9 mm, F1.8
Horizontal field of view: 100°-36°
Vertical field of view: 53°-20°
Minimum focus distance: 50 cm (20 in)
IR corrected, remote zoom and focus, P-Iris control

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

With Forensic WDR and Lightfinder 2.0:
Color: 0.1 lux at 50 IRE, F1.8
B/W: 0 lux at 50 IRE, F1.8

Shutter Time

1/66500 s to 2 s

Camera Angle Adjustment

Pan ±180°, tilt ±75°, rotation ±175°

Model

ARTPEC-8

Memory

1024 MB RAM, 8192 MB Flash

Compute Capabilities

Deep learning processing unit (DLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG

Resolutions

1920x1080 to 160x90

Frame Rate

With WDR: 25/30 fps with power line frequency 50/60 Hz

Without WDR: 50/60 fps with power line frequency 50/60 Hz

Video Streaming

Multiple, individually configurable streams in H.264 and Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/MBR H.264
Video streaming indicator

Multi-view Streaming

Up to 2 individually cropped out view areas in full frame rate

Image Settings

Saturation, contrast, brightness, sharpness, Forensic WDR: up to 120 dB depending on scene, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, compression, rotation: 0°, 90°, 180°, 270° including Corridor Format, mirroring, dynamic text and image overlay, privacy masks, polygon privacy mask

Pan/Tilt/Zoom

Digital PTZ, Preset positions

Audio Streaming

Two-way, full duplex

Audio Encoding

24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate

Audio Input/Output

External microphone input, line input, digital input with ring power, line output, automatic gain control

Security

Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified)

Supported Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org

Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX

Onscreen Controls

Day/night shift

Defogging

Wide dynamic range

Video streaming indicator

IR illumination

Event Conditions

Analytics, external input, supervised external input, virtual inputs through API

Audio: audio clip playing, audio clip currently playing Call: state, state change

Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active

Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected

I/O: digital input, manual trigger, virtual input

MQTT: subcribe

Scheduled and recurring: schedule

Video: average bitrate degradation, day-night mode, live stream open, tampering

Event Actions

Overlay text, external output activation, play audio clip, zoom preset, day/night mode, flash status LED, use lights, set defog mode, set WDR mode Calls: end SIP call, make SIP call, answer call I/O: toggle I/O once, toggle I/O while the rule is active MQTT: publish Notification: email, HTTP, HTTPS, TCP, and SNMP trap Pre- and post-alarm video or image buffering for recording or upload Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email

Data Streaming

Event Data

Built-in installation aids

Remote zoom and focus, straighten image, pixel counter, level grid

AXIS Object Analytics

Object classes: humans, vehicles (types: cars, buses, trucks, bikes)

Trigger conditions: line crossing, object in area, time in areaBETA

Up to 10 scenarios

Metadata visualized with trajectories and color-coded bounding boxes

Polygon include/exclude areas

Perspective configuration

ONVIF Motion Alarm event

Applications

Included

AXIS Object Analytics

AXIS Video Motion Detection, active tampering alarm, audio detection

Support for AXIS Camera Application Platform enabling installation of third-party applications

Casing

IP52- and IK10-rated Polycarbonate hard coated dome Polycarbonate casing Color: white NCS S 1002-B For repainting instructions, go to the product’s support page.

Mounting

Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount ¼”-20 UNC tripod screw thread

Sustainability

PVC free, BFR/CFR free, 5% recycled plastics

Power

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 4.8 W, max 8.9 W

Connectors

RJ45 10BASE-T/100BASE-TX PoE

I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA)

Audio: 4-pin 2.5 mm (0.098 in) terminal block for audio in and out

IR Illumination

OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene

Storage

Support for microSD/microSDHC/microSDXC card

Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS)

Operating Conditions

0 °C to 50 °C (32 °F to 122 °F)

Humidity 10–85% RH (non-condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)

Humidity 5-95% RH (non-condensing)

Approvals

EMC

EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62236-4, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Safety

CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252

Environment

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 IEC/EN 60529 IP52, IEC/EN 62262 IK10

Network

NIST SP500–267

Dimensions

Height: 103 mm (4.06 in)

ø 149 mm (5.87 in)

Weight

650 g (1.4 lb.)

Included Accessories

Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key, terminal block connectors, cable gaskets, connector guard

Optional Accessories

AXIS TP3201 Recessed Mount,

AXIS TP3202 Recessed Mount,

AXIS T94K01D Pendant Kit,

AXIS Dome Intrusion Switch C,

AXIS T8355 Digital Microphone 3.5 mm,

AXIS TP3901 Microphone Kit,

AXIS ACI Conduit Adapters, smoked dome, black casing

Video Management Software

AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Warranty

5–year warranty
