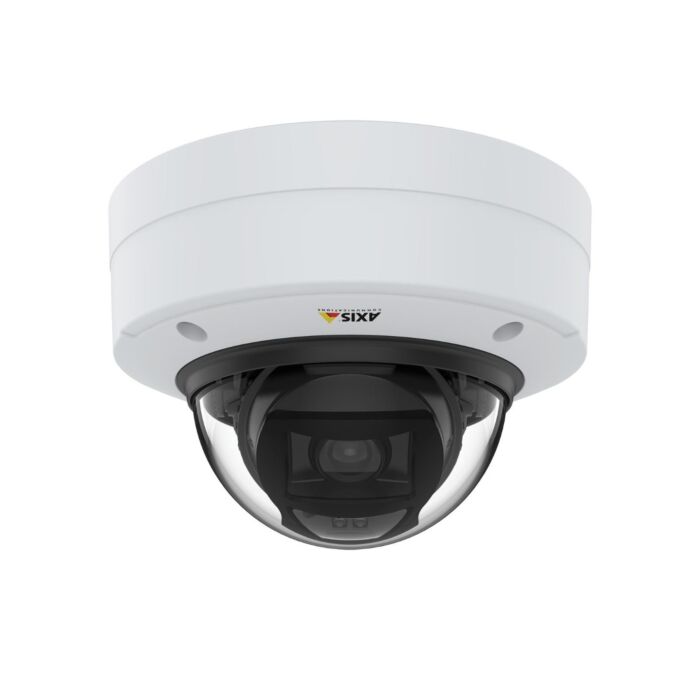

AXIS P3255-LVE Dome Camera
Revolutionary AXIS P3255-LVE Dome Camera: Unleashing the Power of Deep Learning
Welcome to the forefront of industrial security with the AXIS P3255-LVE Dome Camera. Boasting a unique dual chipset, this fixed dome camera sets a new standard for analytics based on deep learning. The innovative AXIS Object Analytics, preinstalled on the camera, enables granular object classification, distinguishing between humans, vehicles, and various vehicle types, minimizing false alarms. With a dual chipset combining Axis ARTPEC and a deep learning processing unit (DLPU), this camera facilitates edge-based processing, eliminating the need for expensive servers. Enjoy real-time processing, scalability, and cost-effectiveness while reducing storage and bandwidth requirements.
Experience 24/7 surveillance excellence with HDTV 1080p resolution, Axis Lightfinder 2.0, Forensic WDR, and OptimizedIR, ensuring clear and detailed images even in challenging lighting conditions. The IK10-rated casing makes it dust and vandal-resistant, offering outdoor-ready security. With built-in security features like Axis Edge Vault, signed firmware, and secure boot, your system remains safeguarded against unauthorized access and malware. AXIS P3255-LVE Dome Camera is your key to advanced security solutions.
Features:
- Dual Chipset for Deep Learning Analytics
- AXIS Object Analytics for Nuanced Object Classification
- Edge-based Processing for Scalability
- HDTV 1080p Resolution with Lightfinder 2.0 and Forensic WDR
- OptimizedIR for Sharp Video in Darkness
- Vandal-resistant IK10-rated Casing
- Outdoor-ready Security with Axis Edge Vault
- Signed Firmware and Secure Boot Technology
Applications:
- Industrial Surveillance
- Machine Vision Analytics
- Security in Challenging Lighting Conditions
- Outdoor Security Solutions
- Object Classification for Reduced False Alarms
|
Image Sensor |
1/2.8" progressive scan RGB CMOS |
|
Lens |
Varifocal, 3.4–8.9 mm, F1.8
|
|
Day and Night |
Automatically removable infrared-cut filter
|
|
Minimum Illumination |
With Forensic WDR and Lightfinder 2.0:
|
|
Shutter Time |
1/66500 s to 2 s
|
|
Camera Angle Adjustment |
Pan ±180°, tilt ±75°, rotation ±175°
|
|
Model |
ARTPEC-7
|
|
Memory |
2048 MB RAM, 1024 MB Flash
|
|
Compute Capabilities |
Deep learning processing unit (DLPU)
|
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main, and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
1920x1080 to 160x90 |
|
Frame Rate |
With WDR: 25/30 fps with power line frequency 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, defogging, Forensic WDR: up to 120 dB depending on scene, barrel distortion correction, fine tuning of low-light behavior, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270°, including Corridor Format |
|
Pan/Tilt/Zoom |
Digital PTZ, Preset positions |
|
Audio Streaming |
full duplex |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, line output, automatic gain control |
|
Security |
IP address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS)a network access control, user access log, centralized certificate management, signed video, Axis Edge Vault, Axis device ID |
|
Supported Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa , HTTP/2, TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX |
|
Event Conditions |
Analytics, external input, supervision of input, edge storage events, virtual inputs through API MQTT subscribe |
|
Event Actions |
Record video: SD card and network share |
|
Built-in installation aids |
Pixel counter, remote focus, remote zoom OptimizedIR with adjustable IR illumination intensity |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Trigger conditions: line crossing, object in area, time in areaBETA Up to 10 scenarios Metadata visualized with trajectories and color-coded bounding boxes Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
|
Applications |
Included AXIS Object Analytics AXIS Video Motion Detection, active tampering alarm, audio detection Support for AXIS Camera Application Platform enabling installation of third-party applications |
|
Casing |
IP66- and NEMA 4X-rated, IK10 impact-resistant polycarbonate casing with hard-coated dome and dehumidifying membrane Encapsulated electronics and captive screws |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount ¼”-20 UNC tripod screw thread |
|
Sustainability |
PVC free |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 7.8 W, max 14.6 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs Range of reach 40 m (130 ft) or more depending on the scene |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-40 °C to 50 °C (-40 °F to 122 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
|
Approvals |
EMC EN 55032 Class A, EN 50121-4, EN 55024, EN 61000-6-1, EN 61000-6-2 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, IEC/EN 62471 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, Network NIST SP500–267 |
|
Dimensions |
Height: 104 mm (4.06 in) ø 149 mm (5.87 in) |
|
Weight |
800 g (1.8 lb.) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill template, RESISTORX® T20 L-key, terminal block connectors, cable gaskets, connector guard |
|
Optional Accessories |
AXIS T94M02L Recessed Mount, AXIS T94T01D Pendant Kit, AXIS Dome Intrusion Switch C, AXIS T6101 Audio and I/O Interface, AXIS T6112 Audio and I/O Interface, AXIS ACI Conduit Adapters, Axis mounts and microphones, smoked dome, black casing |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
5–year warranty |
