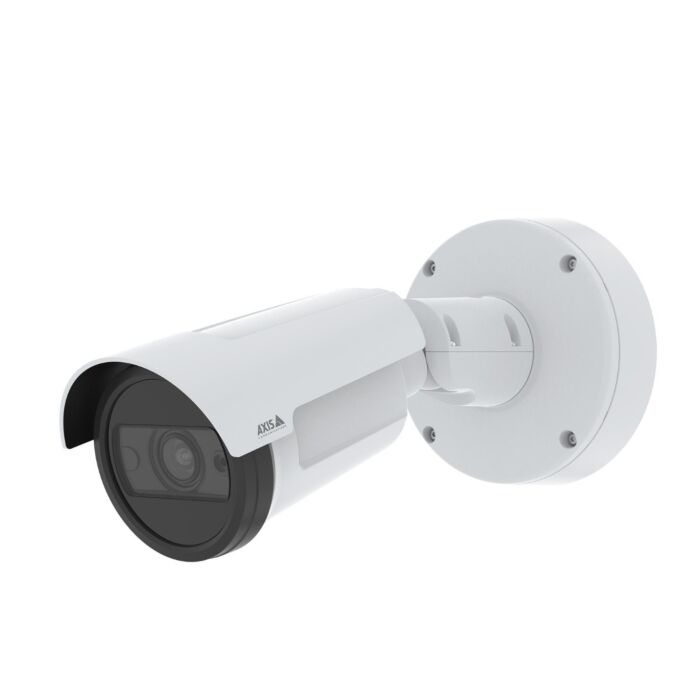

AXIS P1467-LE Wall Angled Left

AXIS P1467-LE Bullet Camera

AXIS P1468-LE Bullet Camera

Experience unparalleled 4K surveillance with AXIS P1468-LE—offering exceptional image quality, advanced analytics, and robust cybersecurity. Safeguard your industrial operations. Invest in AXIS P1468-LE today!
SKU
P1468-LE

Exceptional 4K Surveillance with AXIS P1468-LE

In the world of industrial security cameras, the AXIS P1468-LE stands out as a pinnacle of cutting-edge technology. Delivering fully featured, all-around 4K surveillance, this outdoor-ready camera ensures excellent image quality day or night. Equipped with Lightfinder 2.0 and Forensic WDR, it excels in challenging lighting conditions, providing true colors and forensic detail. The OptimizedIR enables surveillance in total darkness up to 40m without extra lighting, while motion-adaptive exposure reduces motion blur.

Powered by ARTPEC-8, the latest Axis SoC, and featuring a deep learning processing unit, this camera offers enhanced processing and storage capabilities for on-the-edge data collection and analysis. With AXIS Object Analytics, it provides accurate detection and classification of humans and vehicles. Connectivity options include audio and I/O connectivity, and the camera supports both DC power and PoE.

AXIS P1468-LE prioritizes cybersecurity with features like Axis Edge Vault, signed firmware, and secure boot. Its robust design with IP66/67, NEMA 4X, and IK10-ratings ensures protection against dust, rain, snow, and impacts, making it an ideal solution for various industrial and machine vision applications.

Features:

  • 4K resolution at up to 60 fps
  • Lightfinder 2.0 and Forensic WDR
  • OptimizedIR for night surveillance
  • Deep learning processing unit (DLPU)
  • AXIS Object Analytics for precise detection
  • Cybersecurity features: Axis Edge Vault, signed firmware, secure boot
  • Impact and weather-resistant design

Applications:

  • Industrial Surveillance
  • Machine Vision Systems
  • Outdoor Security
  • Critical Infrastructure Protection
  • Perimeter Monitoring
  • Traffic Monitoring
  • Smart City Solutions

Image Sensor

1/1.2” progressive scan RGB CMOS

Lens

Varifocal, 6.2–12.9 mm, F1.6–2.9
Horizontal field of view 108˚–49˚
Vertical field of view 58˚–27˚
Varifocal, remote focus and zoom, P-iris control, IR corrected

Day and Night

Automatically removable infrared-cut filter

Minimum Illumination

With WDR and Lightfinder:
Color: 0.07 lux, at 50 IRE F1.6
B/W: 0.01 lux, at 50 IRE F1.6
0 lux with IR illumination on

Shutter Speed

1/66500 s to 2 s

Model

ARTPEC-8

Memory

2 GB RAM, 8 GB Flash

Compute Capabilities

Deep learning processing unit (DLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG

Resolutions

3840x2160 to 160x90

Frame Rate

With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions
No WDR: Up to 50/60 fps (50/60 Hz) in all resolutions

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Low latency mode
Video streaming indicator

Multi-view Streaming

Up to 8 individually cropped out view areas

Image Settings

Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, motion-adaptive exposure, defogging, barrel distortion correction, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, polygon privacy masks
Scene profiles: forensic, vivid, traffic overview

Pan/Tilt/Zoom

Digital PTZ, digital zoom
Guard tour (max 100), control queue, fixed orientation aid

Audio Streaming

Audio in, simplex, two-way audio via edge-to-edge technology

Audio Encoding

24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726
ADPCM 8 kHz, Opus 8/16/48 kHz
Configurable bit rate

Audio Input/Output

External microphone input or line input, digital audio input, ring power, network speaker pairing

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog
(RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK.
One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org

Onscreen Controls

Video streaming indicator
Day/night shift
Defog
WDR
Privacy Masks
Media Clip
Light Control

Event Conditions

Audio: audio clip playing, audio clip currently playing
Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active
Digital audio: digital signal contains Axis metadata, digital signal has invalid signal rate, digital signal missing, digital signal okay Edge storage: recording ongoing, storage disruption, storage health issues detected
I/O: digital input, manual trigger, virtual input
MQTT subscribe
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, tampering

Event Actions

Day-night mode, overlay text, WDR mode
Audio clips: play, stop
I/O: toggle I/O once, toggle I/O while the rule is active Illumination: use lights, use lights while the rule is active MQTT: publish
Notification: HTTP, HTTPS, TCP and email
Record video: SD card and network share
SNMP traps: send, send while the rule is active
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email

Built-in installation aids

Pixel counter, remote zoom, remote focus, auto rotation

AXIS Object Analysis

Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area
Up to 10 scenarios
Metadata visualized with trajectories, color-coded bounding boxes and tables
Polygon include/exclude areas
Perspective configuration
ONVIF Motion Alarm event

Metadata

Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates
Attributes: Vehicle color, upper/lower clothing color, confidence, position
Event data: Producer reference, scenarios, trigger conditions

Applications

Included
AXIS Live Privacy Shield
AXIS Object Analytics
AXIS Video Motion Detection, active tampering, shock detection, audio detection, orientation aid
Supported
AXIS Perimeter Defender, AXIS Digital Autotracking
Support for AXIS Camera Application Platform enabling installation of third-party applications

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption
Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)

Network Security

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Casing

IP66/IP67-, NEMA 4X-, and IK10-rated casing Polycarbonate blend and aluminium
Color: white NCS S 1002-B
For repainting instructions, go to the product’s support page.

Sustainability

PVC and BFR/CFR free

Power

Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3
Typical: 7.7 W, max 12.95 W
10–28 V DC, typical 7.6 W, max 12.95 W

Connectors

Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T
3.5 mm mic/line in
Terminal block for 1 supervised alarm input and 1 output (12 V DC output, max. load 25 mA)
DC input

IR Illumination

OptimizedIR with power-efficient, long-life 850 nm IR LEDs
Range of reach 40 m (131 ft) or more depending on the scene

Storage

Support for microSD/microSDHC/microSDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Support for recording to network-attached storage (NAS)

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F)
Maximum temperature according to NEMA TS2 (2.2.7): 74 °C (165 °F)
Start-up temperature: -40 °C
Humidity 10–100% RH (condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5-95% RH (non-condensing)

Approvals

EMC

EN 55032 Class A, EN 50121–4, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
USA: FCC Part 15 Subpart B Class A
Railway: IEC 62236-4

Safety

IEC/EN 62368-1, IEC/EN 62471, IS 13252

Environment

IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9)

Network

NIST SP500-267

Cybersecurity

ETSI EN 303 645

Dimensions

Ø132 x 280 mm (Ø5.2 x 11.0 in)

Weight

With weather shield: 1.2 kg (2.65 lb)

Included Accessories

Installation guide, Windows® decoder 1-user license, drill hole template, connector kit, mounting bracket, Torx® L-keys AXIS Weather Shield L

Optional Accessories

AXIS T94F01M J-Box/Gang Box Plate, AXIS T91A47 Pole Mount, AXIS T94P01B Corner Bracket, AXIS T94F01P Conduit Back Box, AXIS Weather Shield K, Axis PoE Midspans

System Tools

AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Warranty

5 year
