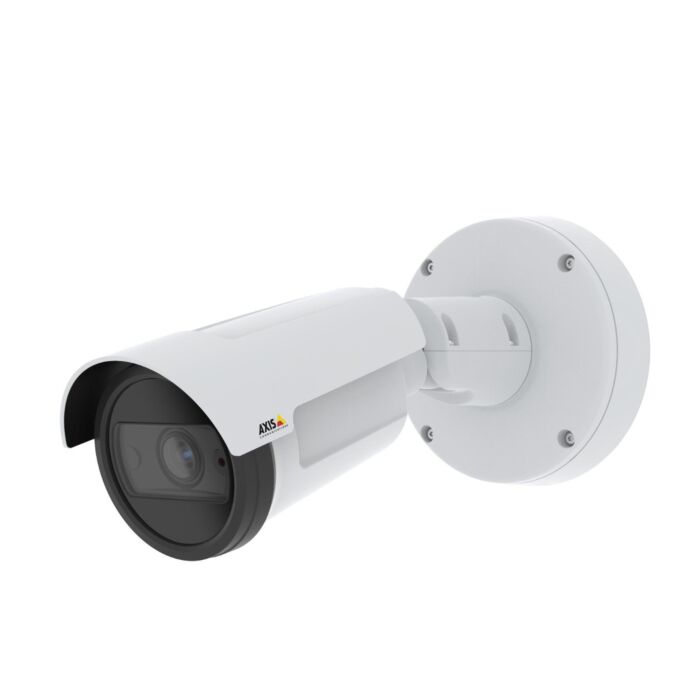

AXIS P1455-LE Network Camera
Unleashing Superior Surveillance: AXIS P1455-LE Network Camera
Welcome to the future of outdoor surveillance with the AXIS P1455-LE Network Camera, a cutting-edge solution that redefines industrial security. This new-generation camera boasts improved imaging, enhanced security features, and efficient video compression. With HDTV 1080p resolution at up to 60 fps, it delivers outstanding image quality, day or night.
Equipped with advanced analytics like AXIS Object Analytics, motion-adaptive exposure, Lightfinder 2.0, Forensic WDR, and OptimizedIR, the AXIS P1455-LE ensures exceptional performance in any lighting conditions. It doesn't just capture images; it intelligently detects and classifies humans and vehicles, providing a new level of precision in surveillance.
Security is paramount, and the AXIS P1455-LE doesn't disappoint. Encased in an IK10-rated, vandal-resistant housing with shock detection, it withstands impacts and prevents defocusing. Axis Edge Vault, signed firmware, and secure boot further fortify your system, ensuring only authorized access and firmware updates.
Whether it's 24/7 coverage in complete darkness or smart pairing with network devices, this outdoor-ready camera is a versatile solution for industrial and machine vision applications. From impact resistance to advanced analytics, AXIS P1455-LE sets the standard for reliable and efficient industrial security.
Features:
- HDTV 1080p resolution at 60 fps
- AXIS Object Analytics for intelligent detection
- Motion-adaptive exposure and Lightfinder 2.0
- Forensic WDR for high-quality images in varying light conditions
- OptimizedIR for 24/7 surveillance in complete darkness
- Vandal-resistant IK10-rated casing with shock detection
- Axis Edge Vault for secure device ID protection
- Signed firmware and secure boot for enhanced security
Applications:
- Industrial surveillance
- Machine vision systems
- Outdoor perimeter security
- Dark areas and low-light environments
- Intelligent detection and classification of objects
- Impact-resistant surveillance in harsh conditions
- 24/7 surveillance in complete darkness
|
Image Sensor |
1/2.8” progressive scan RGB CMOS |
|
Lens |
Varifocal, 3-9 mm, F1.6-3.3 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.07 lux, at 50 IRE F1.6 |
|
Shutter Speed |
1/66500 s to 2 s |
|
Model |
ARTPEC-7 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Machine learning processing unit (MLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC), Main, Baseline and High Profile H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
1920x1080 to 160x90 |
|
Frame Rate |
With Forensic WDR: Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, defogging, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, motion-adaptive exposure, barrel distortion correction Scene profiles: forensic, vivid, traffic overview |
|
Pan/Tilt/Zoom |
Digital PTZ, digital zoom |
|
Audio Streaming |
Audio in, simplex, two-way audio via edge-to-edge technology |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
|
Audio Input/Output |
External microphone input or line input, digital audio input, network speaker pairing |
|
Security |
IP address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS)a network access control, user access log, centralized certificate management, Axis Edge Vault, Axis device ID |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Onscreen Controls |
Day/night shift |
|
Event Conditions |
Analytics |
|
Event Actions |
Record video: SD card and network share |
|
Built-in installation aids |
Pixel counter, remote zoom (3x optical), remote focus, auto rotation |
|
AXIS Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66/IP67-, NEMA 4X-, and IK10-rated casing Polycarbonate blend and aluminium |
|
Sustainability |
PVC free |
|
Power |
Power over Ethernet IEEE 802.3af/802.3at Type 1 Class 3 Typical: 7.7 W, max 12.95 W |
|
Connectors |
Shielded RJ45 10BASE-T/100BASE-TX/1000BASE-T |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 50121-4, EN 55035, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252, IEC 62471 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) NIST SP500-267 Cybersecurity ETSI EN 303 645 |
|
Dimensions |
Ø132 x 260 mm (Ø5.2 x 10.2 in) |
|
Weight |
With weather shield: 1 kg (2.2 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, connector kit, mounting bracket, Torx® L-keys AXIS Weather Shield L |
|
Optional Accessories |
AXIS T94F01M J-Box/Gang Box Plate, AXIS T91A47 Pole Mount, AXIS T94P01B Corner Bracket, AXIS T94F01P Conduit Back Box, AXIS Weather Shield K, Axis PoE Midspans |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
|
Warranty |
5 year |
