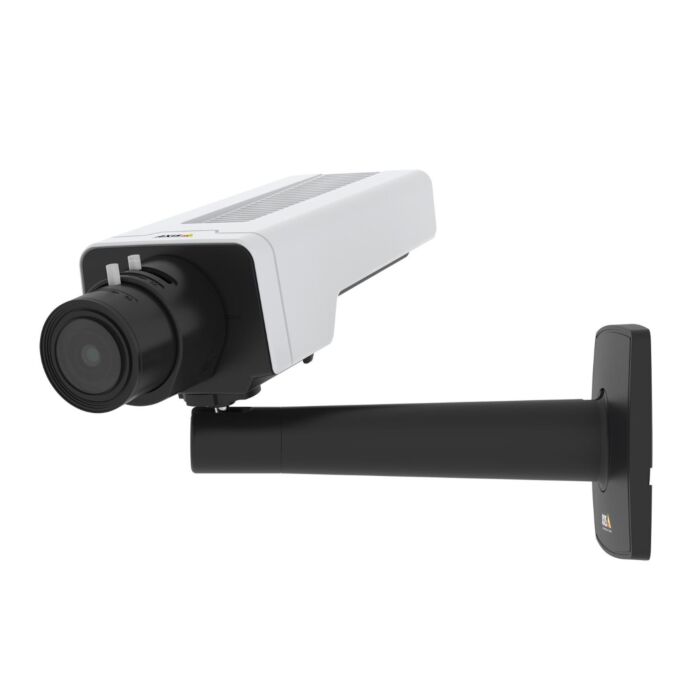

AXIS P1378 Network Camera
Unraveling the AXIS P1378 Network Camera: Cutting-Edge Industrial Surveillance
Unleash the power of the AXIS P1378 Network Camera – a pinnacle in industrial security technology. Boasting remarkable 4K resolution, this fixed box camera excels in capturing intricate details, making it an optimal choice for wide, open spaces like airports, cargo areas, and transportation hubs. The camera's advanced features include electronic image stabilization, Axis Forensic WDR, and Lightfinder technology, ensuring exceptional image quality under various conditions.
With Zipstream support for H.264 and H.265, the AXIS P1378 optimizes bandwidth and storage efficiency without compromising on image fidelity. The inclusion of P-Iris, barrel distortion correction, and defogging functionality enhances image contrast, clarity, and resolution. The CS mount facilitates lens changes, providing flexibility in capturing precise images.
Security is paramount with signed firmware and secure boot, guaranteeing protection against unauthorized access. Shock detection and tampering alarms further fortify the camera's resilience against interference. This camera is not just a surveillance tool; it's a reliable guardian, offering peace of mind in critical industrial and machine vision applications.
Features:
- 4K resolution for detailed images
- Electronic image stabilization
- Forensic WDR and Lightfinder technology
- Zipstream support for H.264 and H.265
- P-Iris for enhanced contrast and clarity
- CS mount for lens flexibility
- Signed firmware and secure boot for security
- Shock detection and tampering alarms
Applications:
- Airport Surveillance
- Cargo Area Monitoring
- Public Transportation Systems
- Industrial Machine Vision
- Wide Open Spaces Surveillance
|
Image Sensor |
1/1.8” progressive scan RGB CMOS |
|
Lens |
IR corrected, CS-mount lens, P-Iris Varifocal 3.9–10 mm, F1.5 Horizontal field of view: 119°–45°Vertical field of view: 62°–25° |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
4K 25/30 fps with Forensic WDR and Lightfinder: Color: 0.15 lux, at 50 IRE F1.5 |
|
Shutter Time |
1/8500 s to 1/5 s |
|
Model |
ARTPEC-7 |
|
Memory |
2 GB RAM, 512 MB Flash |
|
Compute Capabilities |
Machine learning processing unit (MLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Motion JPEG |
|
Resolutions |
3840x2160 (4K) to 160x90 |
|
Frame Rate |
25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction, scene profiles: forensic, vivid, traffic overview |
|
Pan/Tilt/Zoom |
Digital PTZ Uploadable PTZ driver (Pelco D pre-installed) |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Compression |
AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 8/16/32/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, line output, automatic gain control |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G and ONVIF® Profile S |
|
Onscreen Controls |
Electronic image stabilization Day/night shift Defogging Wide dynamic range |
|
Event Triggers |
Analytics, shock detection, open casing, edge storage events, supervised external input, audio level, time scheduled MQTT subscribe |
|
Event Actions |
MQTT publish |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Focus assistant, pixel counter, remote back focus, autorotation, remote focus and zoom and with optional i-CS lens |
|
AXIS Object Analysis |
Object classes: humans, vehicles |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Secure boot |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
Metal (zinc) |
|
Mounting |
¼”-20 tripod screw thread Camera stand included |
|
Sustainability |
Free of hazardous brominated and chlorinated flame retardants (BFR/CFR free) |
|
Power |
12–28 V DC, max 10.5 W, typical 6.1 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 Safety IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 Network NIST SP500–267 |
|
Dimensions |
214 x 80 x 57 mm (8 7/16 x 3 1/8 x 2 1/4 in) |
|
Weight |
750 g (1.7 lb) |
|
Included Accessories |
Connector kit, Installation Guide, Windows® decoder 1-user license, stand, Resistorx® L-key TR20, Torx® L-key T6 |
|
Optional Lenses |
Lens CS 4-10 mm F0.9 P-Iris |
|
Optional Accessories |
Axis mounts, Axis lenses, Axis midspans, Axis microphones AXIS TQ1809-LE Housing T92G |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
