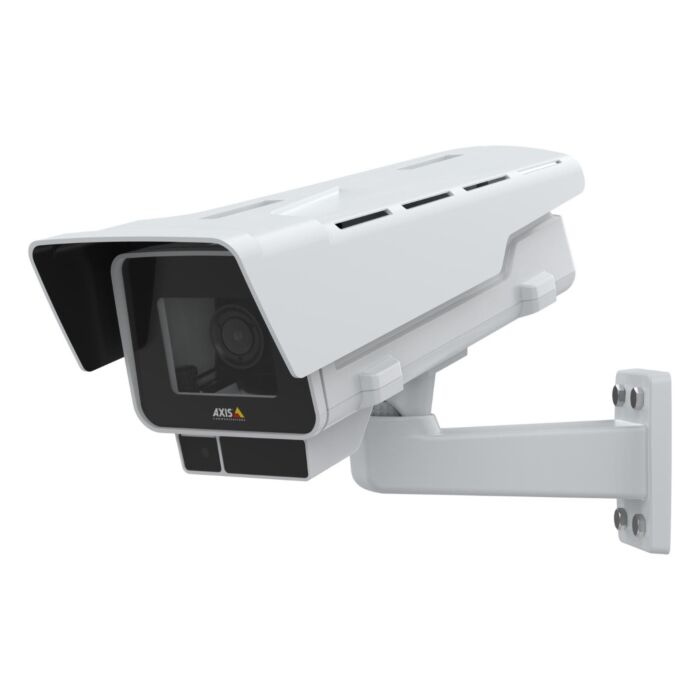

AXIS P1377-LE Network Camera
AXIS P1377-LE Network Camera: Superior Performance for Outdoor Surveillance
In the realm of industrial security cameras, the AXIS P1377-LE Network Camera from Aegis Electronic Group stands out as a robust and reliable solution. With a fully-equipped 5 MP surveillance capability, it excels in providing detailed images, making it ideal for wide outdoor areas like airports, cargo zones, and public transportation systems. Designed to withstand extreme temperatures from -40 °C to 60 °C, it ensures operational reliability in challenging environments. The electronic image stabilization feature guarantees stable images, even in situations with camera vibrations.
This camera boasts advanced features such as Forensic WDR for high-quality images in varying light conditions, OptimizedIR for surveillance in complete darkness, and secure boot functionality to prevent unauthorized access. The IP67-rated casing protects against water, corrosion, and dust, ensuring longevity. With tampering alarms and shock detection, it provides an extra layer of security. The AXIS P1377-LE supports H.264 and H.265 compression, offering efficient video storage without compromising image quality. With its versatile applications in industrial and machine vision settings, this camera emerges as a top-tier choice for those seeking uncompromised outdoor surveillance.
Features:
- 5 MP Surveillance
- Electronic Image Stabilization
- Forensic WDR
- OptimizedIR for Night Vision
- Secure Boot and Signed Firmware
- IP67-rated Casing
- Shock Detection
- Tampering Alarm
- H.264/H.265 Compression
Applications:
- Airport Security
- Cargo Areas Surveillance
- Public Transportation Systems
- Industrial Facilities
- Machine Vision Applications
- Outdoor Surveillance Scenarios
|
Image Sensor |
1/2.7” progressive scan RGB CMOS |
|
Lens |
IR corrected, CS-mount lens, P-Iris Varifocal 2.8–8 mm, F1.2 Horizontal field of view: 90°–38°Vertical field of view: 67°–28° |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
5 MP 25/30 fps with Forensic WDR and Lightfinder: Color: 0.13 lux, at 50 IRE F1.2 |
|
Shutter Time |
WDR: 1/33500 s to 1/5 s |
|
Model |
ARTPEC-7 |
|
Memory |
1 GB RAM, 512 MB Flash |
|
Compute Capabilities |
Machine learning processing unit (MLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Motion JPEG Controllable frame rate and bandwidth |
|
Resolutions |
2592x1944 (5 MP) to 160x90 |
|
Frame Rate |
Capture mode 5 MP: 25/30 fps (50/60 Hz) |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction, scene profiles: forensic, vivid, traffic overview |
|
Pan/Tilt/Zoom |
Digital PTZ Uploadable PTZ driver (Pelco D pre-installed) |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Compression |
AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 8/16/32/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, line output, automatic gain control |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, SFTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G and ONVIF® Profile S |
|
Onscreen Controls |
Electronic image stabilization Day/night shift Defogging Wide dynamic range |
|
Event Triggers |
Analytics, shock detection, open casing, edge storage events, supervised external input, audio level, time scheduled MQTT subscribe |
|
Event Actions |
File upload: FTP, SFTP, HTTP, HTTPS, network share and email Notification: email, HTTP, HTTPS and TCP |
|
Built-in installation aids |
Focus assistant, pixel counter, remote back focus, autorotation, remote focus and zoom and with optional i-CS lens |
|
AXIS Object Analysis |
Object classes: humans, vehicles |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Secure boot |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66-, IP67- and NEMA 4X-rated, IK10 impact-resistant polymer enclosure with aluminium base and intrusion alarm switch Weathershield with black anti-glare coating |
|
Sustainability |
PVC Free |
|
Power |
12–28 V DC, max 25.5 W (incl. IR and front heater), typical 10.5 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
|
Storage |
Support for microSD/microSDHC/microSDXC card |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 Safety IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, Environment IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10 Network NIST SP500–267 |
|
Dimensions |
404 x 159 x 168 mm (15.9 x 6.3 x 6.6 in) |
|
Weight |
2.4 kg (5.3 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, wall mount bracket, sunshield, connector kit |
|
Optional Accessories |
Lens Computar i-CS 2.8-8.5 mm |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
