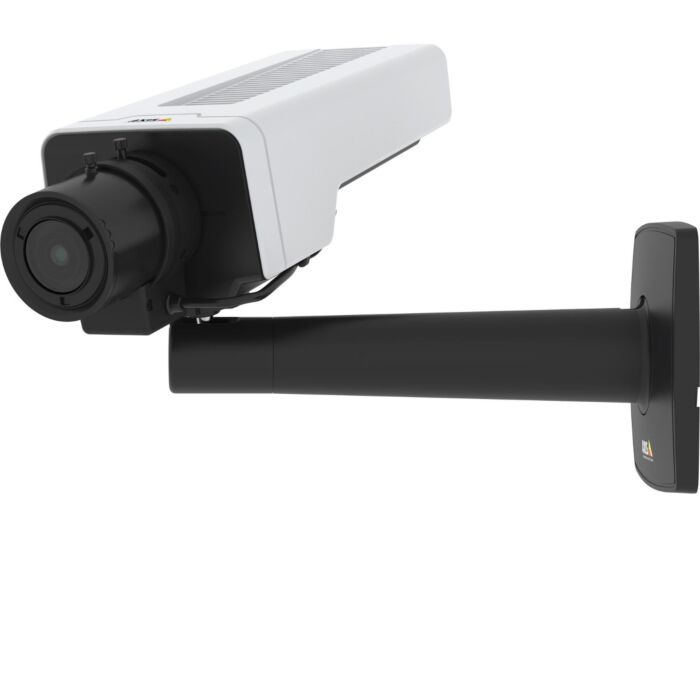

AXIS P1375 Network Camera
In the realm of industrial security cameras, the AXIS P1375 Network Camera from Aegis Electronic Group stands out as a pinnacle of innovation. Boasting stable 2 MP surveillance in any circumstance, this camera redefines the standards for video quality. Its HDTV 1080p capability at up to 60 fps, coupled with Lightfinder 2.0 technology, ensures crystal-clear images even in challenging lighting conditions.
The AXIS P1375 goes beyond ordinary with features like electronic image stabilization, barrel distortion correction, and defogging functionality, guaranteeing sharp images regardless of vibration or environmental factors. The camera's scene profiles optimize it for specific scenarios, providing top-notch image quality with cost-effective installation.
This industrial powerhouse is not only about visuals; it prioritizes security. With signed firmware, secure boot technology, shock detection, and a tampering alarm, it prevents unauthorized access and safeguards your system. The Axis Forensic WDR ensures color accuracy in scenes with varying light conditions.
Ideal for deterrent surveillance in offices, banks, and hotels, the AXIS P1375 sets a new benchmark in machine vision and industrial applications. Its adaptability, coupled with Axis Zipstream supporting H.264 and H.265, offers savings on storage and bandwidth costs while maintaining high image quality. Invest in AXIS P1375 for a surveillance solution that surpasses expectations and secures your premises with cutting-edge technology.
Features:
- HDTV 1080p at up to 60 fps
- Lightfinder 2.0
- Signed firmware and secure boot
- Zipstream with support for H.264 and H.265
- Electronic image stabilization
Applications:
- Security
- Surveillance
- Stores
- Hotels
- Schools
- Banks
- Offices
|
Image Sensor |
1/2.9" progressive scan RGB CMOS |
|
Lens |
IR corrected, CS-mount lens, P-Iris |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder: |
|
Shutter Time |
WDR: 1/34500 s to 2 s |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Motion JPEG |
|
Resolutions |
1920x1080 to 160x90 |
|
Frame Rate |
WDR: 25/30 fps (50/60 Hz) No WDR: 50/60 fps (50/60 Hz) |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction, scene profiles: forensic, vivid, traffic overview |
|
Pan/Tilt/Zoom |
Digital PTZ Uploadable PTZ driver (Pelco D pre-installed) |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Compression |
AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, line output, built-in microphone (can be disabled) |
|
Security |
Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
|
Supported Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G, ONVIF® Profile S, and ONVIF® Profile T, specification |
|
Onscreen Controls |
Electronic image stabilization Day/night shift Defogging Wide dynamic range |
|
Analytics |
Included AXIS Video Motion Detection, active tampering alarm, audio detection Supported AXIS Perimeter Defender, AXIS Guard Suite including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard Support for AXIS Camera Application Platform enabling installation of third-party applications |
|
Event Triggers |
Analytics, shock detection, edge storage events, supervised external input, audio level, time scheduled Hardware: network, ring power overcurrent protection |
|
Event Actions |
Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP and SNMP trap PTZ: PTZ preset, start/stop guard tour Overlay text, external output activation, play audio clip, WDR mode, day/night mode |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Focus assistant, pixel counter, remote back focus, autorotation |
|
Casing |
Metal (zinc) Color lid: White NCS S 1002-B Color chassis: Black NCS S 9002-N |
|
Mounting |
¼”-20 tripod screw thread Camera stand included |
|
Sustainability |
PVC-free |
|
Memory |
1 GB RAM, 512 MB Flash |
|
Power |
12–28 V DC, max 9.6 W, typical 4.9 W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 9.6 W, typical 5.1 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T I/O: 6-pin 2.5 mm terminal block, for 2 supervised alarm inputs and 2 outputs RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block DC input, terminal block, 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris) Security lock slot AXIS T92G20 connector |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) |
|
Operating Conditions |
-10 °C to 55 °C (14 °F to 131 °F) Humidity 10-85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
|
Approvals |
EMC 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 Safety IEC/EN/UL 60950-1, IS 13252 Network NIST SP500–267 |
|
Dimensions |
214 x 80 x 57 mm (8 7/16 x 3 1/8 x 2 1/4 in) |
|
Weight |
750 g (1.7 lb) |
|
Included Accessories |
Connector kit, Installation Guide, Windows® decoder 1-user license, stand, Resistorx® L-key TR20, Torx® L-key T6 |
|
Optional Accessories |
Axis mounts, Axis lenses, Axis midspans, Axis microphones AXIS T92G20 Outdoor Housing AXIS T8355 Digital Microphone |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
