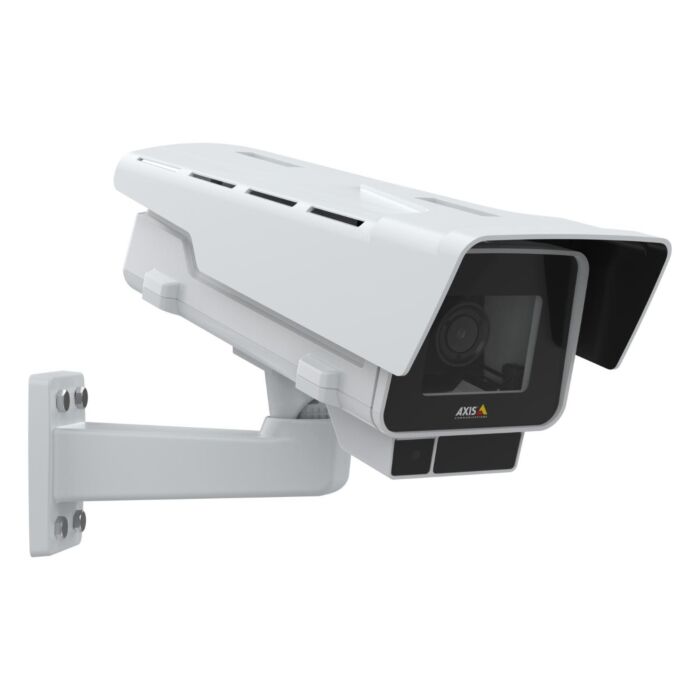

AXIS P1375-E Network Camera
Discover the AXIS P1375-E Network Camera, a cutting-edge solution for outdoor surveillance in challenging environments. With stable 2 MP surveillance and HDTV 1080p at up to 60 fps, this camera ensures exceptional video quality even in the great outdoors. Operating between -40 °C to 60 °C (-40 °F to 140 °F), it stands resilient against extreme temperatures. The robust and impact-resistant design, coupled with IP66, IP67, IK10, and NEMA 4X ratings, makes it impervious to water, corrosion, and dust.
Designed for efficiency, AXIS P1375-E features Lightfinder 2.0 and electronic image stabilization, ensuring clear images in low-light conditions. The innovative design allows quick and efficient installation with easy access to connectors and cables. Don’t miss a detail, even in the dark, with electronic image stabilization and defogging functionality.
Adaptability is key with corridor format support, optimizing video for specific scenes. Axis Zipstream technology and support for H.264 and H.265 compression ensure efficient video storage without compromising image quality. Advanced security features, including signed firmware, secure boot, and tampering alarm, make AXIS P1375-E a trustworthy choice for safeguarding your system. Elevate your surveillance capabilities with AXIS P1375-E, setting new standards for industrial and machine vision applications.
Features:
- HDTV 1080p at up to 60 fps
- Lightfinder 2.0
- Signed firmware and secure boot
- Zipstream with support for H.264 and H.265
- Electronic image stabilization
Applications:
- Security
- Surveillance
- Stores
- Hotels
- Schools
- Banks
- Offices
- Warehouse
- Parking Lots
|
Image Sensor |
1/2.8” progressive scan RGB CMOS |
|
Lens |
IR corrected, CS-mount lens, P-Iris |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder: |
|
Shutter Time |
WDR: 1/34500 s to 2 s |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Motion JPEG Controllable frame rate and bandwidth |
|
Resolutions |
1920x1080 to 160x90 |
|
Frame Rate |
Forensic WDR: 25/30 fps (50/60 Hz) No WDR: 50/60 fps (50/60 Hz) |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator |
|
Multi-view Streaming |
Up to 8 individually cropped out view areas |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic WDR: Up to 120 dB depending on scene, white balance, day/night threshold, exposure mode, exposure zones, local contrast, tone mapping, compression, orientation: auto, 0°, 90°, 180°, 270° including Corridor Format, mirroring of images, dynamic text and image overlay, privacy masks, defogging, electronic image stabilization, barrel distortion correction, scene profiles: forensic, vivid, traffic overview |
|
Pan/Tilt/Zoom |
Digital PTZ Uploadable PTZ driver (Pelco D pre-installed) |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Compression |
AAC LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz, LPCM 8/16/32/48 kHz Configurable bit rate |
|
Audio Input/Output |
External microphone input, line input, digital input with ring power, line output |
|
Security |
Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1X (EAP-TLS) a network access control, digest authentication, user access log, centralized certificate management, brute force delay protection, signed firmware, secure boot |
|
Supported Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP™, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform, specifications at axis.com AXIS Guardian with One-Click Connection ONVIF® Profile G and ONVIF® Profile S |
|
Onscreen Controls |
Electronic image stabilization Day/night shift Defogging Wide dynamic range |
|
Analytics |
Included AXIS Video Motion Detection, active tampering alarm, audio detection Supported AXIS Perimeter Defender, AXIS Guard Suite including AXIS Motion Guard, AXIS Fence Guard, and AXIS Loitering Guard Support for AXIS Camera Application Platform enabling installation of third-party applications |
|
Event Triggers |
Analytics, shock detection, open casing, edge storage events, supervised external input, audio level, time scheduled |
|
Event Actions |
File upload: FTP, SFTP, HTTP, HTTPS, network share and email Notification: email, HTTP, HTTPS and TCP External output activation Video recording to edge storage, Play audio clip Pre- and post-alarm video buffering PTZ preset, Guard tour, Overlay text Day/Night switching, Status LED activation Send SNMP trap |
|
Data Streaming |
Event Data |
|
Built-in installation aids |
Focus assistant, pixel counter, remote back focus, autorotation, remote focus and zoom and with optional i-CS lens |
|
Casing |
IP66-, IP67- and NEMA 4X-rated, IK10 impact-resistant polymer enclosure with aluminium base and intrusion alarm switch Weathershield with black anti-glare coating Color: White NCS S 1002-B |
|
Mounting |
¼”-20 tripod screw thread Camera stand included |
|
Sustainability |
PVC-free |
|
Memory |
1 GB RAM, 512 MB Flash |
|
Power |
12–28 V DC, max 9.7 W, typical 5.3 W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 10.3 W, typical 5.9 W With AXIS Fixed Box IR Illuminator Kit A: 12–28 V DC, max 19.7 W, typical 5.3 W Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 4, max 20.3 W, typical 5.9 W Power redundancy |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T I/O: 6-pin 2.5 mm terminal block, for 2 supervised alarm inputs and 2 outputs RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block 3.5 mm mic/line in, 3.5 mm line out i-CS connector (compatible with P-Iris and DC-iris) IR illuminator connector |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption Support for recording to network-attached storage (NAS) For SD card and NAS |
|
Operating Conditions |
-40 °C to 60°C (-40 °F to 140 °F) Humidity 10-100% RH (condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
|
Approvals |
EMC EN 55032 Class A, EN 50121-4, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, RCM AS/NZS CISPR 32 Class A, KCC KN32 Class A, KN35 Safety IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IS 13252 Environment IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP67 Network NIST SP500–267 |
|
Dimensions |
404 x 159 x 143 mm (15 15/16 x 6 1/4 x 5 5/8 in) |
|
Weight |
2.2 kg (4.9 lb) |
|
Included Accessories |
Installation Guide, Windows® decoder 1-user license, wall mount bracket, sunshield, connector kit IK10 tool Torx® T20 screw driver, Torx® T30 screw bit AXIS P13 Weathershield Kit A |
|
Optional Accessories |
Axis mounts, Axis lenses, Axis midspans, Axis microphones AXIS Fixed Box IR Illuminator Kit A (range of reach 50 m (164 ft) or more depending on the scene) AXIS P13 Weathershield Extension A AXIS T8355 Digital Microphone AXIS T99A11 Positioning Unit 24 V AC/DC |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
