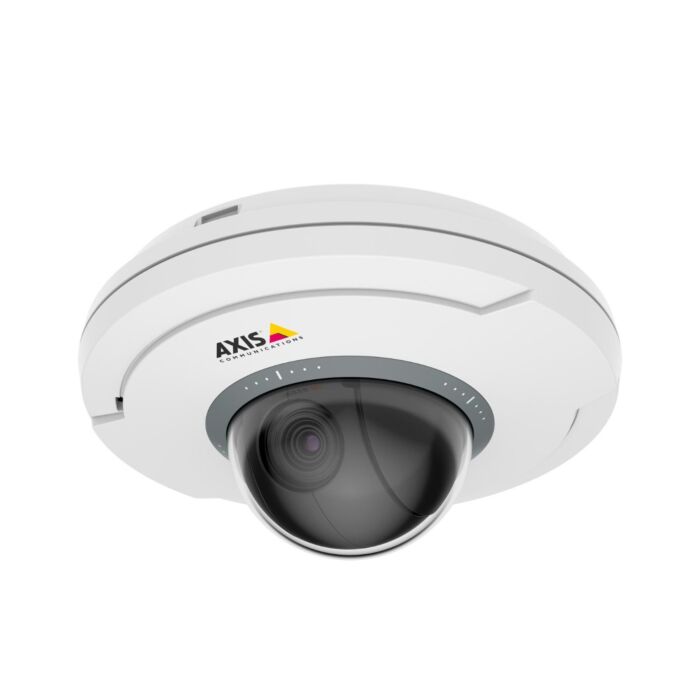

AXIS M5075 PTZ Camera

Explore AXIS M5075, the ideal choice for compact industrial security. Benefit from advanced features, detailed imaging, and built-in analytics. Secure your business today.

$0.00 Please call for pricing

SKU

M5075

Overview

Unveiling AXIS M5075: A Compact PTZ Camera for Industrial Security

Unlock unparalleled security and surveillance with AXIS M5075, a discreet and compact palm-sized PTZ camera tailored for industrial applications. Measuring just 130 x 63 mm, this small-sized powerhouse seamlessly integrates into any environment, offering an affordable solution without compromising on quality. The camera boasts a 5x optical zoom and 12x digital zoom, providing sweeping overviews and detailed close-ups.

Equipped with autofocus and Wide Dynamic Range (WDR) technology, AXIS M5075 ensures sharp and detailed video in HDTV 1080p/2 MP resolution, even in challenging lighting conditions. The built-in microphone enables advanced audio analytics, including scream and glass break detection. Its Zipstream technology with H.264/H.265 compression minimizes storage and bandwidth requirements.

AXIS M5075 is not just a security device; it's a business tool. With plug & play functionality and built-in analytics, it transforms surveillance into actionable insights. From audio volume detection to AXIS Video motion detection, this camera empowers businesses to make informed decisions about operations and resource allocation. Moreover, its built-in cybersecurity features enhance system integrity, preventing unauthorized access.

Features:

Palm-sized design
5x optical zoom, 12x digital zoom
Autofocus and WDR technology
Built-in analytics
Zipstream with H.264/H.265
Built-in cybersecurity features

Applications:

Industrial security
Machine vision
Efficient security surveillance
Business intelligence
Resource allocation optimization

Specifications

Image Sensor	1/2.8” progressive scan RGB CMOS
Lens	Varifocal. 2.2–11.0 mm, F1.4–F2.5 Horizontal field of view: 14°–71° Vertical field of view: 8°–40° Autofocus
Minimum Illumination	Color: 0.1 lux at 30 IRE F1.4
Shutter Speed	1/17000 s to 2 s
Pan/Tilt/Zoom	Pan: ±179°, 100°/s Tilt: 90°, 100°/s Zoom: 5x optical, 12x digital 256 preset positions, control queue, on-screen directional indicator, set new pan 0°, autofocus area, focus recall
Model	ARTPEC-7
Memory	1024 MB RAM, 512 MB Flash
Video Compression	H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG
Resolutions	1920x1080 to 320x180 (16:9)
Frame Rate	Up to 50/60 fps (50/60 Hz) in all resolutions
Video Streaming	Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 Video streaming indicator
Image Settings	Saturation, contrast, brightness, sharpness, Forensic capture, white balance, day/night threshold, local contrast, tone mapping , exposure mode, exposure zones, compression, rotation: 0°, 180°, barrel distortion correction, text and image overlay, polygon privacy masks
Audio Streaming	One-way
Audio Encoding	24 bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate
Audio Input	Built-in microphone
Network Protocols	IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)
Application Programming Interface	Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Video Hosting System (AVHS) with One-Click Connection One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification
Onscreen Controls	Day/night shift Video streaming indicator Focus recall zone Privacy masks
Event Conditions	Audio: audio detection Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, storage failure, system ready, within operating temperature Edge storage: recording ongoing, storage disruption, storage health issues detected I/O: manual trigger, virtual input MQTT subscribe PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready Scheduled and recurring: scheduled event Video: average bitrate degradation, day-night mode, live stream open, tampering
Event Actions	Day-night mode MQTT publish Overlay text Preset positions Recordings Status LED WDR mode Notification: email, HTTP, HTTPS, TCP and SNMP trap Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
Data Streaming	Event data
Built-in installation aids	Leveling assistant, pixel counter
Applications	Included AXIS Video Motion Detection, audio detection, active tampering alarm, gatekeeper, AXIS Scream Detection, AXIS Removed Object Detection Support for additional applications if the device is used with compatible accessories. For more information, contact your Axis partner. Support for AXIS Camera Application Platform enabling installation of third-party applications
Edge Security	Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection
Network Security	IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)a, IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall
Casing	IP51-rated plastic casing, clear dome Color: white NCS S 1002-B For repainting instructions, go to the product’s support page.
Sustainability	PVC free
Power	Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.2 W, max 9.3 W
Connectors	RJ45 10BASE-T/100BASE-TX PoE
Storage	Support for SD/SDHC/SDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Support for recording to network-attached storage (NAS)
Operating Conditions	0 °C to 45 °C (32 °F to 113 °F) Humidity 10–90% RH (non-condensing)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F) Humidity 5–95% RH (non-condensing)
Approvals	EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A Safety CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252 Environment IEC/EN 60529 IP51 Network NIST SP500-267
Dimensions	Ø130 x 63 mm (Ø5.1 x 2.5 in)
Weight	380 g (0.84 lb)
Included Accessories	AXIS M50 Mounting Kit, Installation Guide, Windows decoder 1-user license
Optional Accessories	AXIS M50 Clear Dome Cover A
Video Management	AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners
Languages	English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese
Warranty	5 year

Downloads

AXIS M5075 Spec Sheet
