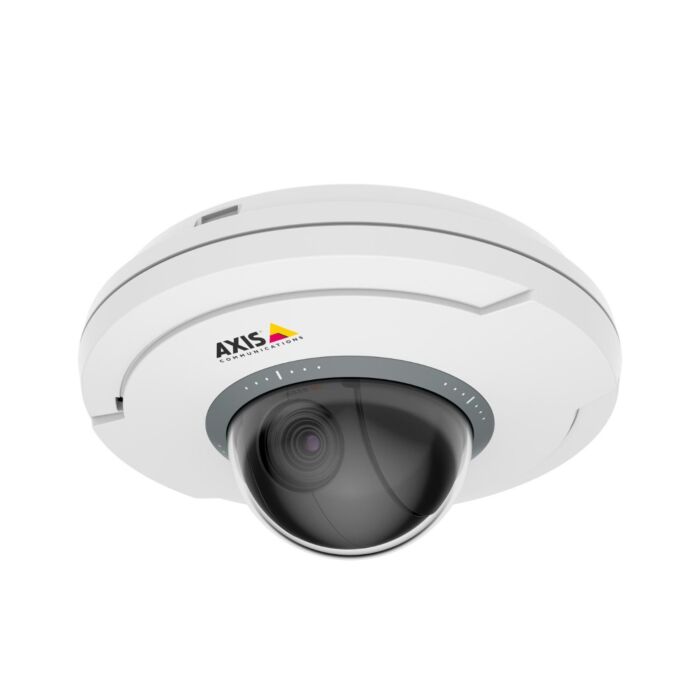

AXIS M5074 PTZ Camera

Experience top-notch security with AXIS M5074 PTZ Camera – a compact powerhouse with 5x optical zoom, advanced analytics, and robust cybersecurity. Enhance your surveillance capabilities now!
SKU
M5074

Unveiling AXIS M5074 PTZ Camera: A Compact Marvel for Enhanced Security

Unlock advanced surveillance capabilities with the AXIS M5074, a discreet palm-sized PTZ camera perfect for small installations. Despite its compact 130 x 63 mm dimensions, this camera packs a powerful punch with 5x optical zoom, 12x digital zoom, and autofocus, delivering sharp HDTV 720p/1MP resolution. The incorporation of Wide Dynamic Range (WDR) technology ensures clear images even in scenes with varying light conditions.

Built-in analytics transform this camera into a cost-effective business tool, offering audio volume detection, scream detection, and AXIS Video motion detection for comprehensive security insights. The Zipstream feature with H.264/H.265 compression minimizes storage requirements without compromising image quality. The affordability of AXIS M5074, combined with its compatibility with previous model installation materials, makes it an attractive choice.

Enhanced cybersecurity features ensure system integrity and prevent unauthorized access. This compact marvel is ideal for industrial and machine vision applications, offering a seamless blend of size, performance, and affordability. With AXIS M5074, see the big picture and every crucial detail.

Features:

  • Discreet palm-sized design
  • 5x optical zoom, 12x digital zoom
  • Autofocus and Wide Dynamic Range (WDR)
  • Zipstream with H.264/H.265 compression
  • Built-in analytics: audio volume, scream detection, motion detection
  • Compatibility with previous model installation materials
  • Built-in cybersecurity features for unauthorized access prevention

Applications:

  • Industrial surveillance
  • Machine vision
  • Small installations
  • Enhanced security analytics
  • Cost-effective business tool
  • Forensic detail preservation
  • Efficient resource allocation

Image Sensor

1/2.8” progressive scan RGB CMOS

Lens

Varifocal. 2.2–11.0 mm, F1.4–F2.5
Horizontal field of view: 14°–71°
Vertical field of view: 8°–40°
Autofocus

Minimum Illumination

Color: 0.1 lux at 30 IRE F1.4

Shutter Speed

1/17000 s to 2 s

Pan/Tilt/Zoom

Pan: ±179°, 100°/s
Tilt: 90°, 100°/s
Zoom: 5x optical, 12x digital
256 preset positions, control queue, on-screen directional indicator, set new pan 0°, autofocus area, focus recall

Model

ARTPEC-7

Memory

1024 MB RAM, 512 MB Flash

Video Compression

H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile
Motion JPEG

Resolutions

1280x720 to 320x180 (16:9)

Frame Rate

Up to 50/60 fps (50/60 Hz) in all resolutions

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and
Motion JPEG
Axis Zipstream technology in H.264 and H.265
Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Video streaming indicator

Image Settings

Saturation, contrast, brightness, sharpness, Forensic capture, white balance, day/night threshold, local contrast, tone mapping , exposure mode, exposure zones, compression, rotation: 0°, 180°, barrel distortion correction, text and image overlay, polygon privacy masks

Audio Streaming

One-way

Audio Encoding

24 bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate

Audio Input

Built-in microphone

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf)

Application Programming Interface

Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Video Hosting System (AVHS) with One-Click Connection One-click cloud connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification

Onscreen Controls

Day/night shift
Video streaming indicator
Focus recall zone
Privacy masks

Event Conditions

Audio: audio detection
Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, storage failure, system ready, within operating temperature
Edge storage: recording ongoing, storage disruption, storage health issues detected
I/O: manual trigger, virtual input
MQTT subscribe
PTZ: PTZ malfunctioning, PTZ movement, PTZ preset position reached, PTZ ready
Scheduled and recurring: scheduled event
Video: average bitrate degradation, day-night mode, live stream open, tampering

Event Actions

Day-night mode
MQTT publish
Overlay text
Preset positions
Recordings
Status LED
WDR mode
Notification: email, HTTP, HTTPS, TCP and SNMP trap
Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email

Data Streaming

Event data

Built-in installation aids

Leveling assistant, pixel counter

Applications

Included
AXIS Video Motion Detection, audio detection, active tampering alarm, gatekeeper, AXIS Scream Detection, AXIS Removed Object Detection
Support for additional applications if the device is used with compatible accessories. For more information, contact your Axis partner.
Support for AXIS Camera Application Platform enabling installation of third-party applications

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization
Code Flow for centralized ADFS account management, password protection

Network Security

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)a, IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Casing

IP51-rated plastic casing, clear dome
Color: white NCS S 1002-B
For repainting instructions, go to the product’s support page.

Sustainability

PVC free

Power

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.2 W, max 9.3 W

Connectors

RJ45 10BASE-T/100BASE-TX PoE

Storage

Support for SD/SDHC/SDXC card
Support for SD card encryption (AES-XTS-Plain64 256bit)
Support for recording to network-attached storage (NAS)

Operating Conditions

0 °C to 45 °C (32 °F to 113 °F)
Humidity 10–90% RH (non-condensing)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F)
Humidity 5–95% RH (non-condensing)

Approvals

EMC

EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A),
KS C 9832 Class A, KS C 9835, RCM AS/NZS CISPR 32 Class A, VCCI Class A

Safety

CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IS 13252

Environment

IEC/EN 60529 IP51

Network

NIST SP500-267

Dimensions

Ø130 x 63 mm (Ø5.1 x 2.5 in)

Weight

380 g (0.84 lb)

Included Accessories

AXIS M50 Mounting Kit, Installation Guide, Windows decoder 1-user license

Optional Accessories

AXIS M50 Clear Dome Cover A

Video Management

AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese

Warranty

5 year
