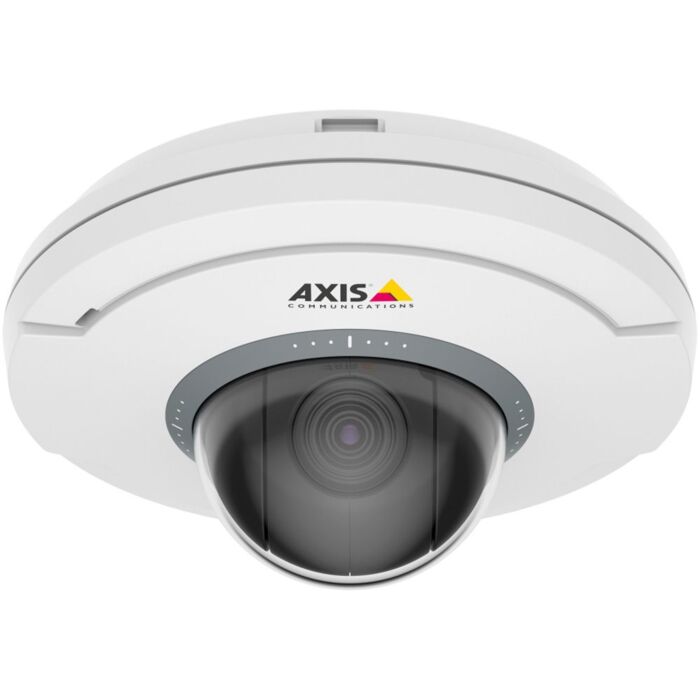

Axis M5054 PTZ Network Camera (01079-001)
Axis M5054 PTZ Network Camera is a discreet, palm-sized PTZ camera that fits in anywhere. Perfect for smaller installations, it offers an affordable way to see the big picture.
SKU
M5054 (01079-001)
Palm-sized PTZ camera in HDTV 720P with 5x optical zoom.
Features:
Applications:
| Image sensor | 1/4.85” progressive scan RGB CMOS |
| Lens | Varifocal. 2.2–11.0 mm, F1.4–F2.5 Horizontal field of view: 14°–71° Vertical field of view: 8°–40° Autofocus |
| Minimum illumination | Color: 0.9 lux at 30 IRE F1.4 |
| Shutter time | 1/16000 s to 1 s |
| Pan/Tilt/Zoom | Pan: ±179°, 100°/s Tilt: 90°, 100°/s Zoom: 5x optical, 10x digital 25 preset positions, control queue, on-screen directional indicator |
| Video compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High profiles Motion JPEG |
| Resolution | 1280x720 to 320x180 (16:9) |
| Frame rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Axis Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Image settings | Resolution, compression, rotation: 0°, 180°, text and image overlay, color, brightness, sharpness, white balance, wide dynamic range, exposure control, exposure time, gain, exposure zones, exposure priority, image freeze on PTZ, privacy masks |
| Audio streaming | One-Way |
| Audio compression | AAC-LC 8/16 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz Configurable bit rate |
| Audio input | Built-in microphone |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, digest authentication, user access log, centralized certificate management |
| Supported protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP® , SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at www.axis.com AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF® Profile S and ONVIF® Profile G, specification at onvif.org |
| Dimensions | Ø130 x 63 mm (Ø5.1 x 2.5 in) |
| Weight | 375 g (0.8 lb) |
| Included accessories | AXIS M50 Mounting Kit, Installation Guide, Windows decoder 1-user license |
| Video management software | AXIS Companion, AXIS Camera Station, Video management software from Axis’ Application Development Partners available on www.axis.com/vms |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3-year warranty and AXIS Extended Warranty option, see www.axis.com/warranty |
