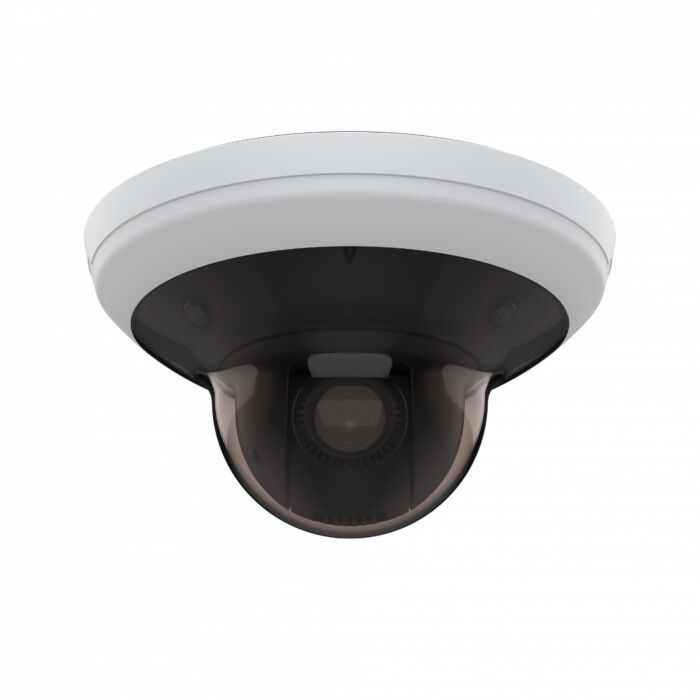

AXIS M5000 PTZ Camera
Unmatched Features of AXIS M5000 PTZ Camera
Unveil the pinnacle of indoor surveillance with the AXIS M5000 PTZ Camera, a cutting-edge solution crafted for industrial and machine vision applications. This 15 MP camera boasts three 5 MP sensors and a PTZ camera with 10x optical zoom, delivering the advantages of four cameras while requiring just one installation.
With a coverage area of up to 400 m2 (4300 ft2), the AXIS M5000 provides total situational awareness. Its HDTV 1080p resolution, autofocus, and day/night functionality ensure sharp details and clarity. The camera is adept at deterring criminal behavior with indication lights, making it ideal for retail stores and expansive indoor spaces.
Exceptional image quality is achieved through three 5 MP sensors, offering cost-effective surveillance. Privacy masking and click-in-picture functionality enhance customization. The camera's design ensures cost-efficiency and easy installation, consolidating four cameras into one. Edge storage facilitates direct recording to a memory card, simplifying maintenance. Additionally, the Axis Edge Vault secures your device ID.
Features:
- 15 MP resolution with 10x optical zoom
- Total situational awareness up to 400 m2
- HDTV 1080p, autofocus, and day/night functionality
- Privacy masking and click-in-picture functionality
- Cost-efficient installation with edge storage
- Axis Edge Vault for device ID security
Applications:
- Industrial Security
- Machine Vision
- Retail Stores
- Large Indoor Areas
- Banks
- Surveillance in Expansive Spaces
|
Image Sensor |
PTZ camera: |
|
Lens |
PTZ camera: |
|
Day and Night |
PTZ camera: |
|
Minimum Illumination |
PTZ camera: |
|
Shutter Speed |
PTZ camera: |
|
Pan/Tilt/Zoom |
PTZ camera: |
|
Model |
ARTPEC-7 |
|
Memory |
2048 MB RAM, 512 MB Flash |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile |
|
Resolutions |
PTZ camera: 1920x1080 to 320x180 |
|
Frame Rate |
PTZ camera: |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and |
|
Image Settings |
Saturation, contrast, brightness, sharpness, Forensic capture, white balance, day/night threshold, tone mapping, exposure mode, exposure zones, compression, text and image overlay, polygon privacy masks, image freeze on PTZ, local contrast, max shutter, max gain, noise/motion priority, aperture lock, exposure level |
|
Audio Streaming |
Two-way, full duplex |
|
Audio Encoding |
24 bit LPCM, AAC-LC 8/16/32/44.1 kHz, G.711 PCM 8 kHz, G.726 |
|
Audio Input/Output |
External microphone input or line input, line output, automatic gain control |
|
Security |
HTTPSa encryption, IEEE 802.1x (EAP-TLS)a network access control, user access log, centralized certificate management, signed video, Axis Edge Vault, Axis device ID, secure keystore (CC EAL4 certified) |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com AXIS Video Hosting System (AVHS) with One-Click Connection One-click cloud connection |
|
Onscreen Controls |
Focus recall area |
|
Event Conditions |
Audio: audio clip playing |
|
Event Actions |
Audio clips: play, play while the rule is active, stop playing Guard tours: Run while the rule is active, start |
|
Data Streams |
Event data |
|
Built-in installation aids |
Pixel counter |
|
Applications |
Included |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2)a, IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTSa, TLS v1.2/v1.3a, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP51-rated |
|
Sustainability |
PVC free, BFR/CFR free |
|
Power |
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4 Typical 7.4 W, max 13.0 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE DC input terminal block |
|
Storage |
Support for SD/SDHC/SDXC card |
|
Operating Conditions |
0 °C to 40 °C (32 °F to 104 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 USA: FCC Part 15 Subpart B Class A Safety CAN/CSA C22.2 No. 62368-1 , IEC/EN/UL 62368-1 , IS 13252 Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP51 NIST SP500-267 Cybersecurity ETSI EN 303 645 |
|
Dimensions |
Height: 138 mm (5.4 in), ø 247 mm (9.7 in) |
|
Weight |
1.95 kg (4.3 lb) |
|
Included Accessories |
Installation Guide, Windows® decoder 1-user license, drill hole template, terminal block connectors, connector guard, bayonette screws |
|
Optional Accessories |
AXIS TM5601 Conduit Back Box |
|
Video Management |
AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese, Dutch, Czech, Swedish, Finnish, Turkish, Thai, Vietnamese |
|
Warranty |
5 year |
