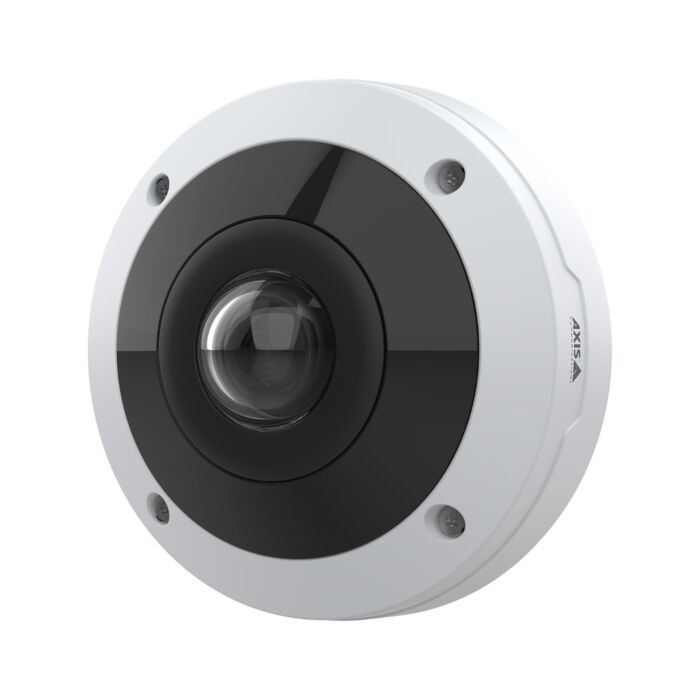

AXIS M4318-PLVE Panoramic Camera

Discover AXIS M4318-PLVE – a 12 MP panoramic camera with deep learning, built-in IR, and cybersecurity features. Revolutionize industrial security with advanced analytics on the edge.
SKU
M4318-PLVE

Revolutionizing Surveillance with AXIS M4318-PLVE Panoramic Camera

Introducing the AXIS M4318-PLVE Panoramic Camera – a cutting-edge solution in the industrial camera realm. This 12 MP dome camera offers a complete 180° and 360° overview, ensuring outstanding image quality in any lighting condition. Equipped with deep learning processing unit (DLPU), it supports advanced analytics on the edge, facilitating efficient data collection and analysis. The Sharpdome 360 and stereographic lens enhance sharpness, while the built-in IR with individually controllable LEDs ensures clear footage even in low light or darkness.

Connections are streamlined with virtual connectors, and the camera's support for ACAP version 4 allows tailored applications based on deep learning. Cybersecurity is a priority, thanks to built-in features like Axis Edge Vault, preventing unauthorized access. The compact design, delivered factory-focused for easy installation, includes digital roll functionality for remote camera rotation adjustment. With Axis Zipstream, bandwidth and storage requirements are significantly reduced. This panoramic camera is a game-changer for industrial and machine vision applications, offering not only security but also advanced analytics on the edge.

Features:

  • 12 MP dome with 360° view
  • Deep learning analytics on the edge
  • Built-in IR with individual LEDs
  • Cybersecurity features (Axis Edge Vault)
  • Digital roll for remote installation adjustment
  • Sharpdome 360 for enhanced sharpness
  • Support for ACAP version 4
  • Axis Zipstream for reduced bandwidth

Applications:

  • Industrial Surveillance
  • Machine Vision Systems
  • Security Monitoring
  • Advanced Analytics on the Edge
  • Critical Infrastructure Protection
  • Low Light and Darkness Environments
  • Customizable Applications with ACAP
  • Remote Installation Adjustment for Ease

Image Sensor

1/2.3” progressive scan RGB CMOS

Lens

Focal length: 1.1 mm, F2.2
Horizontal field of view: 182°
Vertical field of view: 182°
Fixed iris, IR corrected, fixed focus

Day & Night

Automatically removable infrared-cut filter

Minimum Illumination

Color: 0.19 lux at 50 IRE, F2.2
B/W: 0.04 lux at 50 IRE, F2.2
0 lux with IR illumination on

Shutter Time

1/8100 s to 0.5 s

Camera Angle Adjustment

Digital roll: ± 180°

Model

ARTPEC-8

Memory

2048 RAM, 8192 MB Flash

Compute Capabilities

Deep learning processing unit (DLPU)

Video Compression

H.264 (MPEG-4 Part 10/AVC) Main and High Profiles
H.265 (MPEG-HPart 2/HEVC) Main Profile
Motion JPEG

Resolutions

Overview: 2992x2992 to 160x160
Panorama: 3840x2160 to 192x72
Double Panorama: 3584x2688 to 512x288
Quad view: 3584x2688 to 384x288
View area 1-4: 2048x1536 to 256x144
Corner right and left: 3200x1200 to 192x72
Double corner: 2880x2880 to 384x288
Corridor: 2560x1920 to 256x144

Frame Rate

360° overview up to max resolution without WDR:
25/30 fps @50/60 Hz
360° overview and 4 dewarped views up to max resolution with WDR: up to 25/30 fps @50/60 Hz

Video Streaming

Multiple, individually configurable streams in H.264, H.265 and Motion JPEG
Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth
VBR/ABR/MBR H.264/H.265
Video streaming indicator

WDR

Forensic WDR: Up to 120 dB depending on scene

Noise Reduction

Spatial filter (2D noise reduction)
Temporal filter (3D noise reduction)

Image Settings

Saturation, contrast, brightness, sharpness, local contrast, tone mapping, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring, dynamic text and image overlay, polygon privacy mask

Image Processing

Axis Zipstream, Forensic WDR, Lightfinder, OptimizedIR

Pan/Tilt/Zoom

Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tours

Audio Features

Network speaker pairing

Audio input/ Output

Audio features through portcast technology: two-way audio connectivity, voice enhancer

Network Protocols

IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR

Application Programming Interface

Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK.
AXIS Guardian with One-Click Connection
ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S,
ONVIF® Profile T specification at onvif.org
Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX

Video Management Systems

Compatible with AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available at axis.com/vms

Onscreen Controls

Privacy Masks
IR illumination
Media Clip

Event Conditions

Device status: above operating temperature, above or below operating temperature, below operating temperature, casing open, IP address removed, live stream active, network lost, new IP address, system ready, within operating temperature
Edge storage: recording ongoing, storage disruption, storage health issues detected
I/O: digital input is active, digital output is active, manual trigger, virtual input is active
MQTT: stateless
Scheduled and recurring: schedule
Video: average bitrate degradation, day-night mode, tampering

Event Actions

Day-night mode: use while the rule is active
I/O: toggle once, toggle while the rule is active Illumination: use lights, use lights while the rule is active Images: FTP, HTTP, HTTPS, SFTP, email and network share MQTT: publish
Notification: HTTP, HTTPS, TCP and email
Overlay text: use, use while the rule is active
Recordings: record video, record video while the rule is active SNMP trap messages: send, send while the rule is active Status LED: flash, flash while the rule is active
Video clips: FTP, HTTP, HTTPS, SFTP, email and network share WDR mode: set, set while the rule is active

Built-in installations aids

Pixel counter, level grid, digital roll

AXIS Object Analysis

Object classes: humans, vehicles (types: cars, buses, trucks, bikes)
Trigger conditions: line crossing, object in area
Up to 10 scenarios
Metadata visualized with trajectories and color-coded bounding boxes
Polygon include/exclude areas
ONVIF Motion Alarm event

Metadata

Object data: Classes: humans, faces, vehicles (types: cars,buses, trucks,bikes), license plates
Attributes: Vehicle color, upper/lower clothing color, confidence, position
Event data: Producer reference, scenarios, trigger conditions

Applications

Included
AXIS Object Analytics, AXIS Video Motion Detection, active tampering alarm
Supported
AXIS People Counter
AXIS Camera Application Platform enabling installation of third-party applications

Edge Security

Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform
Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit)

Network Security

IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall

Casing

IP66-, NEMA 4X- and IK10-rated (IR window IK09) Polycarbonate hard coated dome
Aluminum
Color: white NCS S 1002-B
For repainting instructions of skin cover or casing and impact on warranty, contact your Axis partner.

Mounting

Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon)
¼”-20 UNC tripod screw thread

Power

Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 5.7 W, Max.: 12.95 W

Connectors

Network: Shielded RJ45 10BASE-T/100BASE-TX PoE
I/O: Terminal block for 1 supervised alarm input and 1 output (12 VDC output, max. load 25 mA)
Audio: Audio and I/O connectivity via portcast technology

IR Illumination

OptimizedIR with with power-efficient, long-life 850 nm IR LEDs
Range of reach 20 m (65.6 ft) or more depending on scene

Storage

Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit)
Recording to network-attached storage (NAS)

Operating Conditions

-40 °C to 50 °C (-40 °F to 122 °F)
Start-up temperature: -30 °C to 50 °C (-22 °F to 122 °F) Maximum temperature (intermittent): 55 °C (131 °F) Maximum temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F)
Humidity 10–100% RH (condensing)

Storage Conditions

-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing)

Approvals

EEN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547
Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A)
Japan: VCCI Class A
Korea: KS C 9835, KS C 9832 Class A
USA: FCC Part 15 Subpart B Class A
Railway: IEC 62236-4
Safety
IEC/EN/UL 62368-1 ed. 3, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN 62471 risk group exempt, UN ECE R118, IS 13252
Environment
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 62262 IK10, IEC/EN 60529 IP66, ISO 4892-2, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9), ISO 21207 (Method B)

Dimensions

Height: 70 mm (2.7 in) ø 149 mm (5.9 in)

Weight

860 g (1.9 lb)

Included Accessories

Camera, installation guide, terminal block connector, connector guard, cable gaskets, cable hole lid, owner authentication key

Optional Accessories

AXIS T8415 Wireless Installation Tool, AXIS T94T02D Pendant kit, AXIS TM3814 Skin Cover Black, AXIS TM3204 Recessed Mount, AXIS TM3206 Recessed Mount, AXIS Mounts and Cabinets, AXIS Surveillance Cards

Video Management Software

AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator

Languages

English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese

Warranty

Axis 5–year warranty
