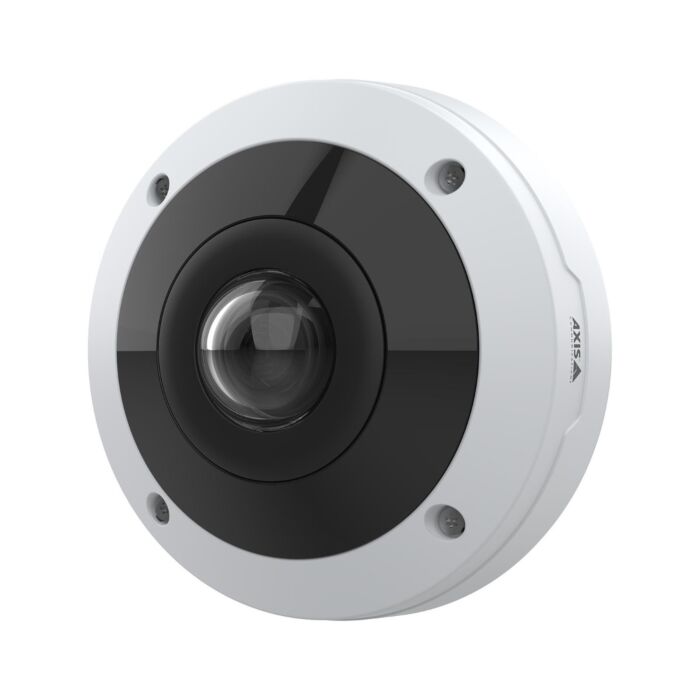

AXIS M4318-PLR Panoramic Camera
360° Panoramic Surveillance with AXIS M4318-PLR
Unlock unparalleled surveillance capabilities with the AXIS M4318-PLR, a cutting-edge 12 MP fisheye camera designed for industrial and machine vision applications. Engineered with Sharpdome technology, this camera ensures sharpness at the image edges, delivering outstanding clarity in diverse lighting conditions. The 360° panoramic view provides total situational awareness, making it optimal for surveillance onboard buses and industrial settings.
The AXIS M4318-PLR boasts built-in IR illumination with individual LEDs, ensuring clear and reflection-free footage even in low light or complete darkness. Its cybersecurity features, including Axis Edge Vault and Axis Zipstream, safeguard against unauthorized access while reducing bandwidth and storage requirements. The incorporation of a deep learning processing unit (DLPU) enhances forensic search capabilities, making it efficient and reliable.
This cost-efficient camera minimizes installation complexity with just one camera, cable, IP address, and video management software license. Its robust design withstands shock and vibrations, ensuring durability in demanding environments. Elevate your surveillance strategy with AXIS M4318-PLR, offering not just a camera but a comprehensive solution for industrial and machine vision needs.
Features:
- 12 MP fisheye camera
- Sharpdome technology
- 360° panoramic view
- Built-in IR illumination with individual LEDs
- Advanced analytics support
- Cybersecurity features (Edge Vault, Zipstream)
- Forensic WDR for image clarity
- Cost-efficient design
- Robust construction for durability
- Deep learning processing unit (DLPU) for efficient forensic search
Applications:
- Industrial surveillance
- Machine vision
- Onboard bus surveillance
- Total situational awareness
- Enhanced security in low-light conditions
- Cost-effective surveillance solutions
|
Image Sensor |
1/1.8” progressive scan RGB CMOS |
|
Lens |
Focal length: 1.1 mm, F2.2 |
|
Day & Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.16 lux at 50 IRE, F2.2 |
|
Shutter Time |
1/33500 s to 0.2 s |
|
Camera Angle Adjustment |
Digital roll: ± 180° |
|
Model |
ARTPEC-8 |
|
Memory |
2048 RAM, 8192 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
|
Resolutions |
Overview: 2160x2160 to 160x160 |
|
Frame Rate |
Up to 25/30 fps (50/60 Hz) in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
|
WDR |
Forensic WDR: Up to 120 dB depending on scene |
|
Noise Reduction |
Spatial filter (2D noise reduction) |
|
Image Settings |
Saturation, contrast, brightness, sharpness, local contrast, tone mapping, white balance, day/night threshold, exposure mode, exposure zones, compression, mirroring, dynamic text and image overlay, polygon privacy mask |
|
Image Processing |
Axis Zipstream, Forensic WDR, Lightfinder, OptimizedIR |
|
Pan/Tilt/Zoom |
Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tours |
|
Audio Features |
Network speaker pairing |
|
Audio input/ Output |
Audio features through portcast technology: two-way audio connectivity, voice enhancer |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSa, HTTP/2, TLSa, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, DHCPv4/v6, SSH, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Video Management Systems |
Compatible with AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners available at axis.com/vms |
|
Onscreen Controls |
Privacy Masks |
|
Event Conditions |
Device status: above operating temperature, above or below operating temperature, below operating temperature, casing open, IP address removed, live stream active, network lost, new IP address, system ready, within operating temperature |
|
Event Actions |
Day-night mode: use while the rule is active |
| Built-in installations aids |
Pixel counter, level grid, digital roll |
| AXIS Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars,buses, trucks,bikes), license plates |
| Applications |
Included |
| Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
| Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66-, NEMA 4X- and IK10-rated (IR window IK09) Polycarbonate hard coated dome |
|
Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 5.7 W, Max.: 12.95 W |
|
Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with with power-efficient, long-life 850 nm IR LEDs |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) |
|
Operating Conditions |
-40 °C to 50 °C (-40 °F to 122 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
|
Approvals |
EEN 55035, EN 55032 Class A, EN 50121-4, EN 61000-6-1, EN 61000-6-2, EN 61547 |
|
Dimensions |
Height: 70 mm (2.7 in) ø 149 mm (5.9 in) |
|
Weight |
860 g (1.9 lb) |
|
Included Accessories |
Camera, installation guide, terminal block connector, connector guard, cable gaskets, cable hole lid, owner authentication key |
|
Optional Accessories |
AXIS T8415 Wireless Installation Tool, AXIS T94T02D Pendant kit, AXIS TM3814 Skin Cover Black, AXIS TM3204 Recessed Mount, AXIS TM3206 Recessed Mount, AXIS Mounts and Cabinets, AXIS Surveillance Cards |
|
Video Management Software |
AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 5–year warranty |
