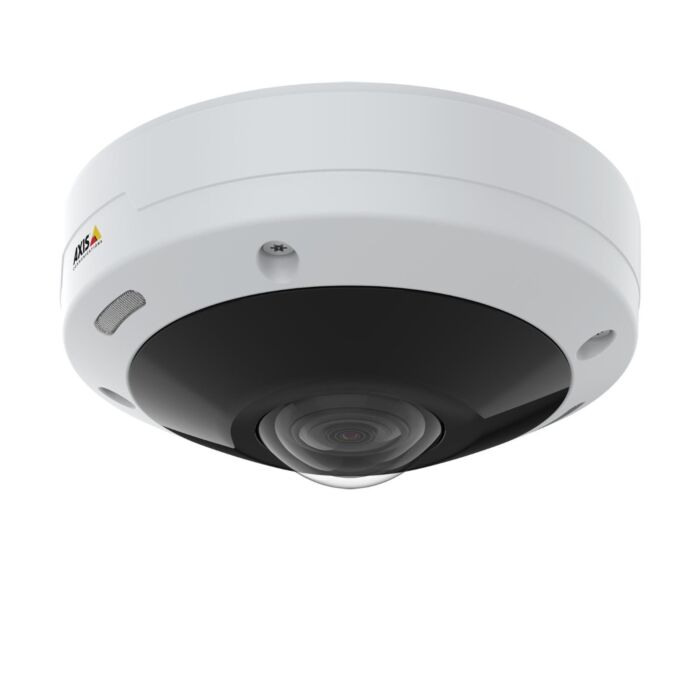

AXIS M4308-PLE Panoramic Camera
AXIS M4308-PLE Panoramic Camera: Revolutionizing Industrial Surveillance
Unleash the power of industrial surveillance with the AXIS M4308-PLE Panoramic Camera. This discreet outdoor-ready mini dome offers an outstanding 12 MP sensor with a 360° panoramic overview and audio capture capabilities. The stereographic lens and Sharpdome 360 technology ensure sharp images, especially at the edges, providing a comprehensive view around the clock. With Lightfinder, Forensic WDR, and OptimizedIR technologies, this camera excels in challenging light conditions and near darkness.
What sets AXIS M4308-PLE apart is its deep learning processing unit (DLPU), enabling advanced analytics on the edge. AXIS Object Analytics detects and classifies humans and vehicles, reducing false alarms. The forensic search functionality eliminates the hassle of scrolling through endless hours of video, allowing quick searches through hours of footage.
Secure your surveillance system with Axis Edge Vault, protecting device ID, and simplifying authorization. The camera's flat design blends seamlessly into any environment, and its digital roll functionality enables remote rotation adjustment. Axis Zipstream with H.264 and H.265 compression minimizes bandwidth and storage requirements. Elevate your industrial security with AXIS M4308-PLE, setting new standards in surveillance technology.
Features:
- 12 MP Sensor with 360° Overview
- Deep Learning Analytics with DLPU
- Stereographic Lens and Sharpdome 360
- Lightfinder, Forensic WDR, OptimizedIR
- AXIS Object Analytics for Human and Vehicle Detection
- Forensic Search Functionality
- Four Microphones with Voice Enhancer
- Axis Edge Vault Security
- Digital Roll Functionality
- Axis Zipstream with H.264 and H.265 Compression
Applications:
- Industrial Security Surveillance
- Machine Vision Systems
- Outdoor Surveillance
- Audio-Enhanced Monitoring
- Analytics-Based Detection
- 360° Panoramic Overview
- Challenging Light Conditions
- Edge-based Deep Learning
- Forensic Search for Quick Analysis
- Secure Surveillance Networks
|
Image Sensor |
1/1.7” progressive scan RGB CMOS |
|
Lens |
1.3 mm, F2.4 |
|
Day & Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.19 lux at 50 IRE, F2.4 |
|
Shutter Time |
1/22000 s to 1 s |
|
Camera Angle Adjustment |
Digital roll: ± 180° |
|
Model |
ARTPEC-7 |
|
Memory |
2 GB RAM, 1 GB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
|
Resolutions |
Overview: 2880x2880 to 160x160 |
|
Frame Rate |
360° overview only, up to 2880x2880 without WDR: 25/30 fps @ 50/60 Hz |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
|
Multi-view Streaming |
360° overview, dewarped panorama, corridor, corner left/right and quad views. Up to 4 individually cropped out and dewarped view areas. All different views can be streamed simultaneously. When streaming 4 dewarped view areas and one 360° overview in max resolution: up to 19 fps per stream. |
|
Image Settings |
Compression, color saturation, brightness, sharpness, contrast local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, dynamic text and image overlay, mirroring, digital roll, polygon privacy masks |
|
Pan/Tilt/Zoom |
Digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views, preset positions, guard tours |
|
Audio Streaming |
One-way, simplex, mono or stereo. Voice enhancement |
|
Audio Encoding |
LPCM 48 kHz, AAC-LC 8/16/32/44.1/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48 kHz Configurable bit rate |
|
Audio input/ Output |
4 built-in microphones (can be disabled), network speaker pairing |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMP, RTCP, ICMP, DHCPv4/v6, ARP, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata, and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Vision SDK. |
|
Onscreen Controls |
Day/night shift |
|
Event Conditions |
Analytics, edge storage events, virtual inputs through API, supervised external inputs, open casing, audio detection MQTT subscribe |
|
Event Actions |
Record video/audio: SD card and network share |
| Built-in installations aids |
Pixel counter, digital roll, repositioning of quad views, digital PTZ of view areas, digital PT of panorama, corner, corridor and quad views |
| AXIS Object Analysis |
Object classes: humans, vehicles (types: cars,buses, trucks, bikes) |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars,buses, trucks,bikes), license plates |
| Applications |
Included |
| Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
| Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP66-, NEMA 4X- and IK10-rated (IR window IK09) Polycarbonate hard coated dome |
|
Sustainability |
PVC Free |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 7.9 W, Max.: 15.5 W |
|
Connectors |
Shielded RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with with power-efficient, long-life 850 nm IR LEDs |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) |
|
Operating Conditions |
-40 °C to 50 °C (-40 °F to 122 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) Humidity 5–95% RH (non-condensing) |
|
Approvals |
EMC |
|
Cybersecurity |
ETSI EN 303 645 |
|
Dimensions |
Height: 69 mm (2.7 in) ø 149 mm (5.8 in) |
|
Weight |
850 g (1.9 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, cable gaskets, connector guard, I/O connector, RESISTORX® TR20 bit, mounting bracket, cable hole lid, view protector |
|
Optional Accessories |
AXIS T94T02D Pendant kit with weathershield |
|
Video Management Software |
AXIS Device Manager, AXIS Companion, AXIS Camera Station, video management software from Axis Application |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 5–year warranty |
