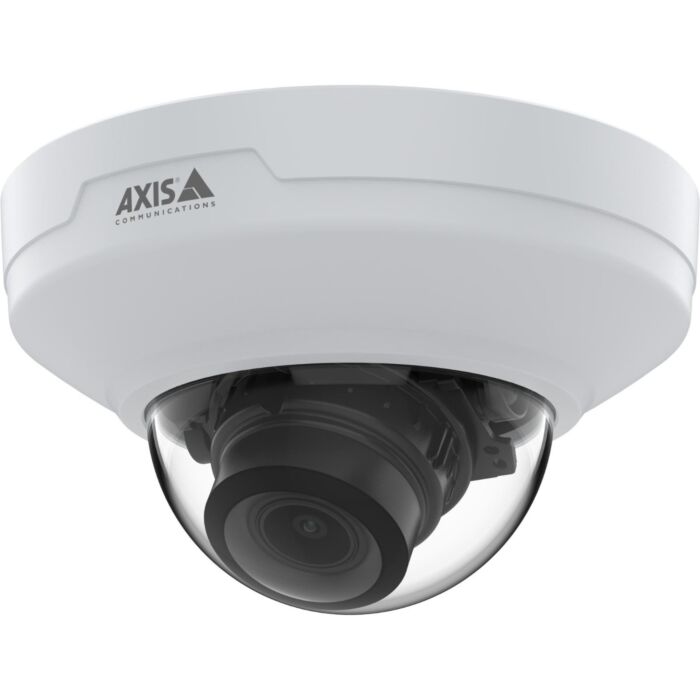

AXIS M4216-V Dome Camera
Unleashing Intelligence: AXIS M4216-V Dome Camera for Industrial Surveillance
Discover the AXIS M4216-V Dome Camera, a cutting-edge solution for industrial security and machine vision applications. With its varifocal 4 MP dome, this camera excels in delivering exceptional image quality, ensuring clarity in wide 4:3 and 3 MP for 16:9 views. The varifocal lens, coupled with remote zoom and auto focus capabilities, provides a flexible field of view, guaranteeing sharp high-resolution video with intricate details.
Equipped with Lightfinder and WDR technology, this discreet dome thrives in challenging lighting conditions, capturing crucial details. The integration of deep learning analytics on the edge enhances its intelligence, offering valuable metadata for efficient forensic searches. AXIS Edge Vault ensures the device's integrity with a hardware-based cybersecurity platform, safeguarding against unauthorized access.
Extend the possibilities with features like HDMI output, AXIS Face Detector, and AXIS Object Analytics, enhancing live monitoring and analytics capabilities. The compact design allows discreet installation, making it versatile for various environments. The IK08-rated camera, along with vandal, impact, and dust resistance, ensures durability and security. Elevate your surveillance system with the AXIS M4216-V - a blend of innovation, reliability, and advanced analytics for industrial and machine vision applications.
Features:
- Varifocal 4 MP dome with deep learning
- Remote zoom and auto focus capabilities
- Lightfinder and WDR technology
- AXIS Edge Vault cybersecurity
- HDMI output for public viewing
- Compact and discreet design
- Vandal, impact, and dust-resistant (IK08-rated)
Applications:
- Industrial security and surveillance
- Machine vision applications
- Indoor surveillance environments
- Live monitoring with public viewing
- Forensic search capabilities
- Deterrence of theft with face detection
- Audio and I/O connectivity options
|
Image Sensor |
1/2.7” progressive scan RGB CMOS |
|
Lens |
Varifocal, 3-6mm, F1.9-2.7 |
|
Day & Night |
Automatic IR-cut filter |
|
Minimum Illumination |
With Lightfinder: |
|
Shutter Time |
1/37500 s to 1/5 s |
|
Camera Angle Adjustment |
Pan±180°, tilt -40 to +65°, rotation ±105° |
|
Model |
CV25 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
|
Resolutions |
2034x1728 to 320x240 |
|
Frame Rate |
Up to 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
|
Video Streaming |
Multiple, individually configurable streams b |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
HDMI Output |
HDMI 1080p (16:9) @ 25/30 Hz refresh rate |
|
Image Settings |
Compression, color, brightness, sharpness, contrast, white balance, exposure control, motion-adaptive exposure, WDR: up to 110 dB depending on scene, text and image overlay, mirroring of images, privacy mask |
|
Pan/Tilt/Zoom |
Digital PTZ |
|
Audio input/ Output |
Audio features through port cast technology: two-way audio connectivity, voice enhancer |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 Diff Serv, FTP, SFTP, CIFS/SMB, SMTP, mDNS(Bonjour), UPnP®, SNMP v1/v2c/v3(MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTTv3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
|
Event Conditions |
Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, network lost, new IP address, system ready, within operating temperature |
|
Event Actions |
MQTT: publish |
| Built-in installations aids |
Remote zoom and focus |
| AXIS Object Analysis |
Object classes: humans, vehicles (types: cars,buses, trucks, bikes) |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars,buses, trucks,bikes), license plates |
| Applications |
Included |
| EMC |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 |
| Safety |
IEC/EN/UL 62368-1,CAN/CSA C22.2 No. 62368-1, IS 13252, IEC 62471 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network |
NIST SP500-267 |
| Cybersecurity |
ETSI EN 303 645 |
| Edge Security |
Software: Signed firmware, brute force delay protection,digest authentication and OAuth2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management,password protection,AES-XTS-Plain 64256 bit SD card encryption |
| Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS,TLSv1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP42 water- and dust-resistant, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 2.8 W, Max.: 4.4 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) |
|
Operating Conditions |
0 °C to 45 °C (32 °F to 113 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-22 °F to 149 °F) |
|
Dimensions |
Height: 71 mm (2.8 in) ø 121 mm (4.76 in) |
|
Weight |
350 g (0.77 lb) |
|
Optional Accessories |
AXIS TM3207 Recessed Mount |
|
Video Management Software |
AXIS Companion, AXIS Camera Station and video management software from Axis Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 5–year warranty |
