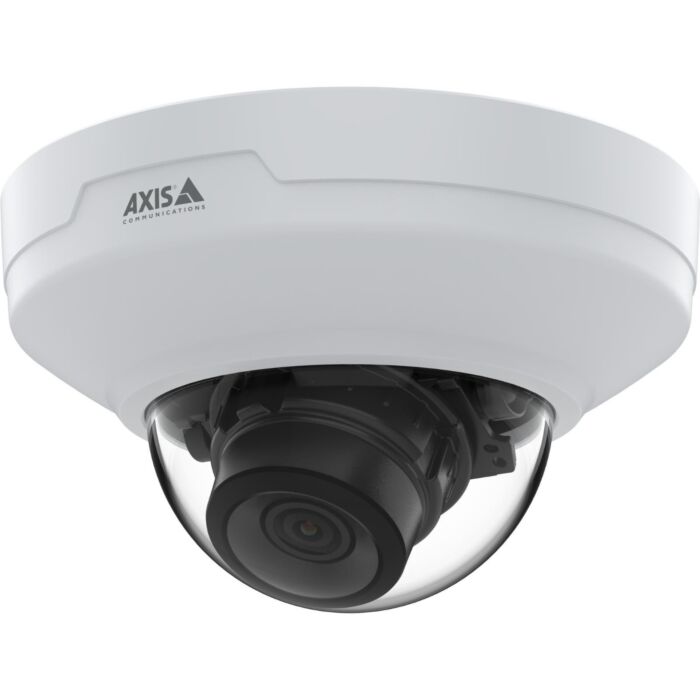

AXIS M4215-V Dome Camera
Revolutionize Surveillance with AXIS M4215-V Dome Camera
Unleash the power of AXIS M4215-V Dome Camera, a cutting-edge solution for industrial surveillance. This discreet dome is equipped with a varifocal 2 MP lens, offering unparalleled image quality even in challenging light conditions. The deep learning processing unit enables advanced analytics on the edge, ensuring real-time insights.
Featuring remote zoom and auto focus capabilities, this affordable camera delivers sharp high-resolution video with flexible field-of-view options. Lightfinder and WDR technology further enhance its performance in varying lighting scenarios. The inclusion of Axis Edge Vault provides a robust hardware-based cybersecurity platform, safeguarding the device from unauthorized access.
The AXIS M4215-V extends surveillance possibilities with an HDMI port, enabling live video display on public monitors. Face detection, audio connectivity, and I/O connectivity options add versatility to your surveillance system. Advanced analytics, including time-in-area feature, facilitate efficient forensic search capabilities.
Compact and discreet, this varifocal dome is designed for flexible installation, blending seamlessly into any environment. With IK08-rated protection against redirection, defocusing, and impact, this vandal-resistant camera ensures reliable security in diverse industrial and machine vision applications.
Features:
- Varifocal 2 MP dome with deep learning
- Remote zoom and auto focus
- Lightfinder and WDR technology
- HDMI output for public viewing
- AXIS Edge Vault cybersecurity
- Face detection and analytics
- Audio and I/O connectivity options
Applications:
- Industrial Surveillance
- Machine Vision
- Public Monitoring
- Forensic Search
- Face Detection for Theft Deterrence
- Audio-enhanced Surveillance
- Vandal-resistant Installations
|
Image Sensor |
1/2.8” progressive scan RGB CMOS |
|
Lens |
Varifocal, 3.5–6.6mm, F1.7-2.6 |
|
Day & Night |
Automatic IR-cut filter |
|
Minimum Illumination |
With Lightfinder: |
|
Shutter Time |
1/25000 s to 1/5 s |
|
Camera Angle Adjustment |
Pan±180°, tilt -40 to +65°, rotation ±105° |
|
Model |
CV25 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
|
Resolutions |
1920x1080 to 320x240 |
|
Frame Rate |
Up to 25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
|
Video Streaming |
Multiple, individually configurable streams b |
|
Image Settings |
Compression, brightness, sharpness, contrast, white balance, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, defogging, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270° including Corridor Format, dynamic overlay, 32 individual polygonal privacy mask, mirroring of images |
|
Pan/Tilt/Zoom |
Digital PTZ |
|
Audio input/ Output |
Audio features through port cast technology: two-way audio connectivity, voice enhancer |
|
Network Protocols |
IPv4, IPv6 USGv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 Diff Serv, FTP, SFTP, CIFS/SMB, SMTP, mDNS(Bonjour), UPnP®, SNMP v1/v2c/v3(MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, LLDP, CDP, MQTTv3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
|
Video Management Systems |
Compatible with AXIS Companion, AXIS Camera Station, video management software from AXIS Application Development Partners |
|
Onscreen Controls |
Privacy masks |
|
Event Conditions |
Application |
|
Event Actions |
Day-night mode |
| Built-in installations aids |
Pixel counter, remote zoom and focus, level grid |
| AXIS Object Analysis |
Object classes: humans, vehicles (types: cars,buses, trucks, bikes) |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars,buses, trucks,bikes), license plates |
| Applications |
Included |
| Product Markings |
CSA, UL/cUL, BIS, UKCA, CE, KC, VCCI, RCM |
| EMC |
CISPR 35, CISPR 32 Class A, EN 55035, EN 55032 Class A, EN 61000-6-1,EN 61000-6-2 |
| Safety |
IEC/EN/UL 62368-1,CAN/CSA C22.2 No. 62368-1, IS 13252 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network |
NIST SP500-267 |
| Cybersecurity |
ETSI EN 303 645 |
| Edge Security |
Software: Signed firmware, brute force delay protection,digest authentication and OAuth2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management,password protection,AES-XTS-Plain 64256 bit SD card encryption |
| Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS,TLSv1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP42 ingress protection, IK08 impact-resistant, polycarbonate and aluminum casing with hard-coated dome |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 2.7 W, Max.: 4.4 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) |
|
Operating Conditions |
0 °C to 45 °C (32 °F to 113 °F) |
|
Storage Conditions |
-30 °C to 65 °C (-22 °F to 149 °F) |
|
Dimensions |
Height: 71 mm (2.8 in) ø 120 mm (4.72 in) |
|
Weight |
348 g (0.77 lb) |
|
Optional Accessories |
AXIS T8415 Wireless Installation Tool |
|
System Tools |
AXIS Site Designer, AXIS Device Manager, product selector, accessory selector, lens calculator |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 5–year warranty |
