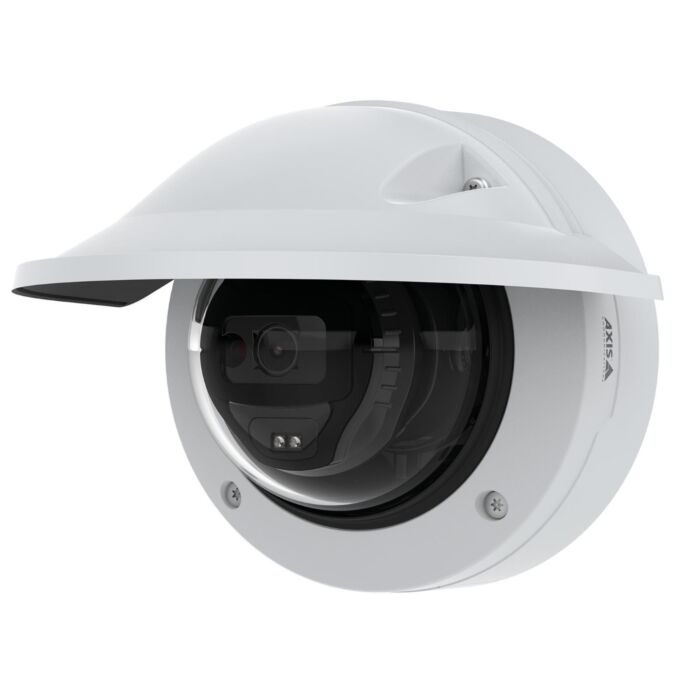

Axis M3216-LVE Dome Camera
Harness Unrivaled Security with Axis M3216-LVE Dome Camera
In the realm of industrial surveillance, the Axis M3216-LVE Dome Camera stands as a beacon of excellence. Boasting an affordable yet powerful 4 MP resolution, this fixed focal dome camera ensures exceptional image quality regardless of lighting conditions. Equipped with Axis Lightfinder for vivid color images in low light, Forensic WDR for clarity in challenging scenes, and OptimizedIR for surveillance in total darkness, it delivers unmatched performance.
Built on the advanced ARTPEC-8 platform, this camera supports edge analytics with a deep learning processing unit (DLPU). The integration of Axis Object Analytics allows precise detection and classification of humans, vehicles, and specific vehicle types, tailored to your requirements. The camera's audio and I/O connectivity provide additional layers of surveillance, enabling audio analytics and aggressive behavior detection.
Installation is seamless with Power over Ethernet (PoE) support and a versatile mounting bracket. The IK10-rated design, equipped with a weathershield, ensures durability against the elements. Axis M3216-LVE prioritizes cybersecurity with features like Axis Edge Vault, safeguarding your system from unauthorized access. Elevate your industrial surveillance with this cost-effective yet high-performance solution.
Features:
- 4 MP Resolution with Lightfinder Technology
- Forensic WDR for Scene Clarity
- OptimizedIR for Total Darkness Surveillance
- Advanced Edge Analytics with DLPU
- Audio and I/O Connectivity
- Cybersecurity Features with Axis Edge Vault
Applications:
- Industrial Surveillance
- Machine Vision Systems
- Critical Area Monitoring
- Perimeter Security
- Access Control
- Audio Analytics for Behavior Detection
| Image Sensor | 1/2.7” progressive scan RGB CMOS |
| Lens | 2.9 mm, F2.0 Horizontal field of view: 102° Vertical field of view: 73° Minimum focus distance: 1.0 m (3.3 ft) Fixed iris, IR corrected |
| Day and Night | Automatic IR-cut filter Hybrid IR filter |
| Minimum Illumination | With WDR and Lightfinder: Color: 0.16 lux at 50 IRE, F2.0 B/W: 0 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/50000 s to 1/5 s |
| Camera Angle Adjustment | Pan ±190°, tilt -10 to +80°, rotation ±190° |
| Model | ARTPEC-8 |
| Memory | 1024MB RAM,8192 MB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video Compression | H.264 (MPEG-4 Part10/AVC) Baseline, Main and High Profiles H.265 (MPEG-HPart2/HEVC) Main Profile Motion JPEG |
| Resolutions | 16:9: 1920x1080 to 160x90 4:3: 2034x1728 to 160x120 |
| Frame Rate | Up to 30/25 fps (60/50Hz) in all resolutions |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBRH.264/H.265 Low latency mode |
| Multi-view Streaming | Up to 8 individually cropped ou tview areas |
| Image Settings | Saturation,contrast,brightness,sharpness,ForensicWDR: Up to 120dB depending on scene,white balance,day/night threshold, local contrast, tone mapping,exposure mode,exposure zones, defogging,barrel distortion correction,compression,rotation:0°, 90°,180°,270°including Corridor Format,mirroring,dynamic text and image overlay,polygon privacy mask |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio Streaming | Two-way audio via edge-to-edge technology |
| Audio Encoding |
AAC 8/16/32/44.1/48 kHz, G.711 8 kHz, G.726 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz Configurable bit rate |
| Audio Input/Output |
External microphone input or line input, ring power, digital audio input, automatic gain control Network speaker pairing |
| Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645 |
| Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection Hardware: Axis Edge Vault cybersecurity platform |
| Network Security | IEEE802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents,go to axis.com/support/cybersecurity/resources |
| Casing |
IP66-, NEMA 4X- and IK10-rated Polycarbonate hard-coated dome Plastic casing, sunshield (PC/ASA) Color: white NCS S 1002-B |
| Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount ½” (M20) or ¾” (M25) conduit side entry, with conduit adapter |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.8 W, max 10.4 W |
| Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA) Audio: 3.5 mm mic/line in |
| IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Storage |
Support for microSD/microSDHC/microSDXC card and encryption |
| Onscreen Controls |
Day/night shift Defogging Wide dynamic range Video streaming indicator IR illumination Enable-disable all privacy masks Play media clip |
| Event Conditions |
Analytics, external input, supervised external input, virtual inputs through API Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay I/O: digital input, manual trigger, virtual input Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active, casing open Call: state, state change Video: average bitrate degradation, day-night mode, live stream open, tampering Audio: audio detection, audio clip playing, audio clip currently playing Edge storage: recording ongoing, storage disruption, storage health issues detected Scheduled and recurring: schedule MQTT: stateless |
| Event Actions |
Overlay text, day/night mode, flash status LED, use lights, set defog mode, set WDR mode I/O: toggle I/O once, toggle I/O while the rule is active MQTT: publish Notification: HTTP, HTTPS, TCP and email Audio clips: play, stop Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Calls: answer call, end SIP call, make SIP call SNMP traps: send, send while the rule is active |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel counter, straighten image, level grid |
| Axis Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area Up to 10 scenarios Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Applications |
Included AXIS Live Privacy Shield Supported |
| EMC |
EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KC KN35KC, KN32 Class A USA: FCC Part 15 Subpart B Class A |
| Safety |
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471 risk group exempt, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Operating Conditions | -40° C to 50° C (–40° F to 122° F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40°C to 65°C (-40°F to 149°F) Humidity 5–95% RH (non-condensing) |
| Dimensions | Without weathershield: Height: 102mm(4.0in) ø149mm(5.9in) |
| Weight | With weathershield: 791g (1.74lb) |
| Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, RESISTORX® TR20 bit, terminal block connector, cable gaskets, connector guard, weathershield |
| Optional Accessories |
AXIS TP3823-E Weathershield Black AXIS TP3821-E Casing Black AXIS TM3815-E Dome Smoked AXIS Surveillance Cards |
| Video Management Software | AXIS Companion, AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | 5–year warranty |
