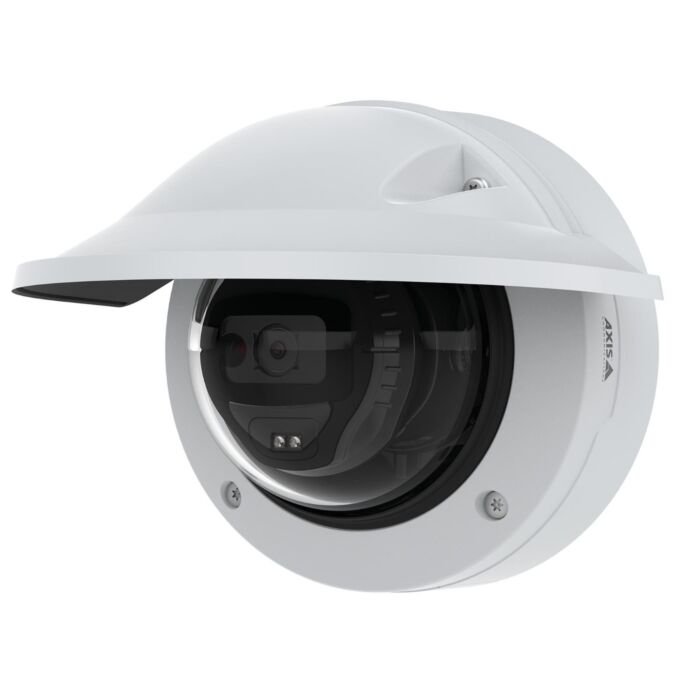

Axis M3215-LVE Dome Camera
Advanced Surveillance with Axis M3215-LVE Dome Camera
Unleash the power of advanced surveillance with the Axis M3215-LVE Dome Camera. This cost-effective fixed focal dome excels in delivering excellent image quality under any light conditions. Boasting 2 MP resolution and Axis Lightfinder technology, it ensures sharp color images even in low light. With Forensic WDR and OptimizedIR, clarity is maintained in scenes with varying light conditions, and surveillance extends into total darkness. The camera is built on the ARTPEC-8 processor, featuring a deep learning processing unit for advanced edge analytics. Axis Object Analytics enables detection and classification of humans, vehicles, and more. The camera supports ACAP version 4 for tailor-made applications based on deep learning on the edge.
Audio and I/O connectivity enhance the surveillance experience, allowing you to listen in on scenes and utilize audio analytics. The camera, with PoE installation and an IK10-rated weathershield, provides easy setup and weather protection. Its built-in cybersecurity features, including Axis Edge Vault, safeguard against unauthorized access. Axis M3215-LVE is your solution for high-performance industrial and machine vision applications, offering affordability without compromising on quality.
Features:
- 2 MP Resolution
- Lightfinder, Forensic WDR, OptimizedIR
- ARTPEC-8 Processor with DLPU
- Audio and I/O Connectivity
- Built-in Cybersecurity
- Edge Analytics with AXIS Object Analytics
Applications:
- Industrial Security
- Machine Vision
- Surveillance in Low Light
- Total Darkness Surveillance
- Audio Analytics for Scene Monitoring
| Image Sensor | 1/2.9” progressive scan RGB CMOS |
| Lens | 3.1 mm, F2.0 Horizontal field of view: 101° Vertical field of view: 55° Minimum focus distance: 1.0 m (3.3 ft) Fixed iris, IR corrected |
| Day and Night | Automatic IR-cut filter Hybrid IR filter |
| Minimum Illumination | With WDR and Lightfinder: Color: 0.14 lux at 50 IRE, F2.0 B/W: 0 lux at 50 IRE, F2.0 0 lux with IR illumination on |
| Shutter Speed | 1/37000 s to 2 s |
| Camera Angle Adjustment | Pan ±190°, tilt -10 to +80°, rotation ±190° |
| Model | ARTPEC-8 |
| Memory | 1024MB RAM,8192 MB Flash |
| Compute Capabilities | Deep learning processing unit (DLPU) |
| Video Compression | H.264 (MPEG-4 Part10/AVC) Baseline, Main and High Profiles H.265 (MPEG-HPart2/HEVC) Main Profile Motion JPEG |
| Resolutions | 16:9: 1920x1080 to 160x90 |
| Frame Rate | Up to 30/25 fps (60/50Hz) in all resolutions |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265, and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBRH.264/H.265 Low latency mode |
| Multi-view Streaming | Up to 8 individually cropped ou tview areas |
| Image Settings | Saturation,contrast,brightness,sharpness,ForensicWDR: Up to 120dB depending on scene,white balance,day/night threshold, local contrast, tone mapping,exposure mode,exposure zones, defogging,barrel distortion correction,compression,rotation:0°, 90°,180°,270°including Corridor Format,mirroring,dynamic text and image overlay,polygon privacy mask |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio Streaming | Two-way audio via edge-to-edge technology |
| Audio Encoding |
AAC 8/16/32/44.1/48 kHz, G.711 8 kHz, G.726 8 kHz, Opus 8/16/48 kHz, LPCM 48 kHz Configurable bit rate |
| Audio Input/Output |
External microphone input or line input, ring power, digital audio input, automatic gain control Network speaker pairing |
| Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; One-click cloud connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Network | NIST SP500-267 |
| Cybersecurity | ETSI EN 303 645 |
| Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection Hardware: Axis Edge Vault cybersecurity platform Secure element (CC EAL 6+), system-on-chip security (TEE), Axis device ID, secure keystore, signed video, secure boot, encrypted filesystem (AES-XTS-Plain64 256bit) |
| Network Security | IEEE802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
| Documentation | AXIS OS Hardening Guide Axis Vulnerability Management Policy Axis Security Development Model AXIS OS Software Bill of Material (SBOM) To download documents,go to axis.com/support/cybersecurity/resources |
| Casing |
IP66-, NEMA 4X- and IK10-rated Polycarbonate hard-coated dome Plastic casing, sunshield (PC/ASA) Color: white NCS S 1002-B |
| Mounting |
Mounting bracket with junction box holes (double-gang, single-gang, and 4” octagon) and for wall or ceiling mount ½” (M20) or ¾” (M25) conduit side entry, with conduit adapter |
| Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical 4.8 W, max 10.4 W |
| Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE I/O: 4-pin 2.5 mm (0.098 in) terminal block for 1 supervised digital input and 1 digital output (12 V DC output, max. load 25 mA) Audio: 3.5 mm mic/line in |
| IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LEDs |
| Storage |
Support for microSD/microSDHC/microSDXC card and encryption |
| Onscreen Controls |
Day/night shift Defogging Wide dynamic range Video streaming indicator IR illumination Enable-disable all privacy masks Play media clip |
| Event Conditions |
Analytics, external input, supervised external input, virtual inputs through API Digital audio: digital signal contains Axis metadata, digital signal has invalid sample rate, digital signal missing, digital signal okay I/O: digital input, manual trigger, virtual input Device status: above operating temperature, above or below operating temperature, below operating temperature, within operating temperature, IP address removed, new IP address, network lost, system ready, ring power overcurrent protection, live stream active, casing open Call: state, state change Video: average bitrate degradation, day-night mode, live stream open, tampering Audio: audio detection, audio clip playing, audio clip currently playing Edge storage: recording ongoing, storage disruption, storage health issues detected Scheduled and recurring: schedule MQTT: stateless |
| Event Actions |
Overlay text, day/night mode, flash status LED, use lights, set defog mode, set WDR mode I/O: toggle I/O once, toggle I/O while the rule is active MQTT: publish Notification: HTTP, HTTPS, TCP and email Audio clips: play, stop Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email Pre- and post-alarm video or image buffering for recording or upload Calls: answer call, end SIP call, make SIP call SNMP traps: send, send while the rule is active |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel counter, straighten image, level grid |
| Axis Object Analysis |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) Scenarios: line crossing, object in area, crossline counting, occupancy in area, time in area Up to 10 scenarios Metadata visualized with trajectories, color-coded bounding boxes and tables Polygon include/exclude areas Perspective configuration ONVIF Motion Alarm event |
| Applications |
Included AXIS Live Privacy Shield Supported |
| EMC |
EN 55032 Class A, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Japan: VCCI Class A Korea: KC KN35KC, KN32 Class A USA: FCC Part 15 Subpart B Class A |
| Safety |
IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471 risk group exempt, IS 13252 |
| Environment | IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA TS 2 (2.2.7-2.2.9) |
| Operating Conditions | -40° C to 50° C (–40° F to 122° F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40°C to 65°C (-40°F to 149°F) Humidity 5–95% RH (non-condensing) |
| Dimensions | Without weathershield: Height: 102mm(4.0in) ø149mm(5.9in) |
| Weight | With weathershield: 783g (1.73lb) |
| Included Accessories |
Installation guide, Windows® decoder 1-user license, drill hole template, RESISTORX® TR20 bit, terminal block connector, cable gaskets, connector guard, weathershield |
| Optional Accessories |
AXIS TP3823-E Weathershield Black AXIS TP3821-E Casing Black AXIS TM3815-E Dome Smoked AXIS Surveillance Cards |
| Video Management Software | AXIS Companion, AXIS Camera Station and video management software from Axis’ Application Development Partners (not included) |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | 5–year warranty |
