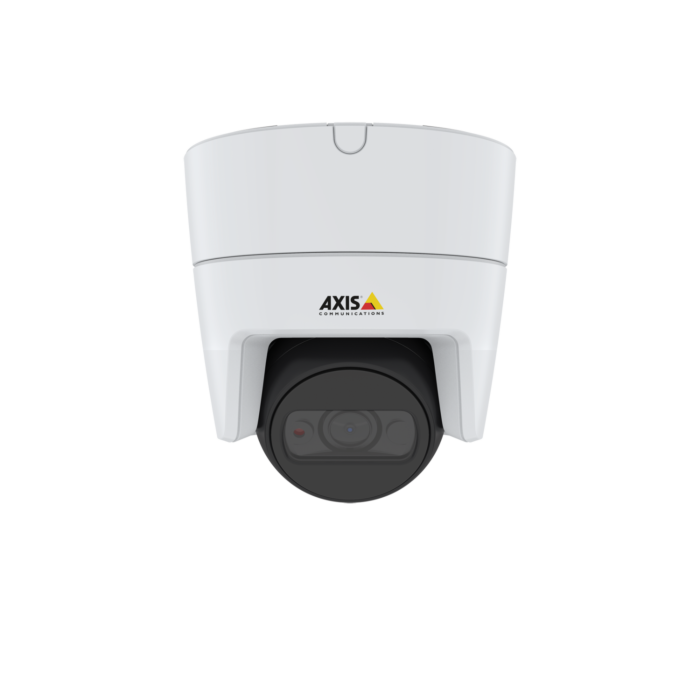

AXIS M3115-LVE Network Camera
Affordable flat-faced 1080p dome with IR
SKU
M3115-LVE
AXIS M3115-LVE is an affordable, flat-faced dome that offers HDTV 1080p video and an excellent wide-angle view. This compact and discreet camera includes IR illumination for sharp video even in challenging light or complete darkness. It’s ideal for surveillance in a wide range of locations, including hotels, restaurants, retail stores, and offices.
Features:
- HDTV 1080p video quality
- Forensic WDR, Lightfinder and IR illumination
- Zipstream supporting H.264 and H.265
- Signed firmware and secure boot
- Flat-faced design suppressing light reflections
Applications:
- Security
- Surveillance
- Stores
- Hotels
- Schools
- Banks
- Offices
- Warehouse
- Parking Lots
- Airports
| Image Sensor | 1/2.9” progressive scan RGB CMOS |
| Lens |
2.8 mm, F2.0 |
| Day and Night |
Automatically removable infrared-cut filter |
| Minimum Illumination |
Color: 0.17 lux at 50 IRE, F2.0 |
| Shutter Time |
1/33500 s to 2 s |
| Camera Angle Adjustment |
Pan: ±180° |
| Model |
ARTPEC-7 |
| Memory |
512 MB RAM, 512 MB Flash |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
| Resolutions | 1920x1080 to 160x90 |
| Frame Rate | Up to 25/30 fps with power line frequency 50/60 Hz |
| Video Streaming | Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
| Multi-view Streaming | Up to 2 individually cropped out view areas in full frame rate |
| Image Settings | Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, defogging, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270° including Corridor Format |
| Pan/Tilt/Zoom | Digital PTZ |
| Audio Input/Output | Two-way audio connectivity via the optional AXIS T61 Audio and I/O Interfaces with portcast technology |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1x (EAP-TLS) a network access control, Digest authentication, User access log, Centralized Certificate Management, brute force delay protection, signed firmware, secure boot |
| Supported Protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com One-Click Cloud Connection ONVIF® Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T, specification at onvif.org Support for Session Initiation Protocol (SIP) for integration with Voice over IP (VoIP) systems, peer to peer or integrated with SIP/PBX. |
| Event Triggers | Analytics, Edge storage events, Virtual inputs through API |
| Event Actions | Record video: SD card and network share Upload of images or video clips: FTP, SFTP, HTTP, HTTPS, network share, and email Pre- and post-alarm video or image buffering for recording or upload Notification: email, HTTP, HTTPS, TCP, and SNMP trap Overlay text |
| Data Streaming | Event Data |
| Built-in installation aids | Pixel counter, adjustable IR-illumination intensity |
| Applications | AXIS Motion Guard, AXIS Fence Guard, AXIS Loitering Guard AXIS Video Motion Detection, active tampering alarm Support for AXIS Camera Application |
| Casing | IP66/IP67- and NEMA 4X-rated, IK08 impact-resistant casing Encapsulated electronics and captive screws (Torx 10) Color: white NCS S 1002-B |
| Sustainability | PVC-free |
| Power | Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3 Typical: 3.7 W, Max.: 8.7 W |
| Connectors | RJ45 10BASE-T/100BASE-TX PoE Audio and I/O connectivity via the optional AXIS T61 Audio and I/O Interfaces with portcast technology |
| IR Illumination | Power-efficient, long-life 850 nm IR LED. Range of reach 20 m (65 ft) or more depending on the scene |
| Storage | Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
| Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F) Start-up temperature: -20 °C to 50 °C (-4 °F to 122 °F) Humidity 10–100% RH (condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 5-95% RH (non-condensing) |
| Approvals | EMC EN 55024, EN 55032 Class A, EN 55035, EN 61000-6-1,EN 61000-6-2, FCC Part 15 Subpart B Class A, KC KN32 Class A, KC KN35, RCM AS/NZS CISPR 32 Class A, ICES-3(A)/NMB-3(A), VCCI Class A Environment IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78, IEC 60068-2-14, IEC 60068-2-6, IEC 60068-2-27 IEC/EN 62262 IK08, IEC/EN 60529 IP66/IP67, NEMA 250 Type 4X Safety IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEC/EN 62471, IS 13252 Network NIST SP500-267, IPv6 USGv6 |
| Dimensions | Height: 94 mm (3.7 in) ø 101 mm (4.0 in) |
| Weight | 390 g (0.85 lb) |
| Included Accessories | Installation Guide, Windows decoder 1-user license, Torx® L-key, Connector guard, Cable gasket |
| Optional Accessories | AXIS T94B02D Pendant kit, AXIS T94B01P Conduit Back Box, AXIS T94B02M J-Box/Gang Box Plate, AXIS TM3807 Black Casing, Axis Mounts, AXIS Surveillance microSDXC™ Card, AXIS Weathershield Kit C, AXIS T61 Audio and I/O Interface Series |
| Video Management Software | AXIS Companion, AXIS Camera Station, video management software from Axis’ Application Development Partners |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3–year warranty and AXIS Extended Warranty |
