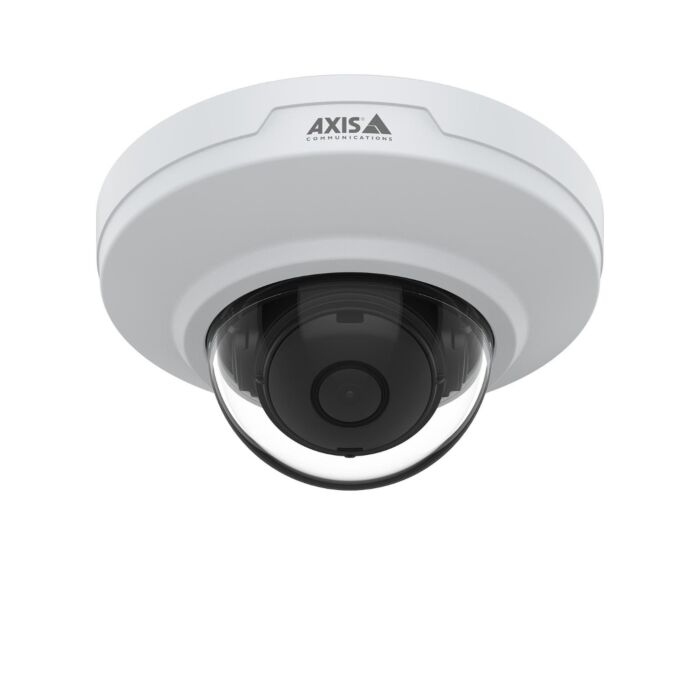

AXIS M3088-V Dome Camera
Revolutionizing Industrial Security: AXIS M3088-V Dome Camera
Unleash the power of AXIS M3088-V Dome Camera, a cost-efficient, compact solution tailored for industrial and machine vision applications. This fixed 8 MP mini dome excels in delivering exceptional image quality, especially in challenging lighting scenarios, thanks to its Wide Dynamic Range (WDR) technology. With a factory-focused fixed field of view, manual focusing becomes obsolete, ensuring simplicity in installation.
The camera extends possibilities with support for deep learning analytics on the edge, offering valuable metadata for efficient forensic search capabilities. AXIS Object Analytics, preinstalled for object detection, enhances your surveillance tailored to specific needs. Additionally, ACAP support allows the integration of custom applications, providing flexibility.
Compact and vandal-resistant, the AXIS M3088-V comes with a bayonet-fitted casing for easy installation. Its cybersecurity features, including Axis Edge Vault, ensure device security on the network. The camera embraces Axis Zipstream with H.264/H.265 for reduced bandwidth and storage, and edge storage for direct recording to an onboard memory card.
Features:
- 8 MP image quality
- Wide Dynamic Range (WDR)
- Deep learning analytics
- ACAP support
- Compact and vandal-resistant design
- Axis Zipstream with H.264/H.265
- Edge storage for onboard recording
- Axis Edge Vault cybersecurity
Applications:
|
Image Sensor |
1/2.7” progressive scan RGB CMOS |
|
Lens |
2.4 mm, F2.1 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Lightfinder: |
|
Shutter Time |
1/38500 s to 1/5 s |
|
Camera Angle Adjustment |
Pan: ±175° |
|
Model |
CV25 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
|
Resolutions |
2688x1512 (4 MP) to 320x240 |
|
Frame Rate |
25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, defogging, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270° including Corridor Format |
|
Pan/Tilt/Zoom |
Digital PTZ |
|
Audio Streaming |
Audio output via edge-to-edge technology |
|
Audio Input/Output |
Audio features through portcast technology: two-way audio connectivity, voice enhancer |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
|
Event Conditions |
Device status: above operating temperature,above or below operating temperature, below operating temperature, IP address removed, live stream active, network lost, new IP address, system ready, within operating temperature |
|
Event Actions |
Notification: HTTP, HTTPS, TCP and email |
| Built-in installations aids |
Pixel counter |
| AXIS Object Analysis |
Object classes: humans, vehicles (types: cars,buses, trucks, bikes) |
| Metadata |
Object data: Classes: humans, faces, vehicles (types: cars,buses, trucks,bikes), license plates |
| Applications |
Included |
| EMC |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/NewZealand: RCM AS/NZS CISPR 32 Class A |
| Safety |
IEC/EN/UL 62368-1 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network |
NIST SP500-267 |
| Cybersecurity |
ETSI EN 303 645 |
| Edge Security |
Software: Signed firmware, brute force delay protection,digest authentication and OAuth2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management,password protection,AES-XTS-Plain 64256 bit SD card encryption |
| Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS,TLSv1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP 42 water-and dust-resistant (to comply with IP42, follow Installation Guide), IK08 impact-resistant, polycarbonate/ABS casing |
|
Sustainability |
57% recycled plastics, PVC-free, BFR/CFR Free |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 3.6 W, Max.: 4.2 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
0 °C to 45 °C (32 °F to 113 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Dimensions |
Height: 56 mm (2.2 in) ø 101 mm (4.0 in) |
|
Weight |
150 g (0.33 lb) |
|
Included Accessories |
Installation Guide, Windows decoder 1-user license |
|
Optional Accessories |
AXIS TM3812 Tamper Cover |
|
Video Management Software |
AXIS Companion, AXIS Camera Station and video management software from Axis Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 5–year warranty |
