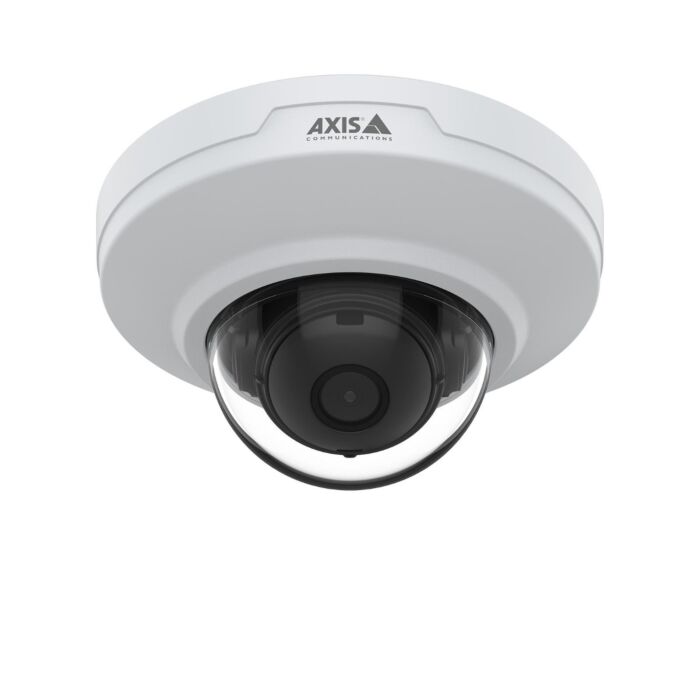

AXIS M3085-V Dome Camera
Unlock Advanced Security with AXIS M3085-V Dome Camera
Discover the AXIS M3085-V Dome Camera, a cost-efficient solution designed for industrial security and machine vision applications. With its fixed 2 MP mini dome and deep learning capabilities, this camera delivers outstanding image quality, even in challenging light conditions. The Wide Dynamic Range (WDR) ensures clarity in scenes with varying light levels, and the Lightfinder technology provides sharp, color images in low-light environments. The camera's built-in deep learning processing unit supports intelligent analytics on the edge, offering valuable metadata for efficient forensic searches.
The AXIS M3085-V is compact and cost-efficient, featuring a vandal-resistant design for discreet installation. It supports ACAP for tailored applications, and its flexibility extends to audio or I/O connectivity. The bayonet-fitted casing allows fast and convenient installation, and Axis Zipstream with H.264/H.265 compression reduces bandwidth and storage requirements. With edge storage capabilities, you can record directly to an onboard memory card, and Axis Edge Vault enhances cybersecurity. Elevate your security with this versatile dome camera, perfect for industrial and machine vision scenarios.
Features:
- Fixed 2 MP mini dome with deep learning
- WDR and Lightfinder technology
- Intelligent analytics with deep learning on the edge
- Vandal-resistant design
- Axis Zipstream with H.264/H.265 compression
- Edge storage capabilities
- ACAP support for tailored applications
Applications:
- Industrial security
- Machine vision
- Forensic analysis
- Intelligent surveillance
- Challenging light conditions
- Cost-efficient security solutions
|
Image Sensor |
1/2.9” progressive scan RGB CMOS |
|
Lens |
3.1 mm, F2.0 |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
With Lightfinder: |
|
Shutter Time |
1/9000 s to 1/5 s |
|
Camera Angle Adjustment |
Pan: ±175° |
|
Model |
CV25 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Main and High Profiles |
|
Resolutions |
1920x1080 to 320x240 |
|
Frame Rate |
25/30 fps with power line frequency 50/60 Hz in H.264 and H.265a |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG Axis Zipstream technology in H.264 and H.265 Controllable frame rate and bandwidth VBR/ABR/MBR H.264/H.265 |
|
Multi-view Streaming |
Up to 2 individually cropped out view areas in full frame rate |
|
Image Settings |
Compression, color saturation, brightness, sharpness, contrast, local contrast, white balance, day/night threshold, tone mapping, exposure control (including automatic gain control), exposure zones, Forensic WDR: up to 120 dB depending on scene, fine tuning of low-light behavior, defogging, dynamic text and image overlay, privacy masks, mirroring, rotation: 0°, 90°, 180°, 270° including Corridor Format |
|
Pan/Tilt/Zoom |
Digital PTZ |
|
Audio Streaming |
Audio output via edge-to-edge technology |
|
Audio Input/Output |
Audio features through portcast technology: two-way audio connectivity, voice enhancer |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPSa , TLSa , QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP® , SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SOCKS, SSH, SIP, LLDP, CDP, MQTT v3.1.1, Syslog, Link-Local address (ZeroConf) |
|
Application Programming Interface |
Open API for software integration, including VAPIX® and AXIS Camera Application Platform; specifications at axis.com |
|
Event Conditions |
Device status: above operating temperature,above or below operating temperature, below operating temperature, IP address removed, live stream active, network lost, new IP address, system ready, within operating temperature |
|
Event Actions |
Notification: HTTP, HTTPS, TCP and email |
| Built-in installations aids |
Pixel counter |
| Applications |
Included |
| EMC |
EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/NewZealand: RCM AS/NZS CISPR 32 Class A |
| Safety |
IEC/EN/UL 62368-1 |
| Environment |
IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78, IEC/EN 60529 IP42, IEC/EN 62262 IK08 |
| Network |
NIST SP500-267 |
| Cybersecurity |
ETSI EN 303 645 |
| Edge Security |
Software: Signed firmware, brute force delay protection,digest authentication and OAuth2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management,password protection,AES-XTS-Plain 64256 bit SD card encryption |
| Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AR, HTTPS/HSTS,TLSv1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Casing |
IP 42 water-and dust-resistant (to comply with IP42, follow Installation Guide), IK08 impact-resistant, polycarbonate/ABS casing |
|
Sustainability |
57% recycled plastics, PVC-free, BFR/CFR Free |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical: 3.6 W, Max.: 4.2 W |
|
Connectors |
RJ45 10BASE-T/100BASE-TX PoE |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
0 °C to 45 °C (32 °F to 113 °F) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Dimensions |
Height: 56 mm (2.2 in) ø 101 mm (4.0 in) |
|
Weight |
150 g (0.33 lb) |
|
Included Accessories |
Installation Guide, Windows decoder 1-user license |
|
Optional Accessories |
AXIS TM3812 Tamper Cover |
|
Video Management Software |
AXIS Companion, AXIS Camera Station and video management software from Axis Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 5–year warranty |
