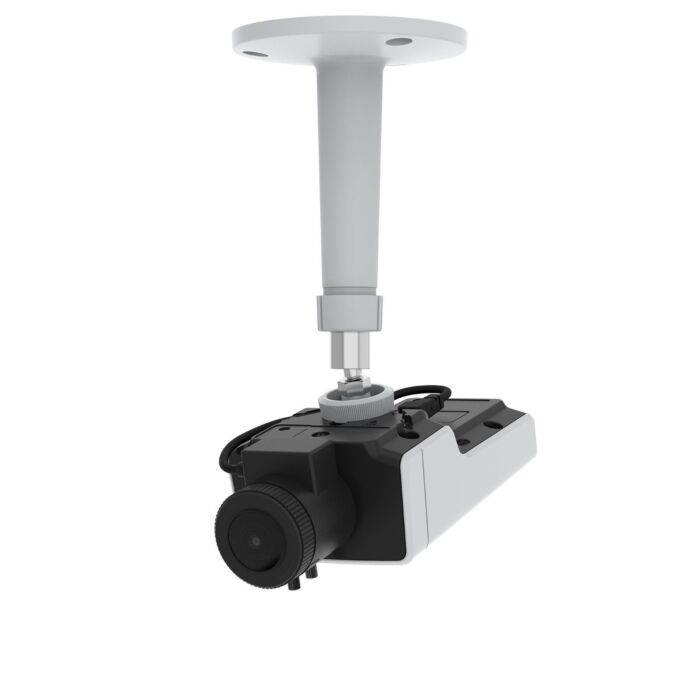

AXIS M1135 MK II Box Camera
Exceptional Features of AXIS M1135 Mk II Box Camera
Discover the AXIS M1135 Mk II Box Camera, an affordable and compact surveillance solution tailored for industrial and security applications. Boasting a 2 MP resolution, this camera ensures superb image quality, even in challenging low-light conditions. The compact and flexible design makes it a visible deterrent, discouraging trespassing and unwanted activities.
The camera comes equipped with Lightfinder technology, providing true-color images in low-light scenarios. Additionally, Forensic WDR ensures clarity in scenes with varying light conditions. Its built-in microphone allows for audio recording in a fixed area, enhancing overall surveillance capabilities.
Installation is a breeze with support for Power over Ethernet (PoE) and redundant DC power. The camera includes signed firmware and secure boot for enhanced security, ensuring only authorized firmware is installed. Axis Zipstream with H.264/H.265 support reduces bandwidth and storage requirements.
AXIS M1135 Mk II features preinstalled AXIS Object Analytics, facilitating the detection and classification of humans and vehicles. The CS-mount supports motorized i-CS lenses for remote zoom and focus control. This camera is designed for deterrence, providing a clearly visible, fixed angle of view to prevent potential offenders. Ideal for industrial and machine vision applications, AXIS M1135 Mk II sets a new standard in affordable and effective surveillance solutions.
Features:
- 2 MP resolution with superb image quality
- Compact and flexible design
- Lightfinder and Forensic WDR technologies
- Built-in microphone for audio recording
- PoE and redundant DC power support
- AXIS Object Analytics preinstalled
- Remote zoom and focus with i-CS lenses
Applications:
- Industrial surveillance
- Security and deterrence
- Machine vision applications
- Audio and video recording
- Low-light surveillance scenarios
|
Image Sensor |
1/2.9” progressive scan RGB CMOS |
|
Lens |
M1135 Mk II |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
HDTV 1080p 25/30 fps with Forensic WDR and Lightfinder: Color: 0.15 lux at 50 IRE, F1.4 |
|
Shutter Time |
1/33500 to 2 s |
|
Model |
ARTPEC-7 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Machine learning processing unit (MLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
1280x960 to 320x240 (4:3) 1920x1080 to 640x360 (16:9) |
|
Frame Rate |
Up to 25/30 fps in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265 and Motion JPEG |
|
Image Settings |
Axis Forensic WDR: up to 120 dB depending on scene, manual shutter time, compression, color, brightness, sharpness, contrast, white balance, exposure control (including automatic gain control), exposure zones, fine tuning of behavior at low light, barrel distortion correction, rotation: 0°, 90°, 180°, 270°including Corridor Format, aspect ratio correction, text and image overlay, privacy mask, mirroring of images |
|
Pan/Tilt/Zoom |
Digital PTZ |
|
Audio Streaming |
Audio in, simplex, two-way audio via edge-to-edge technology |
|
Audio Encoding |
24bit LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 |
|
Audio Input/Output |
External microphone input or line input, built-in microphone (can be disabled), automatic gain control, network speaker pairing |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTP/2, HTTPS, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Version SDK. |
|
Event Conditions |
Audio: audio detection |
|
Event Actions |
File upload via FTP, HTTP HTTPS, SFTP, network share and email MQTT publish |
|
Built-in installation aids |
Pixel counter, remote zoom and focus with i-CS |
|
AXIS Object Analytics |
Object classes: humans, vehicles |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included |
|
Casing |
Polycarbonate blend |
|
Mounting |
¼”-20 tripod screw thread Camera stand included |
|
Sustainability |
PVC free, 20% recycled plastics |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 3, max 7.2 W, typical 4.5 W |
|
Connectors |
|
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LED |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) |
|
PIR Sensor |
Passive infrared (PIR) motion sensor |
|
Operating Conditions |
0 °C to 35 °C (32 °F to 95 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Safety CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 Network NIST SP500-267 |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Dimensions |
105 x 60 x 93 mm (4.1 x 2.4 x 3.7 in) |
|
Weight |
153 g (0.34 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, wall mount, terminal block connector |
|
Optional Accessories |
AXIS TM1901 Wireless Kit |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
