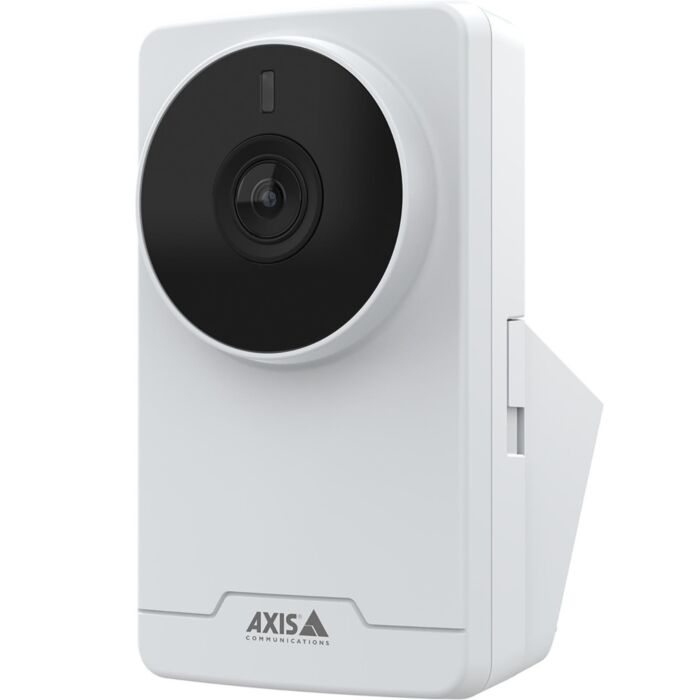

AXIS M1055-L Box Camera
Unveiling the AXIS M1055-L Box Camera: Unmatched Surveillance Precision
Embrace unparalleled surveillance precision with the AXIS M1055-L Box Camera from Aegis Electronic Group. Designed for industrial and machine vision applications, this cost-effective camera delivers HDTV 1080p resolution, ensuring exceptional image quality. Its advanced deep learning analytics, powered by a deep learning processing unit (DLPU), bring extended possibilities to the table.
The camera boasts day-and-night vision with IR illumination and a Wide Dynamic Range (WDR) for clear details in varying lighting conditions. Its compact design facilitates easy installation, allowing it to be mounted in corners, providing a 103° field of view for comprehensive coverage.
Privacy and security are paramount, featuring a tally LED and AXIS Live Privacy Shield. The camera incorporates built-in cybersecurity measures, including Axis Edge Vault, signed firmware, and secure boot to prevent unauthorized access.
Features:
- HDTV 1080p Resolution
- Deep Learning Analytics
- Day-and-Night Vision with IR Illumination
- Compact Design for Easy Installation
- Privacy Features: Tally LED and AXIS Live Privacy Shield
- Built-in Cybersecurity: Axis Edge Vault, Signed Firmware, Secure Boot
- Wide Dynamic Range (WDR)
- IR-Corrected Lens
- I/O Port with 1 Input/1 Output
- PoE Support
Applications:
- Small Stores
- Residential Care Facilities
- Industrial Surveillance
- Machine Vision Applications
|
Image Sensor |
1/2.9” progressive scan RGB CMOS |
|
Lens |
Fixed focal length, 3.16 mm, F2.0 Horizontal field of view: 103°Vertical field of view: 55°Fixed iris, IR corrected |
|
Day and Night |
Automatically removable infrared-cut filter |
|
Minimum Illumination |
Color: 0.18 lux at 50 IRE, F2.0 |
|
Shutter Time |
1/19000 s to 1/5 s |
|
Model |
CV25 |
|
Memory |
1024 MB RAM, 512 MB Flash |
|
Compute Capabilities |
Deep learning processing unit (DLPU) |
|
Video Compression |
H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles H.265 (MPEG-H Part 2/HEVC) Main Profile Motion JPEG |
|
Resolutions |
1280x960 to 320x240 (4:3) 1920x1080 to 640x360 (16:9) |
|
Frame Rate |
Up to 25/30 fps (50/60 Hz) with H.264 and H.265a in all resolutions |
|
Video Streaming |
Multiple, individually configurable streams in H.264, H.265, and Motion JPEG |
|
Image Settings |
Saturation, contrast, brightness, sharpness, white balance, day/night threshold, local contrast, tone mapping, exposure mode, exposure zones, defogging, barrel distortion correction, electronic image stabilization, compression, rotation: 0°, 90°, 180°, 270° including corridor format, mirroring, dynamic text and image overlay, polygon privacy mask,target aperture |
|
Network Protocols |
IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPSb, HTTP/2, TLSb, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog |
|
Application Programming Interface |
Open API for software integration, including VAPIX®, metadata and AXIS Camera Application Platform (ACAP); specifications at axis.com/developer-community. ACAP includes Native SDK and Computer Version SDK. |
|
Onscreen Controls |
Media clip |
|
Event Conditions |
Device status: above operating temperature, above or below operating temperature, below operating temperature, IP address removed, live stream active, network lost, new IP address, system ready, within operating temperature |
|
Event Actions |
Day-night mode: use day-night mode while the rule is active I/O: toggle I/O once, toggle I/O while the rule is active Illumination: use lights, use lights while the rule is active Images: FTP, HTTP, HTTPS, SFTP, email and network share MQTT: publish |
|
AXIS Object Analytics |
Object classes: humans, vehicles (types: cars, buses, trucks, bikes) |
|
Metadata |
Object data: Classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license plates |
|
Applications |
Included AXIS Object Analytics, AXIS Video Motion Detection, active tampering alarm, audio detection |
|
Casing |
Aluminum and plastic casing Color: white NCS S 1002-B |
|
Power |
Power over Ethernet (PoE) IEEE 802.3af/802.3at Type 1 Class 2 Typical 2.2 W, max 4.3 W |
|
Connectors |
Network: Shielded RJ45 10BASE-T/100BASE-TX PoE |
|
IR Illumination |
OptimizedIR with power-efficient, long-life 850 nm IR LED |
|
Storage |
Support for microSD/microSDHC/microSDXC card Support for SD card encryption (AES-XTS-Plain64 256bit) Recording to network-attached storage (NAS) |
|
Operating Conditions |
0 °C to 35 °C (32 °F to 95 °F) Humidity 10–85% RH (non-condensing) |
|
Storage Conditions |
-40 °C to 65 °C (-40 °F to 149 °F) |
|
Approvals |
EMC EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2 Australia/New Zealand: RCM AS/NZS CISPR 32 Class A Canada: ICES-3(A)/NMB-3(A) Safety CAN/CSA-C22.2 No. 60950-22, CAN/CSA C22.2 No. 62368-1, IEC/EN/UL 62368-1, IEC/EN/UL 60950-22, IEC 62471, IS 13252 IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 Network NIST SP500-267 |
|
Edge Security |
Software: Signed firmware, brute force delay protection, digest authentication and OAuth 2.0 RFC6749 OpenID Authorization Code Flow for centralized ADFS account management, password protection, AES-XTS-Plain64 256bit SD card encryption Hardware: Axis Edge Vault cybersecurity platform |
|
Network Security |
IEEE 802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE 802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509 Certificate PKI, host-based firewall |
|
Dimensions |
105 x 60 x 93 mm (4.1 x 2.4 x 3.7 in) |
|
Weight |
137 g (0.30 lb) |
|
Included Accessories |
Installation guide, Windows® decoder 1-user license, wall mount, terminal block connector |
|
Optional Accessories |
AXIS T8415 Wireless Installation Tool AXIS Surveillance Cards |
|
Video Management Software |
AXIS Companion, AXIS Camera Station, video management software from Axis Application Development Partners |
|
Languages |
English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
|
Warranty |
Axis 3–year warranty and AXIS Extended Warranty |
