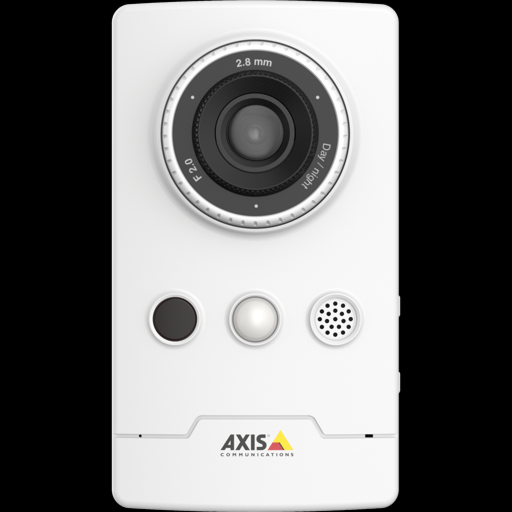

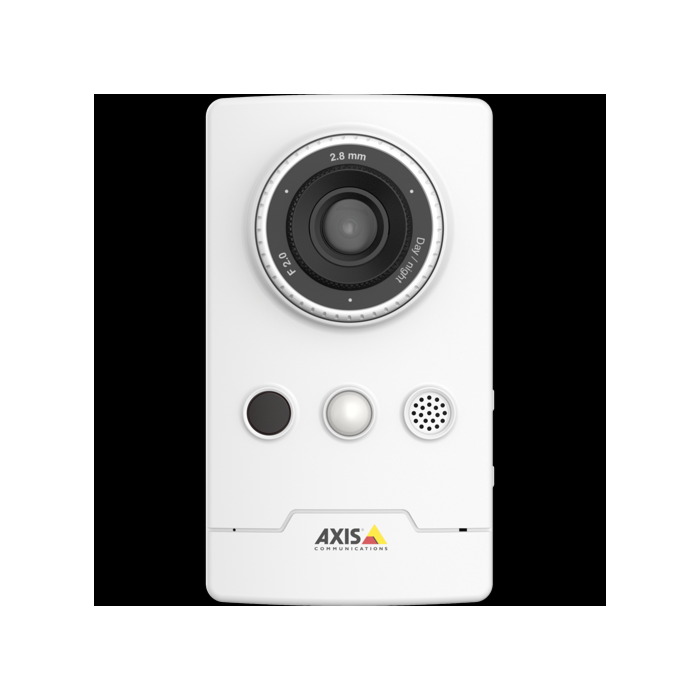

Axis M1045-LW (M1045LW) M10 Series (1920x1080) Fixed Network Camera
SKU
Axis M1045-LW
Quick Overview
1/3" progressive scan RGB CMOS, Horizontal field of view: 110°
*Product is discontinued
If you’re a business owner looking for a discreet day & night camera that’s simple to install, attractively priced, and cost-effective to run, AXIS M1045-LW Network Camera is just what you need. You get excellent Axis image quality – around the clock. AXIS M1045-LW is the perfect plug & play video surveillance camera for smaller stores and offices.
Features:
Applications:
| Image Sensor | 1/3" progressive scan RGB CMOS |
| Lens | Fixed focal length, 2.8 mm, F2.0 Horizontal field of view: 110° Vertical field of view: 61° M12 mount, fixed iris, IR corrected |
| Day and Night | Automatically removable IR cut filter |
| Minimum Illumination | Color: 0.25 lux at 50 IRE F2.0 B/W: 0.05 lux at 50 IRE F2.0, 0 lux with IR illumination on |
| Shutter Time | 1/28000 s to 1/5 s with 50 Hz 1/32500 s to 1/5 s with 60 Hz |
| Pan/Tilt/Zoom | Digital PTZ |
| Video Compression | H.264 (MPEG-4 Part 10/AVC) Baseline, Main and High Profiles, Motion JPEG |
| Resolutions | 1920x1080 (HDTV 1080p) to 320x240 |
| Frame Rate | Up to 25/30 fps (50/60 Hz) in all resolutions |
| Video Streaming | Multiple, individually configurable streams in H.264 and Motion JPEG Axis' Zipstream technology in H.264 Controllable frame rate and bandwidth VBR/MBR H.264 |
| Image Settings | Compression, Color, Brightness, Sharpness, Contrast, White balance, Exposure control, Day/Night shift level, Rotation: 0°, 180°, Text and image overlay, Privacy masks, Mirroring of images, WDR |
| Wireless Interface | Internal antenna IEEE 802.11a/b/g/n @ 2.4 GHz, @ 5 GHz |
| Security | Password protection, IP address filtering, HTTPSa encryption, IEEE 802.1Xa network access control, Digest authentication, User access log WPA/WPA2-PSK, WPA, WPA2 Enterprise WLAN pairing button (Wi-Fi Protected SetupTM PBC compatible) |
| Supported Protocols | IPv4/v6, HTTP, HTTPSa , SSL/TLSa , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnPTM, SNMPv1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS |
| Application Programming Interface | Open API for software integration, including VAPIX® and AXIS Camera Application Platform AXIS Video Hosting System (AVHS) with One-Click Connection ONVIF Profile S |
| Analytics | AXIS Video Motion Detection 3 Active tampering alarm, Support for AXIS Camera Application Platform, AXIS Cross Line Detection, AXIS Digital Autotracking and third-party applications |
| Event Triggers | Analytics, Edge storage events |
| Event Actions | File upload: FTP, HTTP, network share and email Notification: email, HTTP and TCP Pre- and post-alarm video buffering Video recording to edge storage |
| Data Streaming | Event Data |
| Built-in Installation Aids | Pixel Counter |
| Casing | Polycarbonate, Aluminium, recycled plastic Color: White NCS S 1002-B For repainting instructions of skin cover or casing and impact on warranty |
| Sustainability | PVC free, 64% recycled plastic |
| Memory | 512 MB RAM, 256 MB Flash |
| Power | 4.75–5.25 V DC, typical 2.7 W, max 4.4 W |
| IR Illumination | IR illumination, LED with adjustable intensity. Range up to 10 m (32 ft) |
| Connectors | Micro USB type B for power only RJ45 10BASE-T/100BASE-TX |
| Storage | Support for microSD/microSDHC/microSDXC card Support for recording to dedicated network-attached storage (NAS) |
| Operating Conditions | 0 °C to 40 °C (32 °F to 104 °F) Humidity 10-85% RH (non-condensing) |
| Storage Conditions | -40 °C to 65 °C (-40 °F to 149 °F) Humidity 10-85% RH (non-condensing) |
| Approvals | EMC EN 55032 Class B, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class B, ICES-003 Class B, VCCI Class B, RCM AS/NZS CISPR 32 Class B, KN24, KN-35 Wireless EN 300328, EN 301489-1, EN 301489-17, EN 301893, FCC Part 15 Subpart C, FCC Part 15 Subpart E, RSS-247, TELEC Safety IEC/EN/UL 60950-1, IEC/EN 62471 |
| Dimensions | 106 mm x 60 mm x 37 mm (4.17 x 2.36 x 1.46 in) |
| Weight | 126 g (0.28 lb) |
| Included Accessories | Power supply, Installation Guide, Mount bracket, Table top stand, Windows decoder 1-user license |
| Optional Accessories | AXIS T8415 Installation Display T91A10 Mounting Kit AXIS Surveillance microSDXC™ Card 64 GB |
| Video Management Software | AXIS Companion video management software, AXIS Camera Station, Video management software from Axis’ Application |
| Languages | English, German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese, Korean, Portuguese, Traditional Chinese |
| Warranty | Axis 3-year warranty and AXIS Extended Warranty |
