Aegis AVP-MA130-USB3NE Interface Kit for Sony FCB-MA130
SKU
Aegis AVP-MA130-USB3NE
Quick Overview

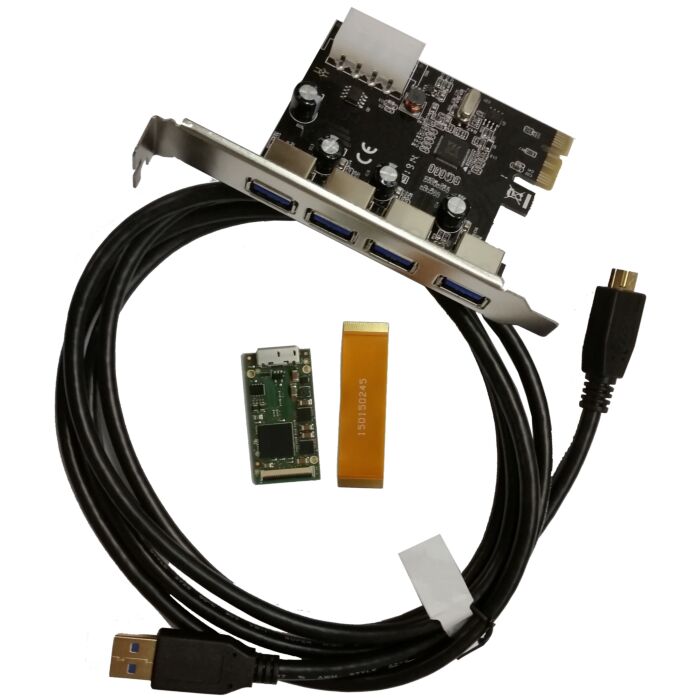

This kit includes a USB 3 Interface Board (AVP-MA130-USB3-BOARD), Ribbon Cable, PCI-‐E Card (AVP-MA130-USB3-PCIE) , 6 foot (2 Meter) USB 3.0 Cable For Desktop computers without Embedded USB 3
The Aegis AVP-MA130-USB3NE Interface Kit is a perfect video capture solution for the Sony FCB-MA130. The small size allows it to be fit into many applications and capture high quality images and videos which can be easily streamed to a USB 3.0 host. The PCI-E card also enables you to transfer files between USB devices and your computer at a rate of up to 5 Gbps.
| AVP-MA130-USB3-BC - USB 3 Interface Board: | |
| Output Video Resolutions | 1920x1080 (Full HD), 1600x1200 (UXGA), 1280x960 (SXGA), 1280x720 (HD), 1024x768 (XGA), 800x480 (WVGA), 640x480 (VGA) |
| Output Still Image Resolutions | 4192x3104, 4128x3096, 3264x2448, 2592x1944, 1920x1080, 1280x960, 1280x720, 640x480 |
| FCB-MA130 Camera Control Options | USB Video Class Controls, Virtual COM Port |
| Input Connectivity | Sony FCB-MA130, 16-bit CMOS Parallel, YCbCr 4:2:2, 45-pin 0.35mm pitch FPC/FFC Cable, Matching p/n (Molex): 15015-0245 |
| Output and Control Connectivity | USB 3.0 SuperSpeed, Micro USB 3.0 “B” type connector |
| Power Supply | 5V (USB 3.0 Power) |
| Dimensions (inches) | 1.634’’ x 0.787’’ x 0.183’ |
Mounting Provisions | 3x M1,6 mounting holes |
| Operating Temperature | -40°C - 85°C |

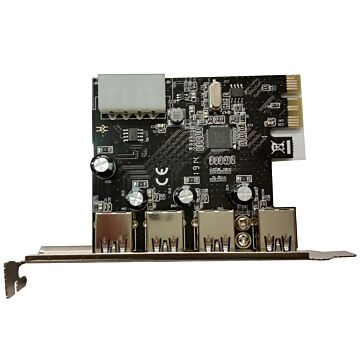

| AVP-MA130-USB3-PCIE - USB 3.0 PCI Express (PCI-E) Card: | |
| SuperSpeed USB 3.0 | Accelerated file access and transfer rates |
| Boost Your Peripheral Capability | USB 3.0 PCI express I/O Card with 4 ports |
| Connect and Go | Connect any USB 3.0 devices to your PC |
| OS | Drivers for Windows XP, Vista, Windows 7 and Windows 8 (32/64-bit) included on provided CD |
