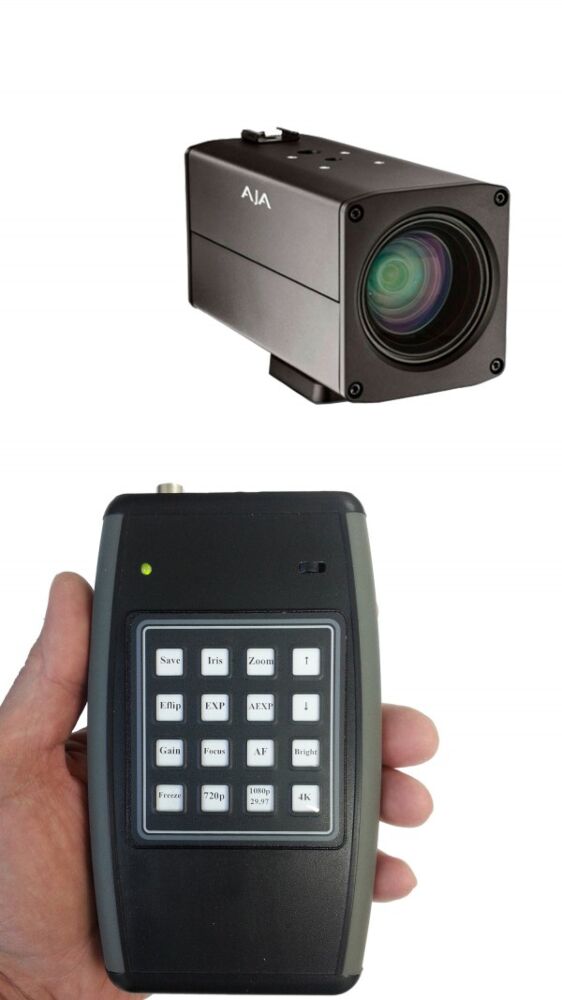

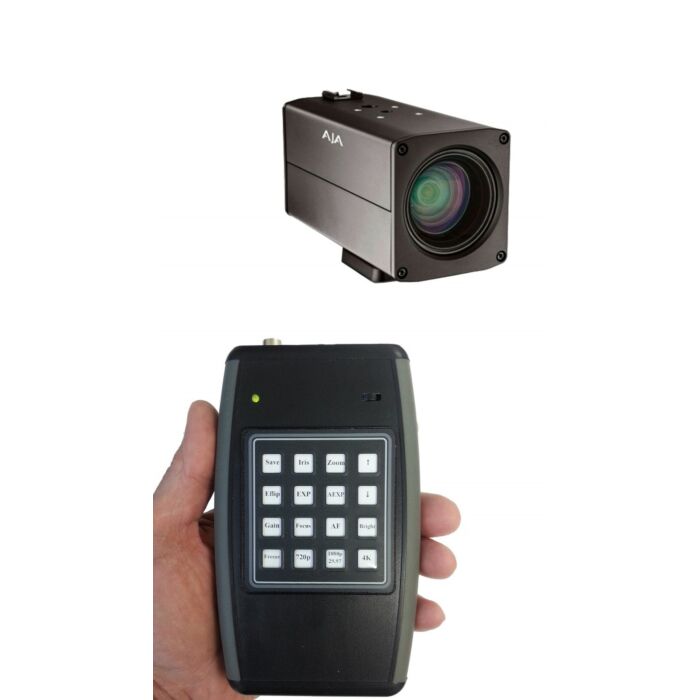

Aegis ER1-Controller for AJA RovoCam
Sleek, Portable, Handheld controllers ideal for the AJA RovoCam camera.
SKU
Aegis ER1-Controller for AJA RovoCam
Flexible, configurable controllers designed to work with AJA RovoCam cameras. These controllers can be programmed to control a majority of RovoCam camera functions. Custom program configurations are available. A sales representative can assist in determining the best configuration to meet individual needs.
Features:
For the AJA Rovocam camera, the controller can be configured to control:
| Popular Controller Functions | |
| Save | Saves current camera settings, to be the default camera state for future camera power-ups. |
| Iris | Opens and closes the lens iris which controls amount of light that comes in and out. Use up and down keys to increase or decrease iris. |
| Zoom | Activates up and down arrows for controlling the lens, press zoom button the zoom by pressing the up arrow (tele end) and down arrow for (wide end). |
| Up and Down Arrows | These buttons are activated by Iris, Zoom, EXP, Gain, Focus, & Bright. The up arrow will increase (+) while the down arrow decreases (-). |
| E-Flip | (Not all FCB cameras have this feature) This function turns the video output from the camera upside down. |
| Mirror | (Not all FCB cameras have this feature) This function switches image from left to right. |
| EXP | Sets the camera in Manual Exposure mode 21 steps ranging from ½ shutter to 1/10000 . Use up and down keys to increase or decrease shutter speed. |
| AEXP | Auto exposure will allow video signal to output the optimum image for subjects from low light conditions to bright light conditions. |
| Gain | Changes the db of the camera, typically 8 manual steps. Use up and down keys to increase or decrease gain. |
| AF | Sets the camera in auto focus mode. |
| Focus | Sets the camera in manual focus mode, Use up and down keys adjust focus. |
| Bright | This function adjusts both the gain and iris using an internal algorithm according to a brightness level set by user, use up and down keys to increase or decrease brightness |
| ICR | (Not all FCB cameras have this feature) An infrared cut filter can be disengaged from the image path for increased sensitivity in low light environments. Please note, when image is in ICR mode the image becomes black and white. |
| Freeze | (Not all FCB cameras have this feature) This function captures an image in the field memory and displays image on screen. |
| BLC | When the background of the subject is to bright, back light compensation will automatically adjust and make the subject bright and the background darker. |
| 720P | Sets the camera into 720P 60fps mode, camera must be powered down in order for the change to take place. |
| 1080i | Sets the camera into 1080i 59.94fps mode, camera must be powered down in order for the change to take place. |
| 1080P | (cameras supported FCBEH6300 and FCBSE600) Sets the camera into 1080P 30fps mode, camera must be powered down in order for the change to take place. |
| 4K |
(Supported by FCBER8300 camera) |
| Specifications | |
| Dimensions | HxWxL (MM) 20x148X85 |
| Power | 12V DC via the 4pin jack or 9V DC battery |
