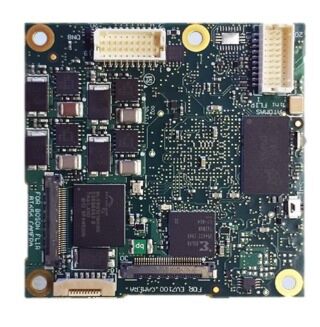

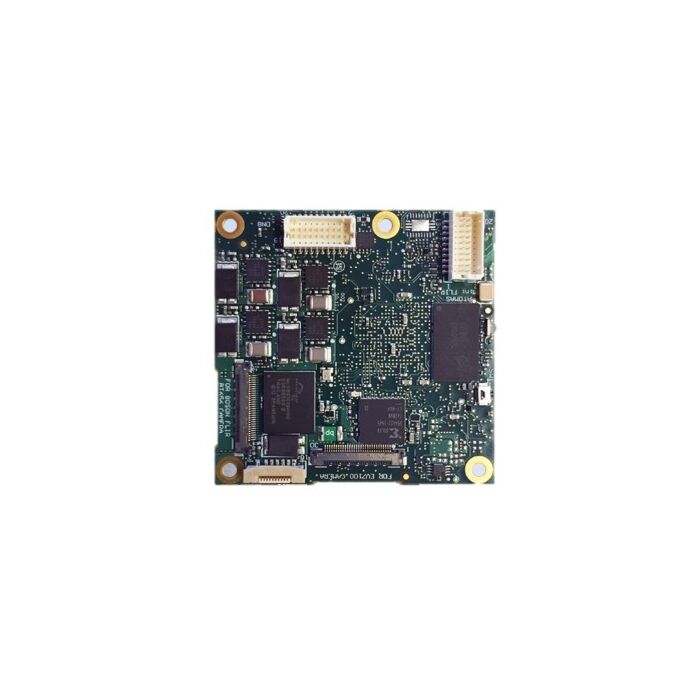

IONODES ATOMAS-MINI-DUAL Dual Camera Full HD IP Video Encoder Module, 1080p60, H.264, 50 × 50mm

The IONODES ATOMAS-MINI-DUAL Dual Camera Full HD IP Video System on Module is purpose-built for advanced dual-camera designs, combining flexibility, compact integration, and robust streaming capabilities. With a 50×50mm form factor, this encoder module supports a primary LVDS zoom block (compatible with Sony FCB specifications) alongside a secondary video input (digital or analog, including thermal).

Delivering 1080p60 H.264 high-profile compression and low latency IP streaming (<120ms), the ATOMAS-MINI-DUAL ensures smooth and reliable video for mission-critical applications. Onboard SD card recording, ONVIF Profile S compliance, RTC, watchdog monitoring, and secure networking provide reliable operation in industrial, defense, and security deployments.

Its wide 8–36VDC input range, dual I/O support, and extensive networking protocols make it a versatile solution for dual-camera systems in UAVs, surveillance, robotics, and thermal imaging. Designed for professional OEM integration, the ATOMAS-MINI-DUAL is where compact design meets uncompromised video performance.

Features:

• Glueless connection to SONY LVDS zoom blocks
• Support for a secondary video input/camera
• High profile H.264 video compression
• IP video streaming at up to 1080p60
• Local recording to SD card
• Onvif profile S compliant
• 8 to 36 VDC power input range
• Low latency IP video streaming
• Onboard RTC and hardware watchdog

Applications:

• Dual Camera Designs
