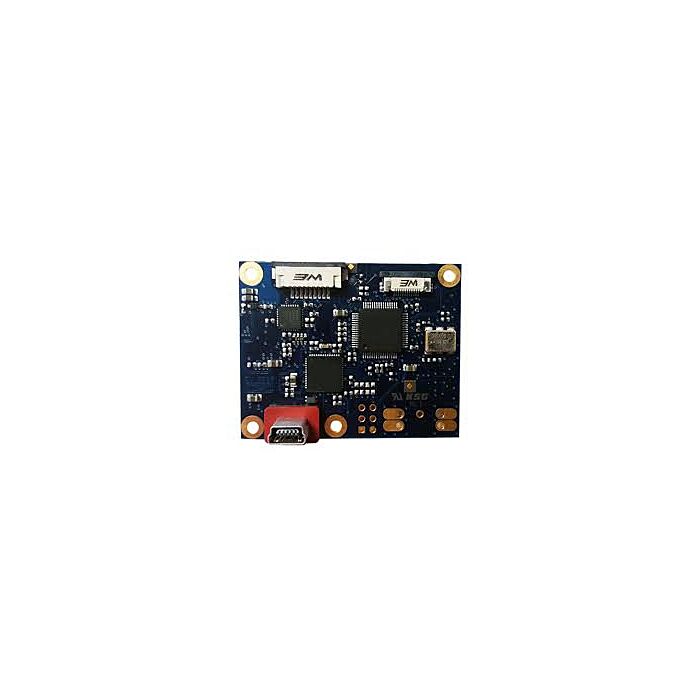

Aegis USB2-EX for FCB-EX1020/P and FCB-EX-E Series of SD Block Cameras (Discontinued)

The Aegis USB2-EX is a small form factor module for formatting and converting generic digital video streams to standard compliant formats. Different interface standards are supported from the transmitter side including DVI/HDMI, VGA, HD-SDI, SDI and USB. The modules connect to the digital video interface of Sony’s FCB-H and FCB-EX-E block cameras and support several progressive and interlace HDTV or SDTV formats. As no analog to digital conversion is done on these modules, best image quality is guaranteed for the output signals.

Features:

Connects to Sony FCB-EX-E series camera blocks

Supports EX1020/P, EX995E/P, and EX490E/P

Connects to digital video interface of camera

Digital progressive video output over USB2.0 highspeed interface

Video output on mini USB type B connector

Video output 720x576p25 for PAL camera models

Video output 720x480p30 for NTSC camera models

Native digital signal processing chain for best image quality (no scaling)

Breakout of analog CVBS video

Serial control interface via USB2.0 or RS232

Device installs as COM port at PC

PC USB video driver support for WindowTM OS

WindowTM based AMCAP software for video capture

Supply voltage: 7V to 12V DC regulated
