Aegis SD-SDI-SIM-EH-EV HD-SDI Interface Board for Sony FCB-EH & FCB-EV Block Cameras
*In Stock Now Only 1 Left, Call For Replacement Options

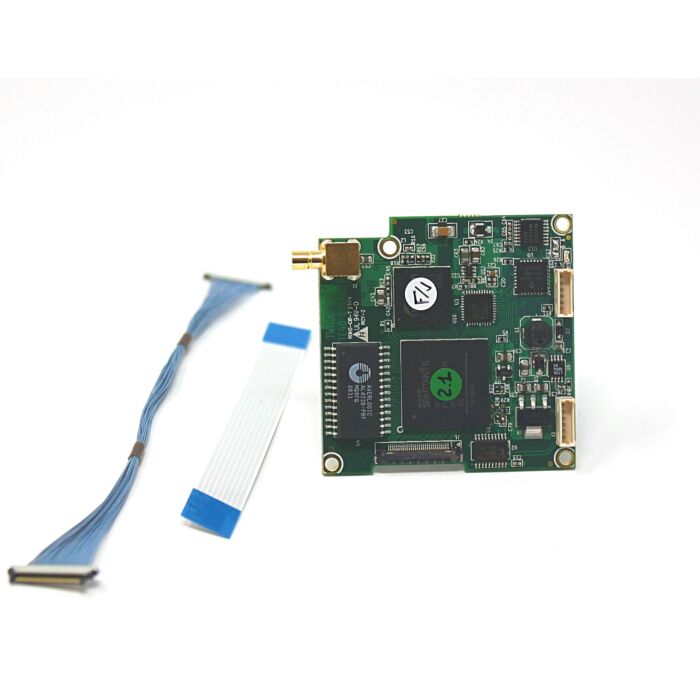

The Aegis SD-SDI-SIM-EH-EV is a compact HD-SDI interface board designed for Sony FCB-EH and FCB-EV series HD block cameras. The board converts the camera’s LVDS video output into broadcast-quality HD-SDI while also providing NTSC or PAL composite video output for legacy monitoring systems.
Engineered with FPGA-based video processing, the board performs LVDS decoding, SDI serialization, and analog scaling, allowing seamless integration of Sony HD block cameras into SDI broadcast, surveillance, robotics, and machine vision systems.
- SKU
- SD-SDI-SIM-EH-EV
The Aegis SD-SDI-SIM-EH-EV HD-SDI Interface Board enables professional video integration for Sony FCB-EH and Sony FCB-EV HD camera blocks by converting LVDS camera output into SMPTE 424M compliant HD-SDI video.
This interface module supports 1080p and 1080i video formats and simultaneously generates a scaled composite NTSC or PAL output, providing compatibility with both modern HD-SDI equipment and legacy analog video systems.
The board uses FPGA processing for LVDS decoding, signal scaling, and SDI serialization, ensuring stable and high-quality video transmission. Integrated VISCA control support allows camera configuration through RS-232 or TTL level control interfaces.
With a compact 50 × 50 mm footprint, this board is ideal for OEM camera integration, surveillance systems, robotics platforms, UAV imaging systems, and broadcast equipment that require reliable HD-SDI output from Sony block cameras.
Features:
- LVDS signal decoding (with FPGA)
- Serialization and adaptation of the signal to the SDI standard (with SDI transmitter)
- Memorization of the SD image to realize NTSC or PAL interlacing
- SD NTSC / PAL Signal scaling ( FPGA)
- NTSC & PAL Coding ( NTSC & PAL encoder)
- Camera model and video format detection (μC)
- Level conversion RS232 / TTL for remote control
- Power supply of the camera (6 to 12V ), and of the board functions (1.2V, 1.8V and 3.3V)
Applications:
- Broadcast
- Surveillance
- Robotics
- UAV
- Machine Vision
- Inspection
- Security Systems
- Remote Monitoring
| Digital Video Output | SMTPE 424M up to 1080p50/60 |
| Analog Video Output | NTSC when the HD configuration is 1080p30 or 1080p60 PAL when the HD configuration is 1080p25 or 1080p50 |
| Camera Setting | VISCA - Default : RS232 Level - TTL Level (Option) |
| Sync System | Internal |
| Power | 6 to 12 VDC, 5 W (including camera) |
| Environmental | 0°C to 60°C |
| Storage | -20°C to 60°C |
| Dimensions (mm) | 50(H) x 50(W) x 10(D) |
