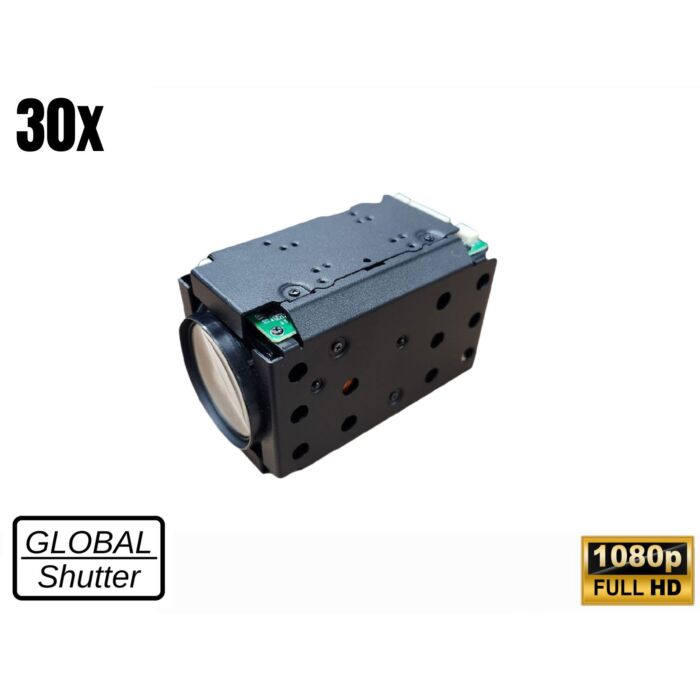

Block Cameras ML-KX30GS (MLKX30GS) 2 MP IP Zoom Module Camera With 30x Optical Zoom, 60fps, H.264/H.265, Global Shutter
The ML-KX30GS IP Zoom Module Camera delivers 2MP IP streaming at up to 60fps with a 1/3” Sony CMOS global shutter sensor, ensuring high-quality imaging. Featuring a 30x optical zoom and 10x digital zoom, it excels in capturing details even in low light with a minimum illumination of 0.03 Lux (color) and 0 Lux (BW with IR LED).
Supporting resolutions up to 2048 x 1536, it offers H.264, H.265, and JPEG streaming with quadruple IP streaming for operational flexibility. The camera includes 256 zoom/focus presets, auto and manual focus modes, and 10 adjustable day/night levels. Additional features include 2D/3D noise reduction, privacy masking (8 zones), and AI motion detection.
Integration is seamless with HTTP RESTful API, Onvif compliance, and multiple network protocols. Compact at 50x60x93mm and weighing 290g, it operates in a temperature range of -10°C to +50°C with external storage support via microSD.
Features:
- 2MP global shutter sensor
- 30x optical, 10x digital zoom
- Quadruple IP streaming (H.265/H.264)
- 256 presets, AI motion detection
- Low-light: 0.03 Lux color, 0 Lux BW
- HTTP RESTful API, Onvif compliant
Applications:
- Industrial surveillance
- Traffic monitoring
- High-security systems
| Image Sensor | 1/3” Sony CMOS Image sensor (Global shutter) |
| Sensor Total Pixels | 2,064(H) x 1,592(V) = 3.28M Pixels |
| Effective Pixels | 2,064(H) x 1,522(V) = 3.20M Pixels |
| Resolution | 2048 x 1536 |
| Frame Rate | 60/50 fps, 30/25 fps |
| Min. Illumination | Color: 0.03 Lux @ (F.1.63, AGC ON), BW: 0Lux (IR LED) |
| Zoom Ratio | 30x Optical, 10x Digital |
| Focal Length | f = 4.6mm ~ 136mm |
| Aperture Ratio | F1.63(wide) ~ F4.85(tele) |
| Angle of View | H : 65.4°(W) ~ 2.2°(T) / V : 38.3°(W) ~ 1.3°(T) / D : 73.3°(W) ~ 2.6°(T) |
| Min. Distance | 0.5m(Wide), 5m(Tele) |
| Iris | DC Auto Iris (TBA) |
| IR Cut Filter | On/Off |
| Focus Control Mode | -Auto Focus (Zoom Trigger, Timer Trigger, One Push) -Manual Mode (Slide Control, One Push) |
| Presets | 256 Zoom/Focus Presets (TBA) |
| Day & Night | Auto, Day, Night, Ext-in |
| D&N Levels | 10 Levels (without Ext-in) |
| Electronic Shutter Speed | 1/25(30)/1/50(60) ~ 1/5,000 |
| White Balance Modes | Auto, Manual (3 Steps or More) |
| Exposure Modes | Auto Mode , Manual Mode, Indoor Mode 50Hz / 60Hz(Flicker-Free) |
| Gain Control | Auto Mode, Manual Mode |
| WDR | On/Off |
| BLC | On/Off |
| HLC | On/Off |
| DNR | 2D&3D |
| Defog | Off/Low/Middle/High |
| DIS | On/Off (TBA) |
| Mirror | Off, Vertical Flip, Horizontal Flip, H+V Flip (180degree rotation) |
| Privacy Mask | Max 8 Zones |
| Motion Detection | 32 x 18 cell / AI motion detection(TBA) |
| Output Format | H.264 / H.265 / JPEG |
| Bitrate | 512~15000 kbps |
| Streaming | Quadruple ( x4 ) IP Streaming Main Stream : up to 1920 x 1080 Second Stream : up to 1280 x 720 Third Stream : up to 640 x 480(TBA) JPEG : 1920 x 1080 |
| OSD | Title, Date, Resolution |
| Main UI | Web-based GUI |
| System Mode | NTSC / PAL |
| Video | TBD |
| JPEG | TBD |
| Rule Engine/Tracker | - |
| Video Analytics | - |
| Compression | G.711 ulaw |
| Sampling Rate | 8khz |
| Input & Output | 1 line In / 1 Line Out |
| Interface | 10BASE-T/100BASE-TX |
| Protocol | IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, NTP, SMTP, FTP, UPnP(TBA), HTTP, HTTPS, SSL/TLS |
| Security | Password protection, IP address filtering, Https encryption, brute force delay protection |
| Control Protocol | HTTP RESTful API, Onvif |
| External Devices | 1x Alarm input 1x Alarm output 1x D&N input(Ext-in) 1x PWM output(lighting control) 1x UART |
| External Storage | Micro SD |
| Power Supply | 12V |
| Power Consumption | TBD |
| Storage Temperature | -20℃ ~ +60℃ (Humidity < 90%RH, Non-condensing) |
| Operating Temperature | -10℃ ~ +50℃ (Humidity < 90%RH, Non-condensing) |
| Dimension | 50 x 60 x 93(WxHxD) |
| Weight | 290g |
| Certifications | NA |
