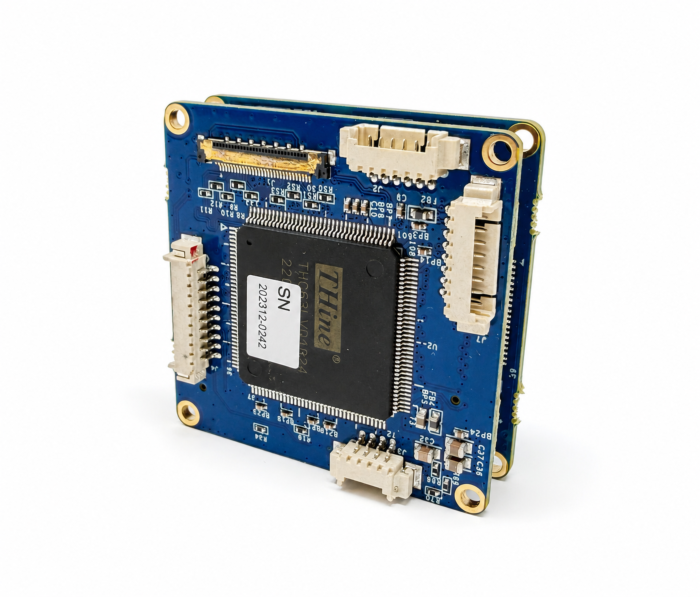

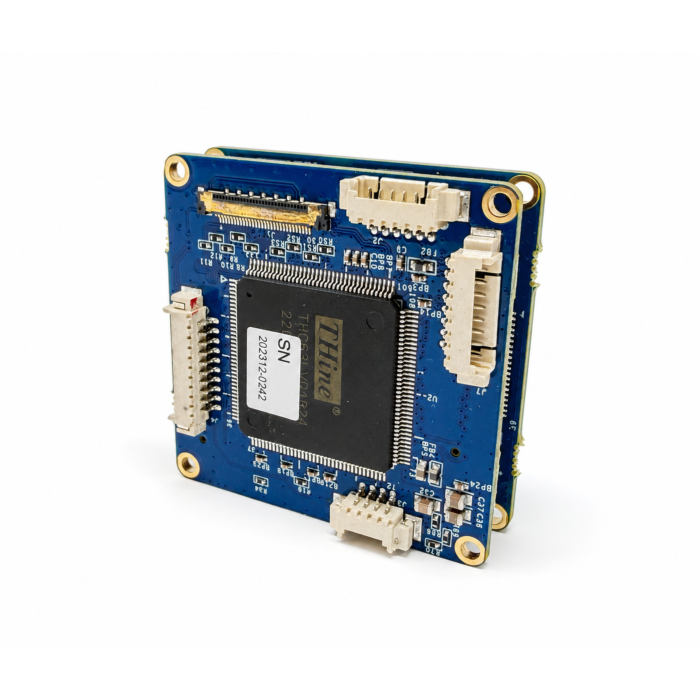

ME-330 LVDS to IP Encoder Board – 1080p H.265/H.264 Triple Stream

The ME-330 LVDS to IP encoder board is a compact, high-performance HD video encoder module designed for OEM security, industrial imaging, and embedded surveillance applications. Engineered for seamless integration with Sony HD LVDS cameras via a 30-pin micro coaxial connector, the ME-330 converts LVDS video signals into network-ready IP streams with advanced compression efficiency.

Supporting triple streaming with SVC capability, the ME-330 delivers flexible video output in H.265, H.264, and MJPEG formats while maintaining full 1920×1080 resolution at 30fps. This enables optimized bandwidth control across multiple stream profiles for recording, live monitoring, and remote access simultaneously.

Designed for modern network environments, the ME-330 supports IPv4/IPv6 and ONVIF Profile S, ensuring compatibility with leading VMS platforms and enterprise surveillance systems. Integrated protocol support includes RTSP, RTP, HTTP, HTTPS, SSL/TLS, and RESTful API control for secure and scalable deployments.

With a compact 42×42mm board-level design and maximum 3W power consumption, the ME-330 encoder is ideal for space-constrained embedded systems. Optional microSD storage up to 2TB allows onboard recording, while UART/RS485 support with PELCO “D” protocol enables precise PTZ camera control.

The ME-330 is engineered for integrators requiring reliable LVDS-to-IP conversion in security, machine vision, robotics, transportation, and industrial automation systems.

Features:

• ME-330 LVDS to IP encoder board
• Triple Streaming – 3x H.264/H.265 + 1x JPEG
• Full HD Resolution – 1920×1080 @ 30fps
• Advanced Compression – H.265 / H.264 / MJPEG
• LVDS Input – 4/8 lanes via 30-pin micro coax connector
• ONVIF Profile S & RESTful API support
• Network Protocol Support – IPv4/IPv6, RTSP, HTTP, HTTPS, SSL/TLS
• MicroSD Storage – up to 2TB (optional)
• Low Power Consumption – Max 3W
• UART / RS485 – PELCO “D” PTZ protocol
• Compact 42×42mm PCB design

Applications:

• LVDS Camera to IP Conversion
• Embedded Security Systems
• Industrial Imaging Platforms
• Machine Vision Integration
• OEM Surveillance Solutions
• Robotics & Automation
• Transportation Monitoring Systems
• PTZ Control Systems
• Edge Recording Deployments

ME-330 Part Number Information

Model Number: ME-330
Product Type: LVDS to IP Encoder Board
Form Factor: Embedded PCB Module
Primary Use: LVDS camera to IP network conversion
Manufacturer: Aegis

Alternate Search Variations:

• ME330 encoder
• ME 330 board
• ME-330 IP encoder module
• ME-330 LVDS encoder board

ME-330 Frequently Asked Questions

What is the ME-330 used for?

The ME-330 is an LVDS to IP encoder board designed to convert Sony HD LVDS camera output into compressed IP video streams for security, industrial imaging, and embedded systems.

Does the ME-330 support H.265 compression?

Yes, the ME-330 supports H.265, H.264, and MJPEG compression formats, allowing efficient bandwidth management across multiple streaming profiles.

What resolution does the ME-330 support?

The ME-330 supports up to 1920×1080 resolution at 30 frames per second (1080p @ 30fps).

Is the ME-330 ONVIF compliant?

Yes, the ME-330 supports ONVIF Profile S for compatibility with leading video management systems (VMS).

Can the ME-330 record locally?

Yes, the ME-330 supports optional microSD storage up to 2TB for edge recording applications.
