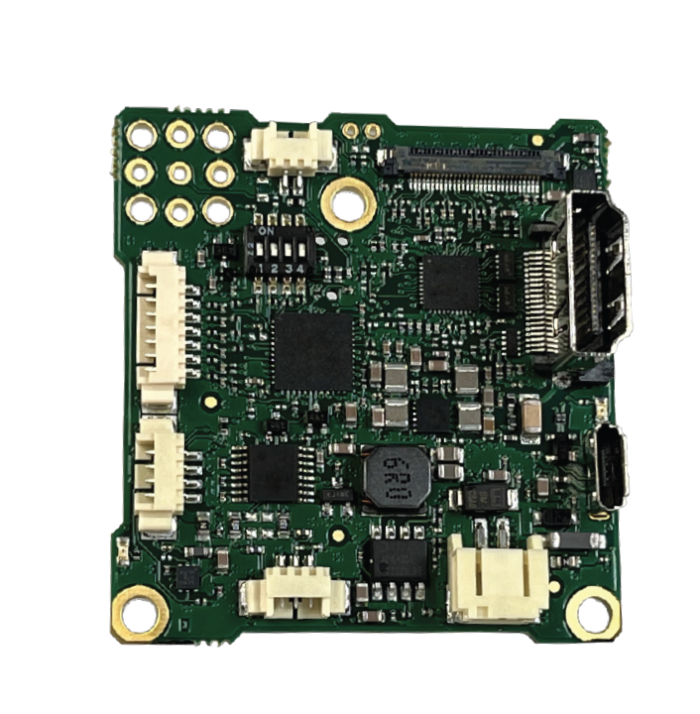

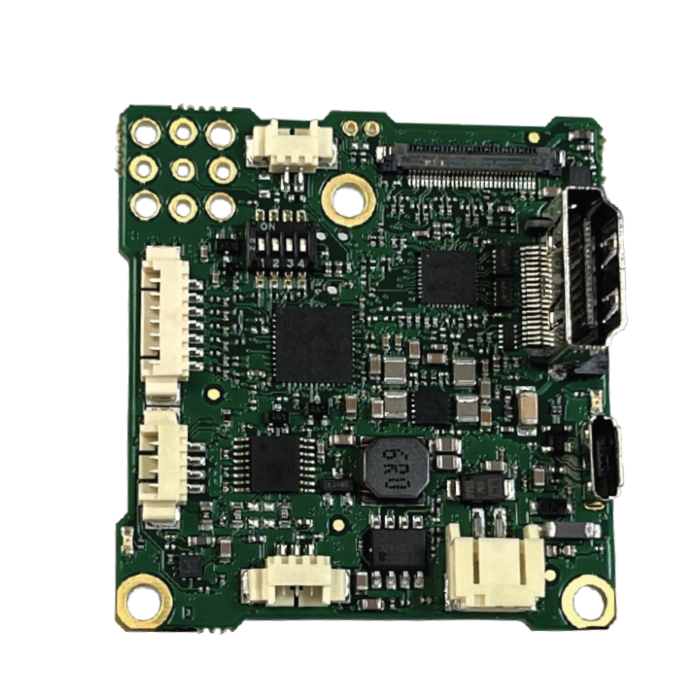

Aegis HDMI-4K-60 Interface Board | HDMI 2.0b, 2160p60 Output, VISCA Control, RS232/TTL, External Sync for Sony FCB-ER9500 & FCB-ER8530 HD Block Cameras
The Aegis HDMI 4K60 Interface Board is designed to convert native video signals from Sony’s high-performance FCB-4K zoom block camera series, including the FCB-ER9500 (4K/60fps) and FCB-ER8550 (4K/30fps), into uncompressed HDMI 2.0b output. Supporting resolutions from Full HD 1080p through true Ultra HD 4K (3840×2160), the board delivers crystal-clear imaging with frame rates up to 60fps for smooth, real-time video transmission. With negligible latency and support for cable runs up to 10 meters, it ensures reliable signal integrity for industrial vision, broadcast, and inspection applications requiring precise detail and color accuracy.
Engineered for system integration, the interface board supports external synchronization with the FCB-ER8550, enabling frame-accurate multi-camera setups used in 3D reconstruction, machine vision, image stitching, or thermal/visible sensor fusion. Video mode selection is handled via DIP switches, while VISCA protocol control is available over RS232/TTL and USB micro-B for configuration and firmware updates. Operating from a wide 6–12VDC input range, the board also provides a 5V/1A auxiliary output for powering external devices. Compact rear-mount design ensures seamless mechanical integration directly behind Sony 4K cameras, delivering a robust, high-performance HDMI solution optimized for technical imaging environments.
Features:
- HDMI 2.0b video output up to 2160p60 (4K60)
- Uncompressed signal transmission with negligible latency
- Compatible with Sony FCB-ER9500 (4K60) and FCB-ER8550 (4K30)
- VISCA control via RS232/TTL and USB micro-B
- External synchronization support with ER8550
- DIP switch video mode selection
- Rear-mountable compact form factor
- 6–12VDC input power with 5V/1A auxiliary output
- HDMI cable drive up to 10 meters
- Operating temperature range: 0°C to 60°C
Applications:
- Industrial vision and inspection systems
- Multi-camera synchronization (image stitching, 3D capture)
- Broadcast and live event production
- Security and surveillance integration
- Scientific and laboratory imaging
- Thermal/visible sensor fusion
- Machine vision and automation environments
| Functions | Specifications |
|---|---|
| Digital Video Output | HDMI 2.0b |
| Digital Video Output Connector | HDMI Type A |
| External Synchronization Connector | Molex and coaxial BNC or MCX (optional, not mounted by default) |
| Camera Control | VISCA commands via Micro-USB and UART RS232 (default) or TTL |
| GPIOs | Camera command interface |
| Power Supply Input | 6–12 VDC |
| Auxiliary Power Output | 5V DC, 1A |
| Operating Temperature Range | 0°C to 60°C |
| Storage Temperature Range | -20°C to 60°C |
| Regulation | CE EMC compliant, PCB: UL 94 V0 |
| Dimensions (mm) | 48 (H) × 45 (W) × 11 (D) |
| Weight | 13 g |
