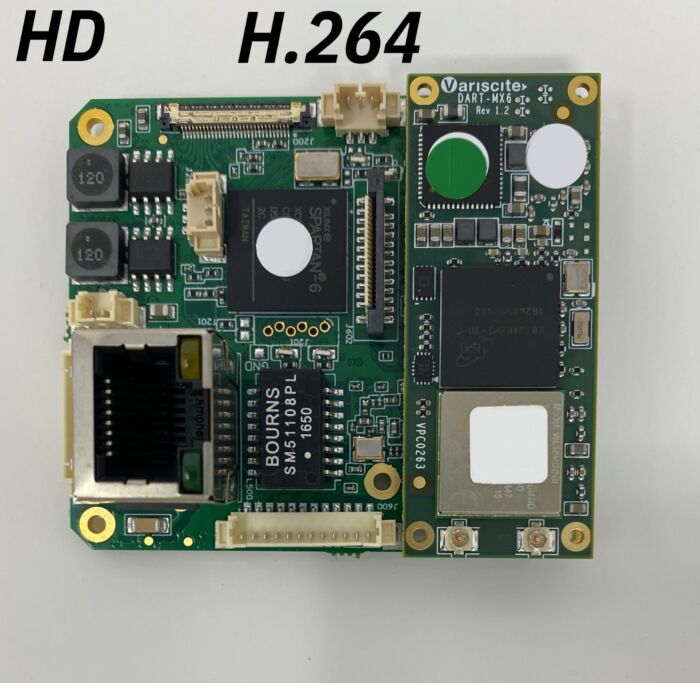

Aegis H.264-RM (H.264RM) Red Mamba IP Video Encoding Board
*In Stock Now Only 1 Left, Replacement Option: Aegis H.264-RM-Neo
The Aegis H.264-RM Red Mamba IP Video Encoding Board is a compact embedded video processing platform designed for low-latency H.264 video encoding and IP streaming applications. Built around the powerful NXP/Freescale i.MX6 ARM Cortex-A9 processor, the board enables reliable 1080p video streaming over Ethernet or WiFi, making it ideal for machine vision, robotics, remote monitoring, and embedded imaging systems.
Supporting LVDS and MIPI camera inputs, ONVIF protocol, and RTSP streaming, the H.264RM module provides a flexible embedded video solution for developers integrating high-quality video streaming into compact systems.
The Aegis H.264-RM (Red Mamba) IP Video Encoding Board is a high-performance embedded video processing module designed for compact imaging systems requiring low-latency video encoding and IP streaming.
Powered by the NXP i.MX6 Quad Core ARM Cortex-A9 processor, the board combines embedded Linux support with hardware-accelerated H.264 video encoding and decoding, enabling efficient video transmission over Ethernet or wireless networks.
Its compact footprint and flexible connectivity options make the H.264RM ideal for embedded vision, robotics, surveillance integration, UAV imaging systems, industrial monitoring, and OEM camera platforms.
The board supports LVDS and MIPI camera interfaces, allowing integration with a wide range of camera sensors while providing reliable network streaming via RTSP and ONVIF protocols.
With built-in RS232, RS485, GPIO, and USB connectivity, the Red Mamba platform offers developers a powerful embedded video processing solution capable of handling real-time video streaming and device control in demanding environments.
Features:
- i.MX6 Quad Core ARM CortexTM -A9 processor
- Embedded Linux
- Low latency h.264 encoding / decoding
- Streaming over IP & WIFI
- ONVIF protocol
- LVDS - MIPI camera inputs
- RS232, RS485
- Storage on SDHD/SDXT Card
- Compact, low power consumption
Applications
- i.MX6 Quad Core ARM CortexTM -A9 processor
- Embedded Vision
- Robotics
- UAV Imaging
- Remote Monitoring
- Industrial Automation
- Machine Vision
- Security Systems
- Mobile Video Systems
- Smart Cameras
- Edge Video Processing
Video encoding / decoding | 1080p60 H.264 Decode, 1080p30 H.264 Encode |
| Streaming | RTSP stream (128 to 20000 kbit/s) |
| LVDS | x1 |
| HDMI | x 1-1.4a (1920x1080) |
| Ethernet | 10/100 Mbit/s (Remote RJ45) |
| Wi-Fi (option over USB port) | 802.11 a/b/g/h + MIMO |
| Micro USB OTG/Host UART | x1 |
| RS485 | x3 up to 3.6Mbps x 1 |
| RS232 | x1 |
| GPIO's | Up to 8 |
| CPU Name/type | NXP/Freescale i.MX6 Dual or Quad ARM CortexTM-A9 Core |
| CPU clock (Max) Memory | Up to 800MHz |
| LPDDR2 RAM | Up to 1GB |
| eMMC NAND Flash (8bit) OS support | Up to 64GB eMMC storage |
| Linux | Yocto, Linux |
| Supply Voltage | 7 to 12VDC |
| Digital I/O voltage | 3.3V |
| Operating Temperature | 0 °C to 60 °C |
| Storage Temperature | -20 °C to 60 °C |
| Dimension | 50mm x 57mm x 15mm (Remote RJ45 connector) |
