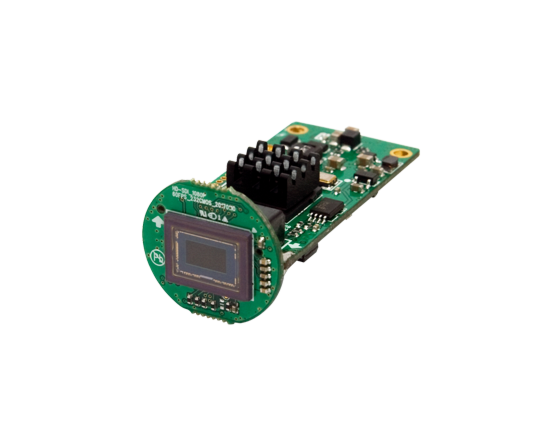

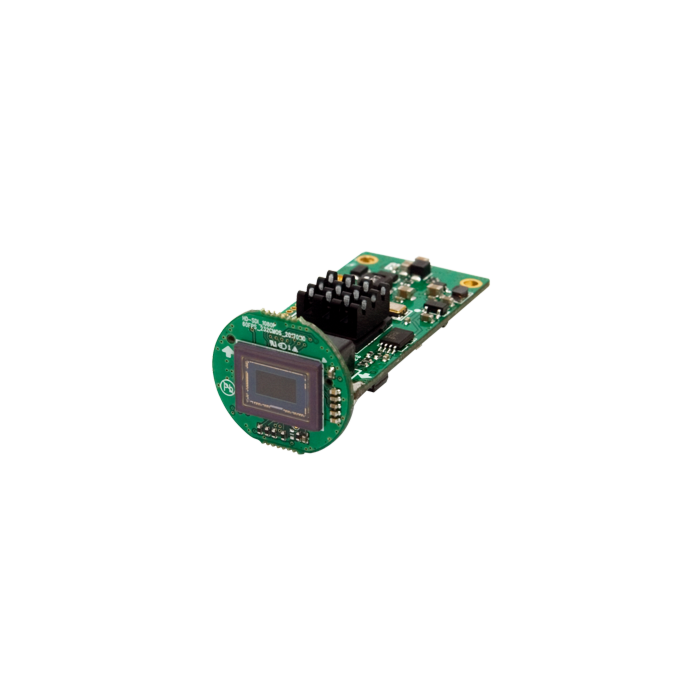

Aegis AEG-HD900 HD Module Camera
SKU
AEG-HD900
Quick Overview
The AEG-HD900 is a compact 1080p60 bullet-style camera module with a 1/2.8" CMOS sensor, supporting HD-SDI/EX-SDI and CVBS outputs, with 3D DNR and defog for clear imaging in challenging conditions.
The Aegis AEG-HD900 (AEGHD900) features a 1/2.8" progressive scan CMOS sensor delivering full HD 1080p video at up to 60fps for clear, real-time imaging. With support for HD-SDI, EX-SDI 1.0, and CVBS outputs, it offers flexible integration into both modern and legacy surveillance systems.
Advanced image processing functions such as 3D digital noise reduction and defog enhance visibility in challenging environments, while its compact module design makes it ideal for bullet-style camera applications in security, robotics, and industrial monitoring.
Features:
- 1/2.8" Progressive Scan Scan CMOS
- Max. 1080p(1920x1080)@60(50)fps
- HD-SDI/EX-SDI 1.0, CVBS Output
- 3D DNR, Defog
- Module for bullet type
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 2.13MP 1945(H) x 1097(V) |
| Max. Video Resolution | HD-SDI: 1080p@60(50)fps HD/EX-SDI V1.0 1080p@30(25)fps / 720p@60fps(50fps) TV out: CVBS NTSC/PAL |
| Lens | Lens and lens holder are not included. |
| Min.Illumination | Day mode: 1.5Lux(F2.0) |
| IR LEDs | N/A |
| IR Range | N/A |
| White Balance | AUTO/Push/Manual |
| Dynamic Range | OFF/BLC/HLC |
| D-WDR(Digital WDR) | N/A |
| Electronic Shutter Speed | Digital Slow Shutter(OFF, 2x~32x)1/30(25), 1/60(50)~1/30,000) |
| AGC (Auto Gain Control) | LOW/MIDDLE/HIGH |
| Day & Night | N/A |
| DNR (Digital Noise Reduction) | 3D-DNR(OFF/LOW/MIDDLE/HIGH) |
| Motion Detection | OFF/ON(4 Zones) |
| Privacy Masking Zone | 16 Zones |
| Image Rotation | OFF/H-FLIP/V-FLIP/HV-FLIP |
| Defog | OFF/LOW/MIDDLE/HIGH |
| Sharpness | Adjustable(0~10) |
| OSD Control | AD KEY 1 Port |
| Language | English,Japanese,Chinese,Chinese(S) |
| Video Output Mode | HD-SDI, EX-SDI V1.0, CVBS |
| IP Grade (Ingress Protection) | N/A |
| Operating Temperature | -10~+50℃ |
| Storage Temperature | -20~+60℃ |
| Dimension (mm) | Φ19.8 X 44.5mm(without Lens holder & Lens) |
| Weight | Approx. 5.7g |
| Power Source | 12VDC(±10%) |
| Power Consumption | Max. 180mA@12VDC |
