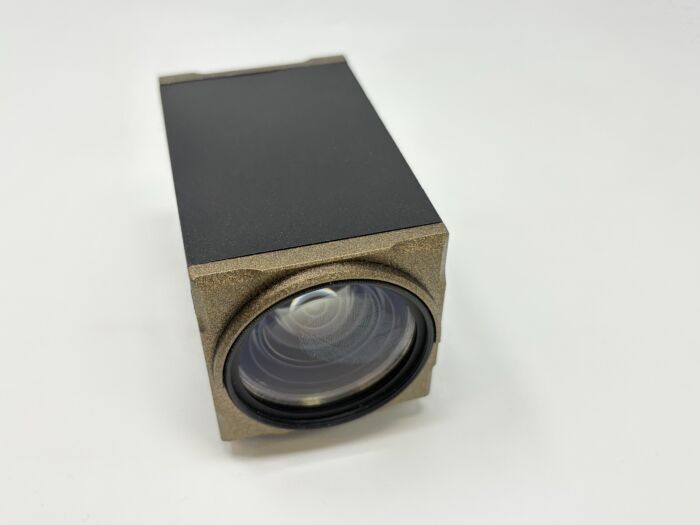

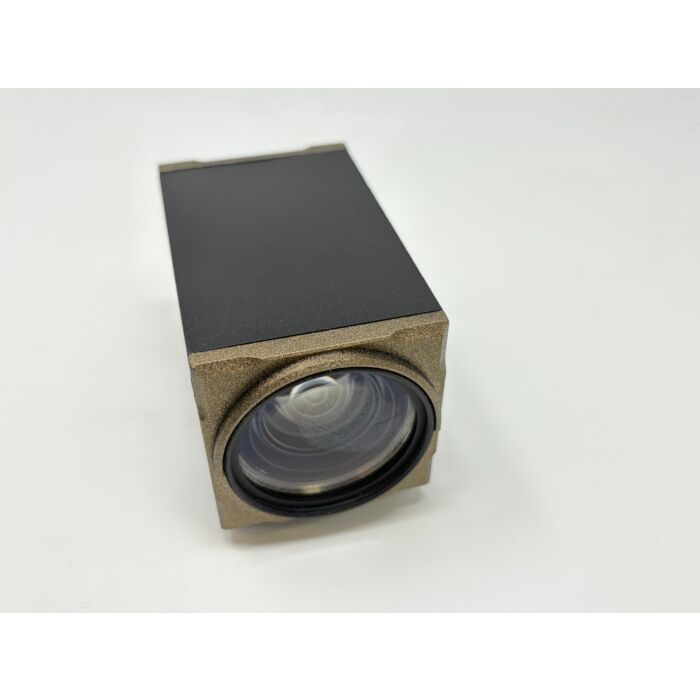

Aegis AEG-10X-GS HD-SDI/EX-SDI Block Camera – 10x Optical Zoom, Global Shutter CMOS, Optional HD-TVI Output
The Aegis AEG-10X-GS is a compact HD-SDI and EX-SDI block camera featuring 10x optical zoom and a 1/3" global shutter CMOS sensor for high-quality HD video capture. Designed for industrial imaging, surveillance systems, and integration into custom camera platforms, the camera supports HD-SDI, EX-SDI, and optional HD-TVI outputs for flexible system compatibility.
With advanced DSP processing, wide dynamic range imaging, and multiple control protocols including VISCA and Pelco, the AEG-10X-GS provides reliable imaging performance in demanding applications requiring precision zoom control and high-definition video output.
The AEG-10X-GS block camera from Aegis Electronic Group is engineered for professional imaging systems requiring reliable HD video transmission and precision optical zoom control. Built around a 1/3-inch global shutter CMOS sensor with 3.2 megapixels, the camera produces clear and stable video output for monitoring, inspection, and machine vision applications.
The camera supports HD-SDI and EX-SDI outputs, allowing high-definition video to be transmitted over coaxial cable across extended distances without compression artifacts. For compatibility with legacy video infrastructure, the system can also support optional HD-TVI output, making it suitable for hybrid surveillance and imaging deployments.
A 10x optical zoom lens enables precise subject framing and detail capture while maintaining optical image quality. Integrated autofocus and manual control modes allow the camera to adapt to dynamic environments and different installation requirements.
Advanced DSP functions such as WDR, digital noise reduction, digital slow shutter, motion detection, and privacy masking provide improved image clarity and flexible system configuration.
With RS-232 serial control and support for VISCA and Pelco-D/P protocols, the AEG-10X-GS integrates easily into PTZ camera systems, robotics platforms, and custom OEM imaging devices.
The compact block camera design makes the AEG10XGS ideal for embedded camera systems requiring reliable HD imaging performance and flexible video output options.
Key Features:
- 10x Optical Zoom Lens with integrated autofocus system
- 1/3" Global Shutter CMOS Sensor delivering high-quality HD imaging
- HD-SDI and EX-SDI video output for long-distance HD transmission
- Optional HD-TVI output for legacy coax infrastructure compatibility
- 1080p video support for high-definition monitoring and imaging
- Wide Dynamic Range (WDR) for challenging lighting conditions
- Digital Slow Shutter and Image Enhancement DSP functions
- RS-232 serial control with VISCA and Pelco-D/P support
- Privacy masking and motion detection capabilities
- Compact block camera design for integration into OEM systems
Applications:
- POV
- Industrial inspection systems
- Robotics and automation imaging
- Traffic monitoring cameras
- UAV and unmanned vehicle vision systems
- Broadcast and live production integration
- Security and surveillance cameras
- Machine vision and factory automation
- PTZ camera platforms and OEM camera systems
| Model | AEG-10X-GS |
| Image Sensor | 1/3" 3.2MP Global Shutter CMOS |
| Effective Pixels | 2064(H) x 1552(V) |
| Video Output | HD-SDI / EX-SDI / CVBS / Optional HD-TVI |
| HD Video Format | 1080p60 / 1080p50 / 1080p30 / 1080p25 |
| Additional Formats | 720p60 / 720p50 / 720p30 / 720p25 |
| Minimum Illumination | 0.03 Lux (Day), 0.01 Lux (Night) |
| S/N Ratio | >52 dB |
| Optical Zoom | 10x |
| Digital Zoom | Up to 12x |
| Focal Length | 4.8 mm – 48.0 mm |
| F-Number | F1.7 (Wide) – F3.1 (Tele) |
| Focus Modes | Auto / Manual / One-Push / Interval |
| Exposure Control | Auto / Iris Priority / Shutter Priority / Manual |
| White Balance | Auto / Indoor / Outdoor / One-Push / Manual |
| Wide Dynamic Range | WDR (Low / Middle / High) |
| Noise Reduction | 2D / 3D Digital Noise Reduction |
| Digital Slow Shutter | Up to 32 fields |
| Motion Detection | 4-Zone Motion Detection |
| Privacy Masking | Up to 8 zones |
| Control Protocol | VISCA, Pelco-D/P |
| Communication | RS-232 TTL +5V (3.3V compatible) |
| Supply Voltage | DC 12V |
| Power Consumption | Approx. 5.1W |
| Dimensions | 43.8 × 47.0 × 63.5 mm |
| Weight | 121 g |
| Operating Temperature | -10°C to 50°C |
| Storage Temperature | -20°C to 60°C |
