Videology 201-IP-462-xC 2MP IP Board Camera with Sony IMX462LQR-C Sensor, RISC-V Processor, H.265/H.264, RTSP, 38×38×6.7mm

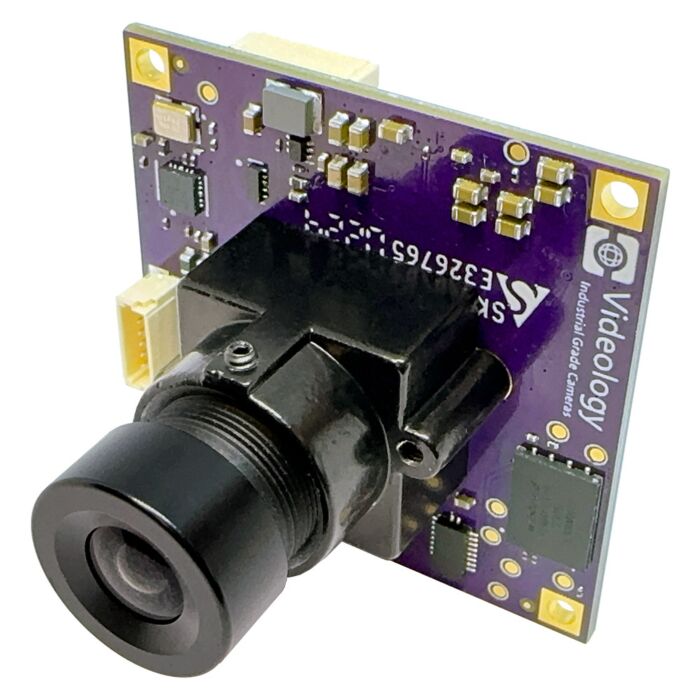

The Videology 201-IP-462-xC is a board-level 2MP color IP camera proudly made in the USA and NDAA compliant, powered by a RISC-V 64-bit processor with an embedded Linux OS, designed for high-performance edge processing. It integrates the Sony IMX462 STARVIS CMOS sensor, delivering full HD 1920×1080 resolution with exceptional low-light sensitivity—ideal for surveillance and machine vision applications.
The camera supports real-time streaming via RTSP and compresses video with H.265, H.264, or MJPEG for efficient bandwidth use. Frame rates up to 60fps (dependent on network configuration) ensure smooth capture even in dynamic environments.
Equipped with 10/100 Mbps Ethernet and onboard magnetics, the 201-IP-462-xC offers stable IP connectivity. It includes a microSD card slot for local storage, 4 GPIO pins for custom I/O, and supports HTTP API control for configuration and automation. Power is supplied via a 12V DC input.
This NDAA-compliant, American-made module is compact and ready for integration into OEM, embedded vision, or industrial automation platforms requiring advanced image processing with minimal system overhead.
Features:
- 2MP Sony IMX462 STARVIS CMOS sensor (1920 x 1080)
- Excellent low-light sensitivity
- Up to 60 frames per second (dependent on network/config)
- RISC-V 64-bit processor with embedded Linux
- Video compression: H.265, H.264, MJPEG
- Real-time RTSP video streaming
- HTTP API support for camera configuration
- 10/100 Mbps Ethernet with onboard magnetics
- 4 GPIO pins for custom I/O control
- MicroSD card support for local storage
- +12V power input
- NDAA compliant
Applications:
- Embedded and OEM vision systems
- Machine vision integration
- Industrial automation
- Robotics vision platforms
- Surveillance and security systems
- Traffic and transportation monitoring
- IoT imaging nodes
- Low-light imaging environments
| Image Sensor | 1/2.8” Sony IMX462LQR-C CMOS |
| Effective Pixels | 1920 x 1080 (FHD) |
| Pixel Size | 2.9μm x 2.9μm |
| Sensitivity | ~0.001 Lux |
| Frame Rate | Up to 60 fps |
| Aspect Ratio | 16:9, 4:3 |
| Shutter Type | Rolling, Auto, Manual |
| Scan Type | Progressive |
| Processor | Quad-core 64-bit RISC-V |
| Operating System | Embedded Linux |
| Compression | H.265, H.264, MJPEG |
| Video Streams | Up to 5 streams |
| Latency | Typical <150ms |
| ISP Features | AWB, AE, WDR, DNR, Motion Detection, Virtual PTZ |
| Network Protocols | RTSP, HTTP API, DHCP, Static IP |
| Storage | MicroSD card slot |
| Ethernet | 10/100 Mbps with onboard magnetics |
| GPIO | 4 GPIOs (via P2 connector) |
| Power Input | +12V DC ±10% |
| Power Consumption | 2.4W (typ.) |
| Operating Temperature | -10°C to 50°C |
| Humidity | 30% ~ 90% RH (operating) |
| Dimensions | 38 x 38 x 6.7 mm (without lens mount) |
| Lens Mount Options | None, Pin Hole (2), M12 (5), CS (8) |
| Compliance | NDAA Compliant |
