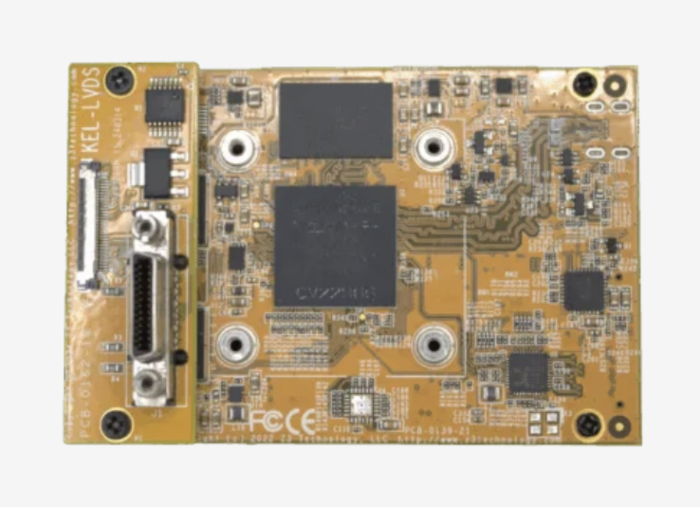

Z3 Technology CamL2-15 Dual-Camera Embedded Video Encoder – H.265/H.264, 1080p60, Camera Link & LVDS Inputs, Thermal/Visible Support, Low Latency, PoE
The NDAA compliant Z3 Technology CamL2-15, proudly made in the USA, is a high-performance H.265/H.264 embedded encoder board built for dual-camera real-time streaming. Supporting Camera Link input up to 85 MHz with 8–16-bit monochrome, RGB, or YUV formats, it also includes a KEL LVDS input for visible and thermal cameras such as Sony, Tamron, FLIR Tau2, Boson+, and DRS modules, plus composite input for legacy sources.
The CamL2-15 delivers 1080p60 and 720p60 dual H.265/H.264 streams, supporting protocols like RTP, RTSP, MPEG‑2 TS, RTMP(S), TSRTP, and SRT for flexible IP transmission. With compact 75 × 50 mm dimensions and 4.5 W typical power draw, it’s engineered for UAV, UGV, robotics, and ISR video systems where SWaP and reliability matter.
Built in America for mission-critical performance, the CamL215 offers micro‑SD/NFS recording, ONVIF and API control, AES 128/192/256 encryption, MISB/STANAG compliance, and AI readiness for secure, low‑bandwidth HD video at the edge.
Features:
- Supports Camera Link (SDR, up to 85 MHz) and KEL LVDS camera inputs
- Dual H.265/H.264 streaming with resolutions up to 1080p60
- Composite, UART, RS-232, serial, and 100 Mbps Ethernet interfaces
- Simultaneous record and stream to micro-SD or network
- Real-time output via RTP, RTSP, MPEG-2 TS, RTMP(S), TSRTP, SRT
- PoE (802.3af/at class 0) and 12V DC input
- Secure control via Web GUI, API, ONVIF, SSH/serial
- AES-128/192/256 encryption, SNMPv2/v3, user-level access
- Live video preview with text/PNG overlay and Pelco RS-485
- STANAG 4609 and MISB 0601/0604 metadata compliant
- Multicast, unicast, and SRT Caller/Listener/Rendezvous support
- Compact 75 x 50 mm, 47g, low 4.5W power use
- AI-ready for edge video analytics and smart sensor applications
Applications:
- Defense ISR video solutions
- UAV, UGV, USV streaming and telemetry
- Industrial machine vision
- Robotic vision systems
- Remote surveillance & perimeter monitoring
- Aerospace imaging systems
- Dual-spectrum (visible + thermal) camera processing
- Secure IP streaming over SRT in rugged environments
| Camera1 Interface | Camera Link via SDR Connector |
|---|---|
| Camera Link Format | Base Configuration |
| Pixel Clock | Up to 85 MHz |
| Pixel Formats | 8–16 Bit Monochrome, RGB, YUV |
| Camera2 Interface | LVDS via KEL Connector (Thermal or Visible) |
| Composite Camera Support | Yes |
| Additional Interfaces | 100 Mbps Ethernet, RS-232, UART, Serial, Composite |
| Video Codecs | H.265, H.264, MJPEG |
| Recording | Micro-SD or Network File System |
| Resolutions | 1080p60, 720p60, NTSC/PAL, VGA, CIF, QVGA |
| Output Formats | RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, TSRTP, SRT |
| Security | AES-128/192/256, SNMPv2/v3, User Authentication |
| Control Interfaces | Web GUI, API, ONVIF, SSH/Serial |
| SRT Modes | Caller, Listener, Rendezvous |
| Overlay Options | Text/PNG via Web GUI or HTTP(S) API |
| Metadata Support | KLV, MISB 0601, MISB 0604 |
| Standards Compliance | STANAG 4609, NDAA, TAA, FCC, CE |
| AI Readiness | Edge Analytics Support |
| Board Size | 75 x 50 mm (2.95 x 1.97 in) |
| Board Weight | 47g |
| Power Consumption | 4.5W (typical dual H.265 encoding) |
| Power Supply | 12V DC or PoE 802.3af/at Class 0 |
