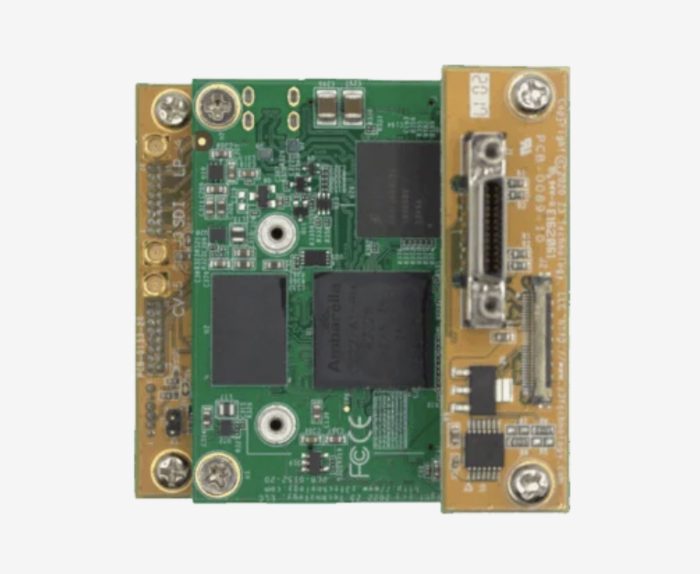

Z3 Technology CamL-15 H.265/H.264 Dual-Camera Encoder – Camera Link & SDI Input, 1080p60, Low Latency Streaming, PoE, SRT, MISB/STANAG, ISR-Ready
The Z3 Technology Z3 CamL‑15 is a compact, low‑latency dual‑input video encoder Made in the USA and fully NDAA compliant, delivering secure, real‑time video performance for ISR, UAV, defense, and security surveillance applications. This rugged encoder supports H.265/HEVC, H.264, and MJPEG compression, ensuring efficient, high‑quality video streaming even in bandwidth‑constrained environments.
Designed for versatility, the Z3 CamL15 supports both Camera Link (SDR) and 3G‑SDI camera interfaces, with resolutions up to 1080p60. Operators can stream simultaneously over RTP, RTSP, SRT, RTMP/RTMPS, and other industry‑standard protocols while maintaining low‑latency performance crucial for real‑time situational awareness.
Built for rugged and embedded environments, the CamL‑15 offers dual‑channel encoding, PoE or 12V DC power options, and flexible recording to micro‑SD card or network file systems. Advanced network and security features include AES‑128/192/256 encryption, SNMPv2/v3, and support for STANAG 4609 and MISB 0601/0604 metadata standards.
Engineered with long‑term reliability in mind, the Z3 CamL‑15 enables API and HTTP/HTTPS GUI control, multiple configurable serial ports, and Pelco D control via RS‑485. Its AI‑ready architecture supports edge analytics and intelligent video processing at the source — helping integrators and OEMs accelerate deployment for mission‑critical operations.
Features:
- Dual input support: Camera Link (SDR) and SDI interfaces
- H.265/HEVC, H.264, and MJPEG compression
- Resolutions up to 1080p60, 720p60, NTSC/PAL, VGA, QVGA
- Pixel formats: Monochrome, RGB, YUV (8–16-bit)
- Pixel clock frequency up to 85 MHz
- Simultaneous encode + record to Micro-SD or NFS
- Streaming protocols: RTP, RTSP, RTMP, SRT, MPEG-2 TS
- AES-128/192/256 encryption and SNMPv2/v3
- MISB 0601/0604 and STANAG 4609 compliant
- Compact board size: 58 x 58 mm, only 65g
- Low power: 4.5W typical during dual-camera encoding
- Power options: 12V DC or PoE (802.3af/at)
- RS-232, UART, Serial, RS-485 Pelco D supported
- PIP or dual output displays with live preview
- Text/PNG overlay via GUI or API
- AI-ready platform for edge analytics
- Control via HTTP/HTTPS GUI, API, ONVIF, or SSH
Applications:
- ISR (Intelligence, Surveillance, Reconnaissance)
- UAV and unmanned ground systems
- Thermal/visible dual-sensor camera platforms
- PTZ security camera mounts
- Tactical surveillance and perimeter monitoring
- Military and aerospace video systems
- Border control and reconnaissance
- Industrial inspection and automation
- Remote situational awareness systems
- Video telemetry with serial command pass-through
| Technical | |
|---|---|
| Camera1 Interfaces | Cameralink via SDR Connector |
| Cameralink Formats | Cameralink Base Support |
| Pixel Clock Frequency | up to 85 MHz |
| Monochrome, RGB, and YUV Pixel Formats | 8-16 Bits |
| Camera2 Interfaces | SDI |
| Additional Interfaces | 100 Megabit Ethernet, RS-232, UART and Serial |
| Video Codecs | H.265, H.264 and MJPEG |
| Recording Networks | File System or Micro-SD |
| Encoding Resolutions | 1080p (up to 60fps), 720p (up to 60fps), NTSC/PAL, VGA, CIF and QVGA |
| Output Formats | RTP, RTSP, MPEG-2 TS, RTMP, RTMPS, TSRTP and SRT |
| Features | |
| Low Latency, Low Power | |
| Cyber Secure Features Available, SNMPv2, SNMPv3 and the ability to turn off unneeded services | |
| User Level Authentication Settings Available | |
| Simultaneous encode of H.265/HEVC and H.264 | |
| Record to Micro-SD or Network File System | |
| Control via HTTP/HTTPS web GUI, API, ONVIF or SSH/Serial | |
| SRT Modes Supported: Caller, Listener, Rendezvous, SRT Encryption, AES-128, 192, 256 | |
| Live Video Preview in the Web GUI | |
| Multicast and Unicast Support | |
| Text Overlay via Web GUI or custom placement of Text or PNG via HTTP/S API | |
| RS-485 Pelco D Support, 3 configurable serial ports | |
| Dual output displays or PIP Mode Support | |
| STANAG 4609 Compliant | |
| Embedded KLV Metadata Support via SDI or Serial, MISB 0601 Compliant | |
| High Precision Timestamps Across Multiple Streams, MISB 0604 Compliant | |
| AI Ready for on the edge analytics | |
| Specifications | |
| Encoder Board Size | 58 x 58 mm (2.28 x 2.28 in) |
| Encoder Board Weight | 65g |
| Power Consumption | 4.5W typical while encoding 2 cameras in H.265 |
| Power Supply | 12V DC or PoE 802.3af/at class 0 |
