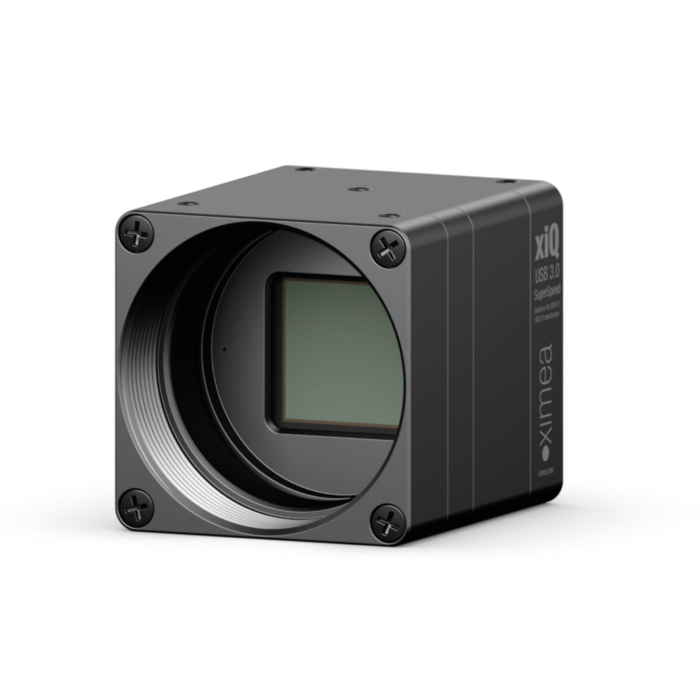

Ximea MQ013RG-ON-S7 1.3MP NIR USB3 Industrial Camera with onsemi PYTHON1300 CMOS Global Shutter, 210 FPS, 26.4 x 26.4 x 32.9 mm
The Ximea MQ013RG-ON-S7 industrial camera delivers exceptional imaging performance with its 1.3 Megapixel onsemi PYTHON1300 CMOS sensor, optimized for NIR sensitivity and capable of capturing high-speed motion with a global shutter at up to 210 frames per second at full 1280 x 1024 resolution. The 1/2" sensor features 4.8 µm pixel size, a 7.9 mm diagonal, and a 6.1 x 4.9 mm active area, delivering outstanding detail and minimal distortion even during fast motion capture. Its spectral sensitivity ranges from 350–1050 nm, with a peak quantum efficiency of 54% at 550 nm, making it ideal for low-light and NIR applications.
This USB3 camera provides high-speed 5 Gbit/s data transfer via a USB 3.1 Gen1 Micro-B connector with screw lock, includes a 10-bit RAW output, and supports on-board hot pixel correction for up to 5000 points. Advanced imaging features include ROI/AOI, binning, skipping, auto exposure, auto white balance, and HDR imaging. It supports field firmware upgrades, is GenICam and USB3 Vision compliant, and offers a compact, lightweight build (26.4 x 26.4 x 32.9 mm, 30 g) for easy integration in space-constrained environments. Ideal for applications requiring speed, precision, and consistency in harsh conditions.
Features:
- 1.3 MP onsemi PYTHON1300 CMOS sensor
- Global shutter for distortion-free imaging
- NIR sensitivity with 350–1050 nm spectral range
- Up to 210 FPS at full resolution (1280 x 1024)
- USB 3.1 Gen1 interface (5 Gbit/s data rate)
- C-Mount, with CS and M12 options
- 10-bit RAW output, 58.2 dB dynamic range
- Compact design: 26.4 × 26.4 × 32.9 mm, 30 g
- Hot pixel correction, HDR, Auto gain/exposure
- Host-based image processing & ROI support
- Bus-powered: 1.58 W power consumption
- GenICam and USB3 Vision Compliant
Applications:
- Machine vision and quality inspection
- 3D scanning and facial recognition
- VR/AR motion tracking
- High-speed sports broadcasting
- Medical imaging and microscopy
- Drone-based aerial mapping
- Low-latency video streaming
- Robotics and factory automation
| Sensor Properties | Resolution | 1.3 MPix |
| Sensor resolution | 1280 x 1024 | |
| Sensor vendor | onsemi | |
| Sensor model | PYTHON1300 | |
| Sensor type | NIR | |
| Sensor technology | CMOS | |
| Sensor size | 1/2" | |
| Sensor active area | 6.1 x 4.9 mm | |
| Sensor diagonal | 7.9 mm | |
| Pixel size | 4.8 µm | |
| Shutter type | Global shutter | |
| Camera Properties | Frame rate | 210 FPS |
| Bits | 10 bits | |
| On-chip downsampling | 1x1, 2x2 | |
| On-chip decimation | 1x1, 2x2 | |
| Interface | USB3 | |
| Data interface speed | 5 Gbit/s | |
| Data connector type | USB3 Micro-B | |
| GPIO count | Inputs: 1, Outputs: 1 | |
| Exposure minimum | 100 µs | |
| Exposure maximum | 1 s | |
| Power consumption | 1.58 Watt | |
| Heat dissipation | Natural convection | |
| Sensor cooling | No | |
| Special features | Single board | |
| EMVA 1288 Results | Dynamic range | 58.2 dB |
| Full well capacity | 10000 e- | |
| Saturation capacity | 7872.7 e- | |
| Readout noise | 9 e- | |
| Signal to noise ratio | 39.3 dB | |
| Peak QE | 54% @ 550 nm | |
| Gain analog max | 18 dB | |
| Spectral Range | 350 - 1050 nm | |
| Mechanical Properties | Lens mount | C-mount |
