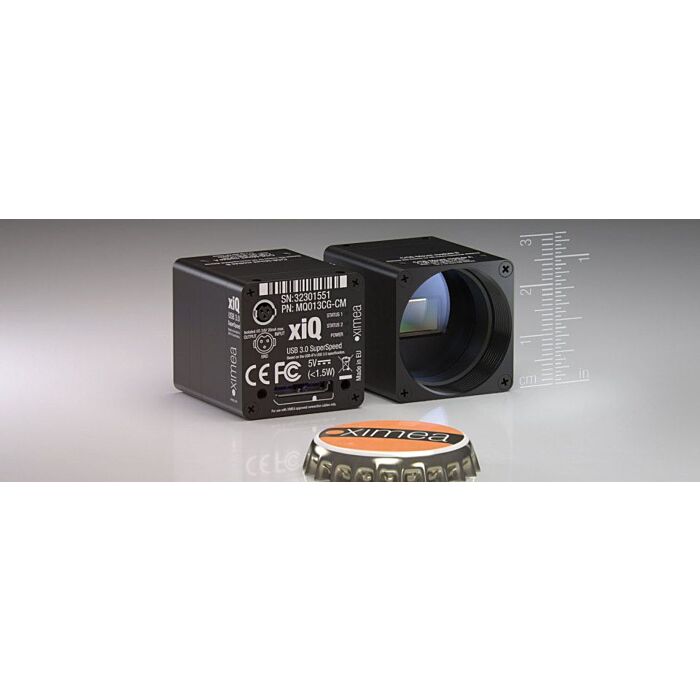

Ximea MQ013MG-ON Ultra compact USB 3.0 Industrial B/W Camera
SKU
MQ013MG-ON-Ximea
Quick Overview
*Product will be discontinued, please call to inquire, replacement coming soon: MQ013MG-ON-S7
Ultra compact USB 3.0 Industrial B/W Camera
Features:
| Image Sensor | VITA 1300 |
| Resolution | 1280 x 1024 |
| Pixel µm | 4.8 |
| ADC bits | 10 |
| Frames per sec | 150 |
| DR dB | 60 |
| Optical size | 1/2" |
| Diagonal mm | 7.9 |
| Power W | 1.5 |
| Sensor Technology | CMOS, Global shutter |
| Acquisition Modes | Continuous, software trigger, hardware trigger |
| Partial Image Readout | ROI, Skipping and Binning modes supported (check hardware manual for details) |
| Image data formats | 8, 10 or 12 bit RAW pixel data |
| Data conversion | programmable hardware LUT 12->8 (*) |
| Color image processing | Host based de-Bayering, sharpening, Gamma, color matrix, true color CMS |
| Hot/blemish pixels correction | On camera storage of up to 5000 pixel coordinates, host assisted correction |
| Auto adjustments | Auto white balance, auto gain, auto exposure |
| Flat field corrections | Host assisted pixel level shading and lens corrections |
| Image Data and Control Interface | USB 3.0 standard Micro B with screw lock threads compliant to USB3 Vision standard |
| General Purpose I/O | 1x opto-isolated input, 1x opto-isolated output, power LED, 2x LED software programmable |
| Signal conditioning | Programmable debouncing time |
| Synchronization | Hardware trigger input, software trigger, exposure strobe output, busy output |
| Housing and lens mount | Standard C mount. Available options are CS mount, S(M12) mount and board level |
| Power requirements | 1 to 1.8W, supplied via USB 3.0 interface |
| Dimensions | 26.4 x 26.4 x 26.5 mm (C-mount version) |
| Weight | 27 grams (C-mount version) |
| Environment | Operating 0°C to 50°C on housing, RH 80% non-condensing, -30°C to 60°C storage |
| Conformity | CE, FCC, RoHS, GenICam/GenTL, USB 3.0 SuperSpeed |
| Opertating systems | Windows 7 SP1 (x86 and x64), Linux Ubuntu |
| Minimumm host hardware | Intel i3 3.0GHz, 2GB RAM, NVIDIA or Radeon 128MB, Motherboard with PCIe x1 Gen 2 slot, compatible USB 3.0 host adapter |
| Software support | xiAPI SDK, adapters and drivers for various image processing packages |
| Firmware updates | Field firmware update |
| Board Level | Available in board level model. |
