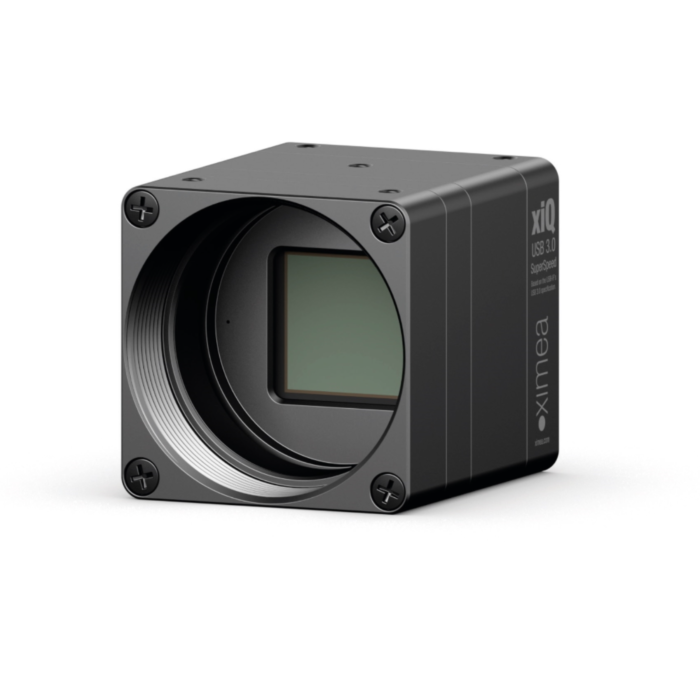

Ximea MQ013CG-ON-S7 1.3MP Color USB3 Industrial Camera with onsemi PYTHON1300 CMOS Global Shutter, 210 FPS, 26.4 x 26.4 x 32.9 mm
The Ximea MQ013CG-ON-S7 is a high-performance industrial camera equipped with a 1.3 Megapixel (1280 x 1024) color CMOS PYTHON1300 sensor from onsemi. It features a global shutter for distortion-free capture of fast-moving objects and delivers an impressive frame rate of up to 210 FPS at full resolution. With a 4.8 µm pixel size, 1/2" optical format, and a 7.9 mm diagonal, it delivers precise image quality across a broad spectral range of 350 – 1050 nm. The camera outputs 8, 10, or 12-bit RAW pixel data and supports downsampling and decimation (1x1, 2x2) for optimized imaging performance.
The MQ013CG-ON-S7 connects via USB 3.1 Gen1 and delivers data rates up to 5 Gbit/s through a Micro-B connector. It has onboard support for auto exposure, auto gain, HDR, de-Bayering, flat field correction, LUTs, ROI/AOI, and hot pixel correction. It draws just 1.58 W, is passively cooled, and operates in ambient temperatures from 0°C to 50°C. Compact at just 26.4 x 26.4 x 32.9 mm and weighing only 30 g, it’s designed for embedded systems, factory automation, machine vision, VR/AR, scientific imaging, and portable inspection tools.
Features:
- 1.3 MP color CMOS onsemi PYTHON1300 sensor
- Global shutter for distortion-free imaging
- 210 FPS at full 1280 x 1024 resolution
- 4.8 µm pixel size, 1/2" optical format
- USB 3.1 Gen1 interface, 5 Gbit/s transfer rate
- 10-bit output with ROI, binning, and decimation
- Natural convection cooled, 1.58 W power usage
- Compact 26 x 26 mm board-level form factor
- Programmable GPIO, hardware/software triggers
- Auto exposure, HDR, hot pixel correction
- Spectral sensitivity from 350 to 1050 nm
- C-mount lens with board-level and S-mount options
Applications:
- Embedded and compact machine vision systems
- High-speed motion capture and analysis
- 3D and facial recognition scanning systems
- Scientific microscopy and ophthalmology
- AR/VR systems and head-mounted cameras
- UAV/UAS for photogrammetry and mapping
- Industrial inspection and metrology
- Semiconductor and electronics inspection
- Robotics and automation in manufacturing
- Portable vision tools and mini robotic arms
- Broadcasting and instant sports replay systems
| Resolution | 1.3 MPix |
| Sensor Resolution | 1280 x 1024 |
| Sensor Vendor | onsemi |
| Sensor Model | PYTHON1300 |
| Sensor Type | Color |
| Sensor Technology | CMOS |
| Sensor Size | 1/2" |
| Sensor Active Area | 6.1 x 4.9 mm |
| Sensor Diagonal | 7.9 mm |
| Pixel Size | 4.8 µm |
| Shutter Type | Global Shutter |
| Frame Rate | 210 FPS |
| Bits | 10 bits |
| On-Chip Downsampling | 1x1, 2x2 |
| On-Chip Decimation | 1x1, 2x2 |
| Interface | USB3 |
| Data Interface Speed | 5 Gbit/s |
| Data Connector Type | USB3 Micro-B |
| GPIO Count | Inputs: 1, Outputs: 1 |
| Exposure Minimum | 100 µs |
| Exposure Maximum | 1 s |
| Power Consumption | 1.58 Watt |
| Heat Dissipation | Natural Convection |
| Sensor Cooling | No |
| Special Features | Single Board |
| Dynamic Range | 58.3 dB |
| Full Well Capacity | 10000 e⁻ |
| Saturation Capacity | 7821.3 e⁻ |
| Readout Noise | 8.9 e⁻ |
| Signal to Noise Ratio | 39.0 dB |
| Gain Analog Max | 18 dB |
| Spectral Range | 350 - 1050 nm |
| Lens Mount | C-mount |
| Enclosure Type | Standard Housing |
| Dimensions (W x H x D) | 26.4 x 26.4 x 32.9 mm |
| Mass (Weight) | 30 g |
| Ambient Operating Temperature | 0 - 50 °C |
| Storage Temperature | -25 - 60 °C |
| Sensor Technology | CMOS |
| Acquisition Modes | Global Shutter |
| Digital Output | 8, 10, 12-bit RAW pixel data |
| USB3 Interface | USB 3.1 Gen1 Micro-B with screw lock or flat ribbon connector |
| General Purpose I/O | 1x opto-isolated input, 1x opto-isolated output, power LED, 2x programmable LEDs |
| Synchronization | HW/SW trigger input, strobe output, busy output |
| Power Requirements | Bus powered via USB3 |
| Lens Mount Options | C-mount standard, CS-mount and S-mount (M12) adapter available |
| Partial Image Readout | ROI / AOI; Skipping and Binning supported |
| Image Processing | De-Bayering, sharpening, gamma, color matrix, true color CMS, LUT, hue, saturation, white balance |
| Hot Pixel Correction | 5000 pixel coordinates stored on-camera; host-assisted correction |
| Auto Adjustments | Auto white balance, auto gain, auto exposure, HDR |
| Flat Field Corrections | Host-assisted shading and lens corrections |
| Buffer Memory | 256 KB in CYUSB3035 controller; additional small buffers in FPGA |
| Signal Conditioning | Programmable debouncing time |
| SDK / API | C++, C#, Python |
| Software Support | One SDK for all cameras; compatible with image processing libraries |
| Viewer Programs | CamTool Viewer |
| Firmware Updates | Field updates via xiCOP tool |
| Operating Systems | Windows 10/7 (x86/x64), Linux Ubuntu, MacOS 10.8+ |
| Minimum Host Hardware | Intel i3 3.0 GHz, 2 GB RAM, 128 MB NVIDIA/Radeon, PCIe x1 Gen 2, USB 3.0 adapter |
| Operating Environment | 0°C to 50°C, RH 80% non-condensing |
| Storage Environment | -30°C to 70°C |
| Ingress Protection | IP40 |
| Certifications | CE, FCC, RoHS, USB3 Vision, GenICam/GenTL |
