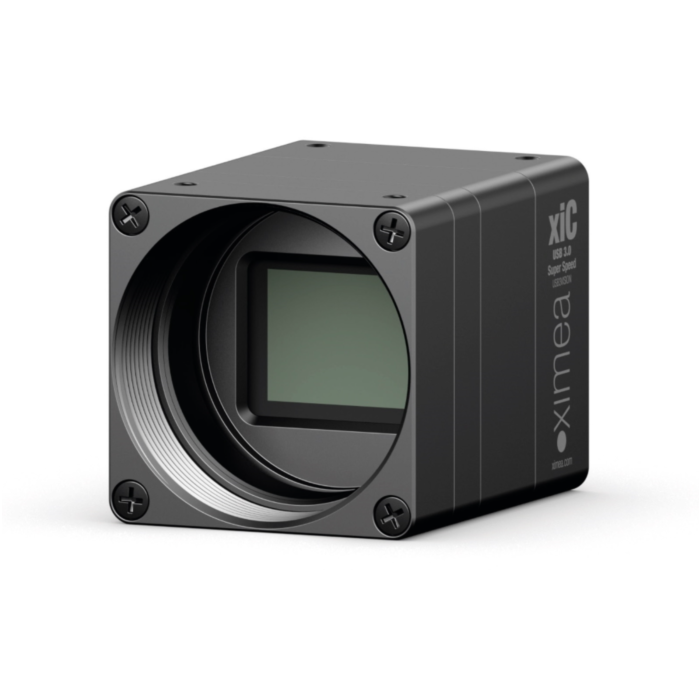

Ximea MC050ZG-SY-UB 5MP Monochrome USB3 Polarized Camera Sony IMX250 CMOS Global Shutter 76 FPS 26.4 x 26.4 x 41.9 mm
The Ximea MC050ZG-SY-UB is a high-performance industrial camera featuring the 5 Megapixel SONY IMX250 Polarized CMOS sensor with Pregius™ global shutter technology. This advanced 2/3" monochrome sensor delivers sharp, distortion-free imaging at a resolution of 2464 x 2056 pixels and a fast frame rate of up to 76 FPS. With a pixel size of 3.45 µm, full well capacity of 9800 e-, and analog gain up to 24 dB, the camera provides excellent sensitivity and dynamic range for precision-critical applications. The sensor's spectral range from 400–1000 nm and Polarsens technology make it ideal for material analysis, glare reduction, and advanced vision applications.
The camera uses a USB 3.1 Gen1 interface with a 5 Gbit/s data rate and outputs 8, 10, or 12-bit RAW pixel data. It supports hardware and software triggering, ROI, binning, and host-assisted image processing features like de-Bayering, LUT, gamma correction, and flat-field correction. With a compact 26.4 x 26.4 x 41.9 mm aluminum housing and C-Mount lens interface, the MC050ZG-SY-UB integrates easily into tight spaces and embedded systems. Power-efficient at only 3.1 W via USB, and equipped with GPIO (3 inputs, 3 outputs), this camera is purpose-built for machine vision, medical imaging, scientific research, 3D scanning, and factory automation.
Features:
- 5 MP resolution with 2464 x 2056 pixel output
- SONY IMX250 Monochrome Polarized CMOS sensor
- Pregius™ global shutter for motion-free capture
- 3.45 µm pixel size, 11.1 mm sensor diagonal
- 76 FPS at full resolution
- USB 3.1 Gen1 interface, 5 Gbit/s bandwidth
- Output: 8 / 10 / 12-bit RAW formats
- Compact 26.4 x 26.4 x 41.9 mm housing
- GPIO: 3 inputs, 3 outputs
- Natural convection cooling, 3.1 W power
- ROI, binning, skipping, LUT, de-Bayering
- C-mount lens support
- CE, FCC, RoHS, GenICam, USB3 Vision compliant
Applications:
- Glare-free industrial inspection and defect analysis
- Scientific and biomedical imaging
- Polarized imaging in material sciences
- 3D scanning, facial and eye tracking
- Robotic vision, industrial automation
- UAV photogrammetry and aerial mapping
- VR/AR and high-definition motion capture
- Semiconductor and flat panel inspection
- Low latency streaming for education and broadcasting
| Resolution | 5 MPix |
| Sensor resolution | 2464 x 2056 |
| Sensor vendor | SONY |
| Sensor model | IMX250 Polarized |
| Sensor type | Monochrome |
| Sensor technology | CMOS |
| Sensor size | 2/3" |
| Sensor active area | 8.5 x 7.1 mm |
| Sensor diagonal | 11.1 mm |
| Pixel size | 3.45 µm |
| Shutter type | Global shutter |
| Frame rate | 76 FPS |
| Bits | 8, 10, 12 bits |
| Interface | USB3 |
| Data interface speed | 5 Gbit/s |
| Data connector type | USB3 Micro-B |
| GPIO count | Inputs: 3, Outputs: 3 |
| Exposure minimum | 19 µs |
| Exposure maximum | 30 s |
| Power consumption | 3.1 Watt |
| Heat dissipation | Natural convection, Optional Heatsink |
| Sensor cooling | No |
| Special features | Polarsens |
| Full well Capacity | 9800 e- |
| Gain analog max | 24 dB |
| Spectral Range | 400 - 1000 nm |
| Lens mount | C-mount |
| Enclosure type | Standard housing |
| Physical dimensions (WHD) | 26.4 x 26.4 x 41.9 mm |
| Mass - weight | 37.5 gram |
| Ambient operating temperature | 0 - 50 °C |
| Storage Temperature | -25 - 60 °C |
