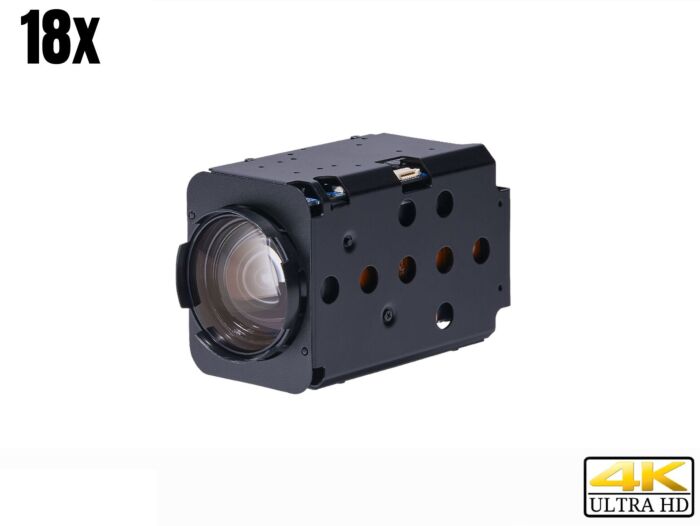

Wonwoo MC-S185U 4MP 4K 18x Zoom Block Camera Module with 9 MP Sony CMOS sensor
The NDAA compliant Wonwoo MC-S185U is a high-performance 4K 8MP camera module designed for superior video capture and surveillance applications. Equipped with a 1/1.8" 9MP Sony CMOS sensor, it delivers crisp, clear images in 2160P at 30fps, with additional options for 1440p, 1080p, and 720p at 30fps. The module features an impressive 18x optical zoom (6.8mm~120mm) and 32x digital zoom, ensuring detailed shots even at long distances. The lens has an F1.61 aperture at wide-angle and F4.13 at telephoto, enabling exceptional low-light performance.
Key features include Wide Dynamic Range (WDR) for balanced lighting, Day & Night (ICR) functionality for round-the-clock performance, and advanced Digital Noise Reduction (2D+3D) for enhanced image clarity. The Digital Image Stabilization technology ensures steady, jitter-free video, while the Privacy Mask Function allows for selective area masking.
The module also supports Intelligent Motion Detection for precise event tracking and a Defog function to improve visibility in challenging weather conditions. Compatible with both VISCA and Pelco-D/P protocols, it offers flexible integration with a wide range of systems. Video output options include HDMI and CVBS for versatile connectivity.
Features:
- 1/1.8" 9MP Sony CMOS Sensor
- 2160P 30fps, 1440p 30fps, 1080p 30fps, 720p 30fps
- 18x Optical Zoom(6.8mm~120mm) & 32x Digital Zoom
- F1.61(wide) ~ F4.13(tele)
- Day & Night(ICR)
- Wide Dynamic Range
- Digital Noise Reduction(2D+3D)
- Digital Image Stabilization
- Privacy Mask Function
- High Light Compensation
- Intelligent Motion Detection
- Defog Function
- Supports VISCA, Pelco-D/P Protocol
- Video Out : HDMI, CVBS
Applications:
- Surveillance Systems
- Remote Monitoring
- Outdoor Security Cameras
- Traffic Monitoring
- Smart City Solutions
- Retail Security
- Industrial Inspection
- Warehouse Surveillance
- Automated Tracking
- CCTV Integration
| Image Sensor | 1/1.8" Sony CMOS Sensor |
| Total Pixels | 3,952(H) x 2,320(V) = 9.17M Pixels |
| Active Pixels | 3,864(H) x 2,176(V) = 8.41M Pixels |
| Scanning System | Progressive Scan |
| Sync. System | Internal |
| Resolution | 2160p/30(25)fps, 1440p/30(25)fps, 1080p/30(25)fps, 720p/30(25)fps |
| Min. Illumination | Color(1/30s, 72dB) : 0.012lux , BW(1/30s, 72dB) : 0.0019lux Color DSS(1/1s, 72dB) : 0.0012lux , BW DSS(1/1s, 72dB) : 0.00019lux |
| Video Output | Digital : HDMI Analog SD : CVBS |
| S/N Ratio | more than 50dB (AGC off) |
| Lens Type | 18x Day & Night Zoom Lens |
| Zoom Ratio | Optical 18x, Digital 32x |
| Focal Length | f = 6.8mm ~ 120.0mm |
| Aperture Ratio | F1.61 (wide) ~ F4.13 (tele) |
| Angle Of View(D, H, V) | Wide 65.3° 58.5° 35.0° Tele 4.2° 3.7° 2.1° |
| AF Mode | Auto / One Push / Manual |
| Min. Distance | 0.5 / 1.5 / 3.0 / 5.0 / 10.0 m |
| Lens Refresh | One Push / 1 ~ 10Days |
| Digital Zoom | 32X |
| D/N | Yes |
| IR Cut Filter | Yes |
| Power Input | DC 12V / 24V (±10%) |
| Power Consumption | Max. 8W |
| Operating Temp. | -10°C ~ +50°C |
| Storage Temp. | -20°C ~ +60°C |
| Dimensions | Φ121mm x 158mm (D x H) |
| Weight | Approx. 1,230g |
